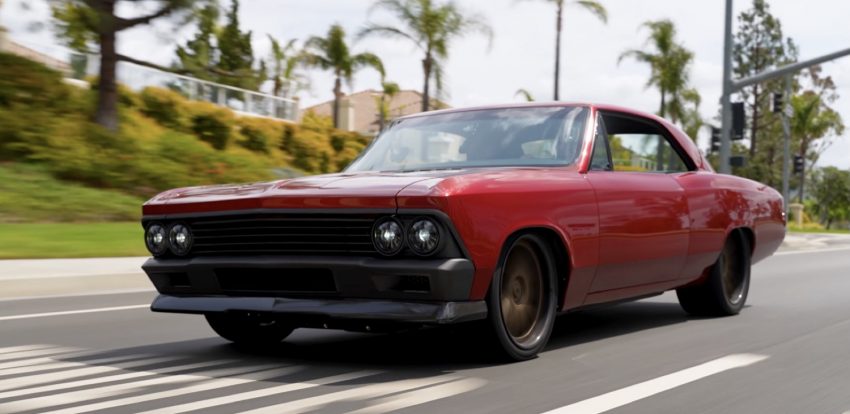

Sometimes, you just have to restart from a blank slate. That’s what happened to this 1966 Chevelle, affectionately nicknamed “Phoenix.” This top-tier restomod is the result of a meticulous four-year build, and now, it’s clean and mean, packing a twin-turbo LSX and looking absolutely gorgeous, as featured in the following video.
This car originally started as a Malibu with some questionable modifications, including partial chassis and body work. Once purchased by the current owner, the project was essentially sent back to square one, with some noteworthy names tacked on for good measure. Among them is renowned designer Sean Smith, who provided the renderings to guide the project’s design.

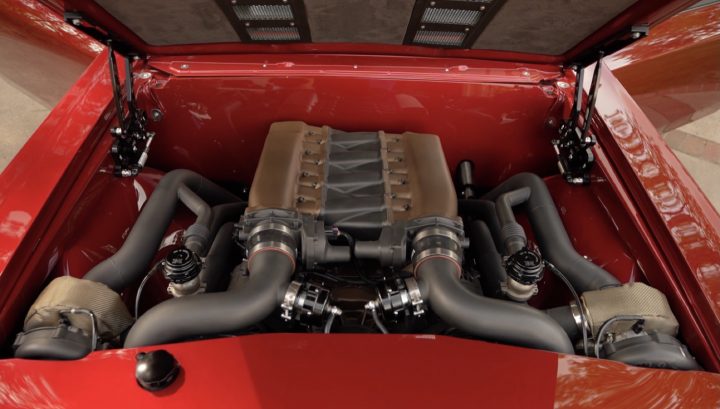

Under the hood, the Chevelle now packs a 376 LSX V8 with twin Comp T3 turbos and an Edelbrock cross-ram intake manifold, plus tucked coil packs and a beautifully clean engine bay. The owner opted for relatively modest boost levels, set at about six psi on 91-octane fuel to deliver around 550 horsepower at the rear wheels. An air-to-water intercooler system with a trunk-mounted reservoir keeps intake temps in check, while a Borla exhaust system and the turbos themselves help keep noise levels tame. The powerplant connects to a 4L75E automatic transmission, with a Curry nine-inch rear end and RideTech suspension with a four-link setup out back.

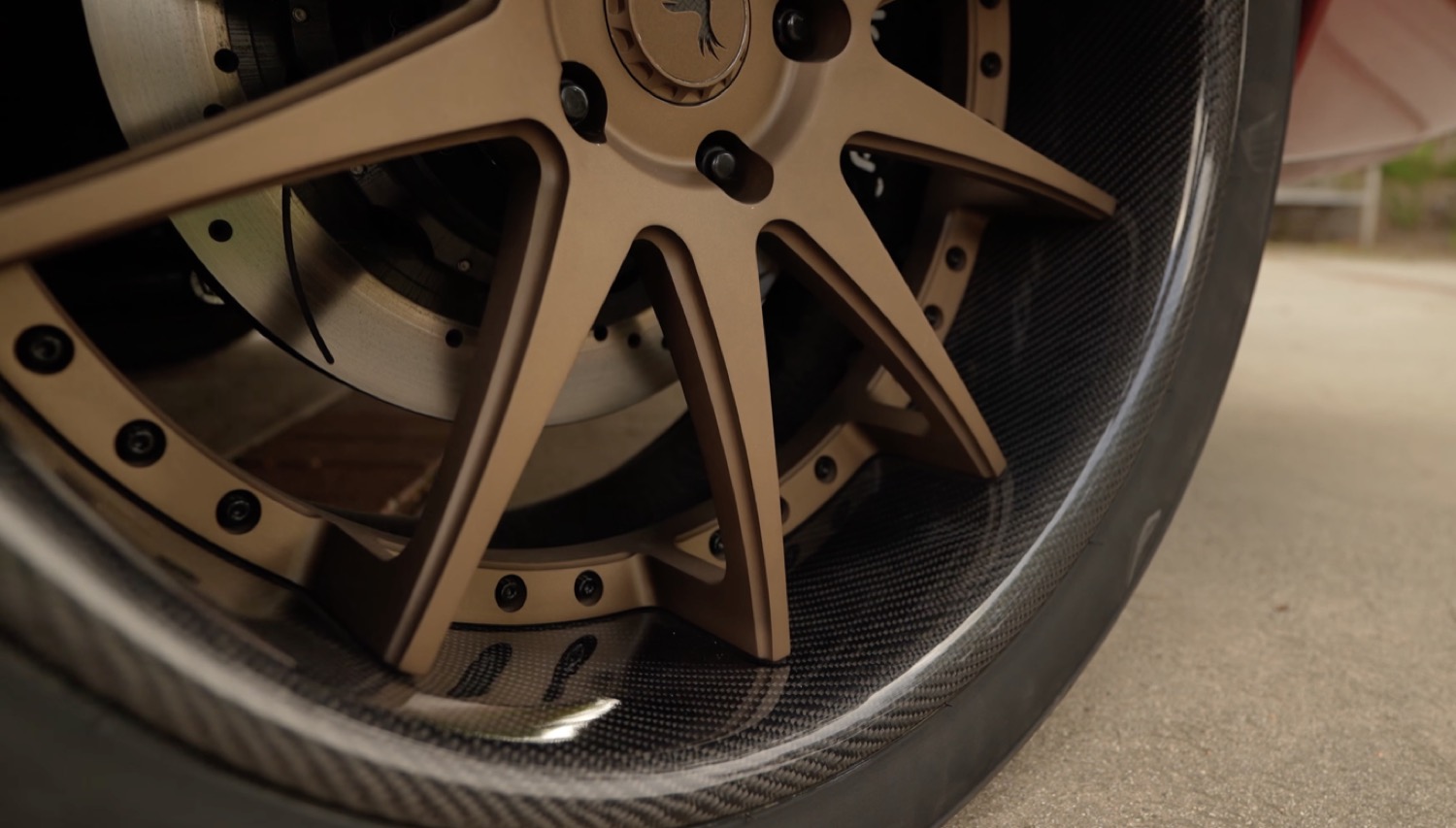

The car rides on Avant Garde F420 three-piece wheels with carbon barrels, staggered at 19 inches up front and 20 inches out back, wrapped in 245 and 325-series tires, respectively. Behind the wheels are Wilwood brakes with six-piston calipers up front and four-piston units in the rear, paired with a boosted brake system hidden behind the firewall.

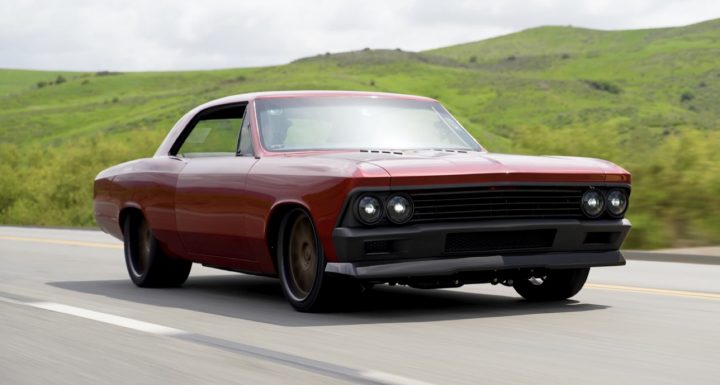

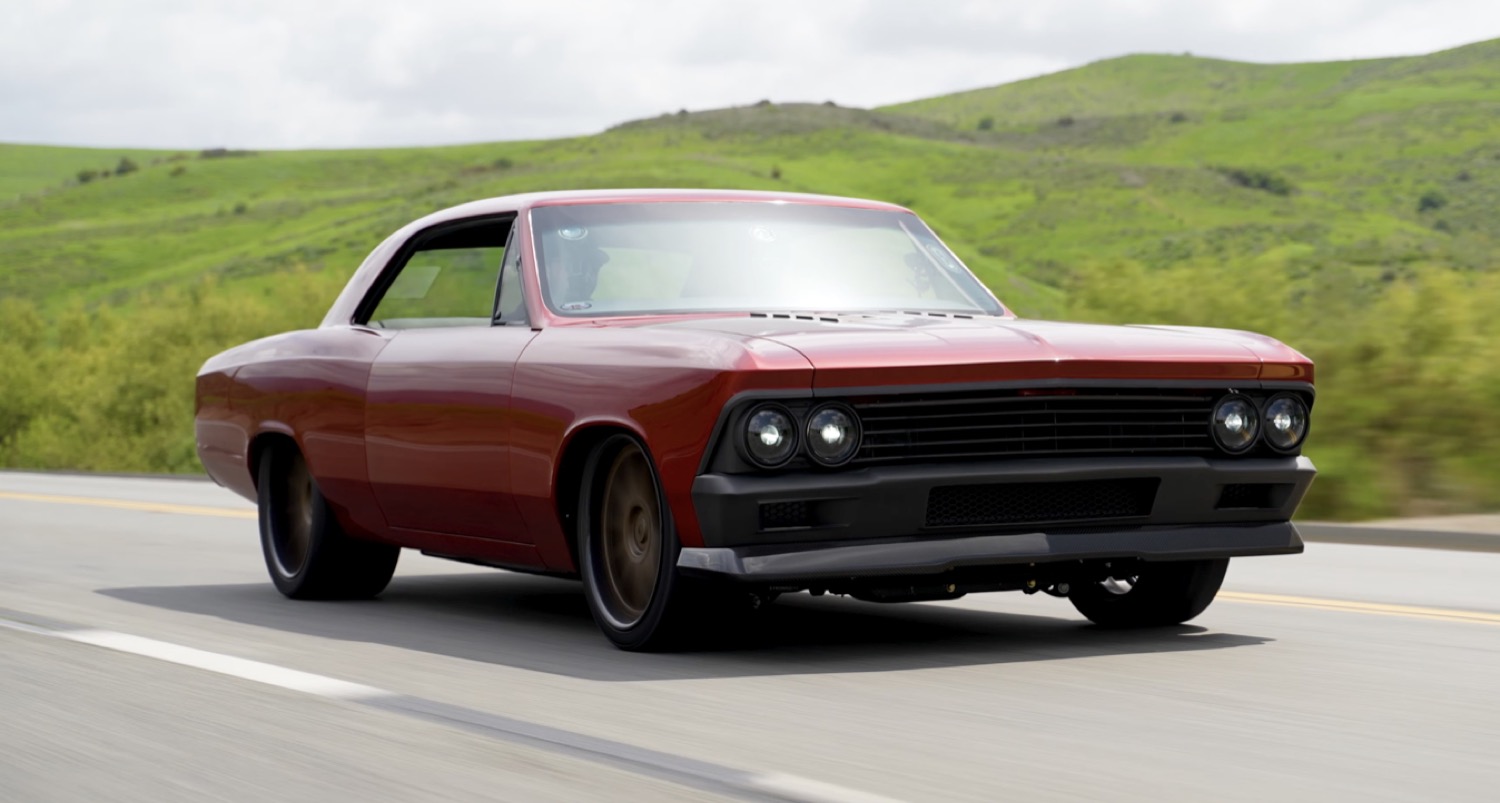

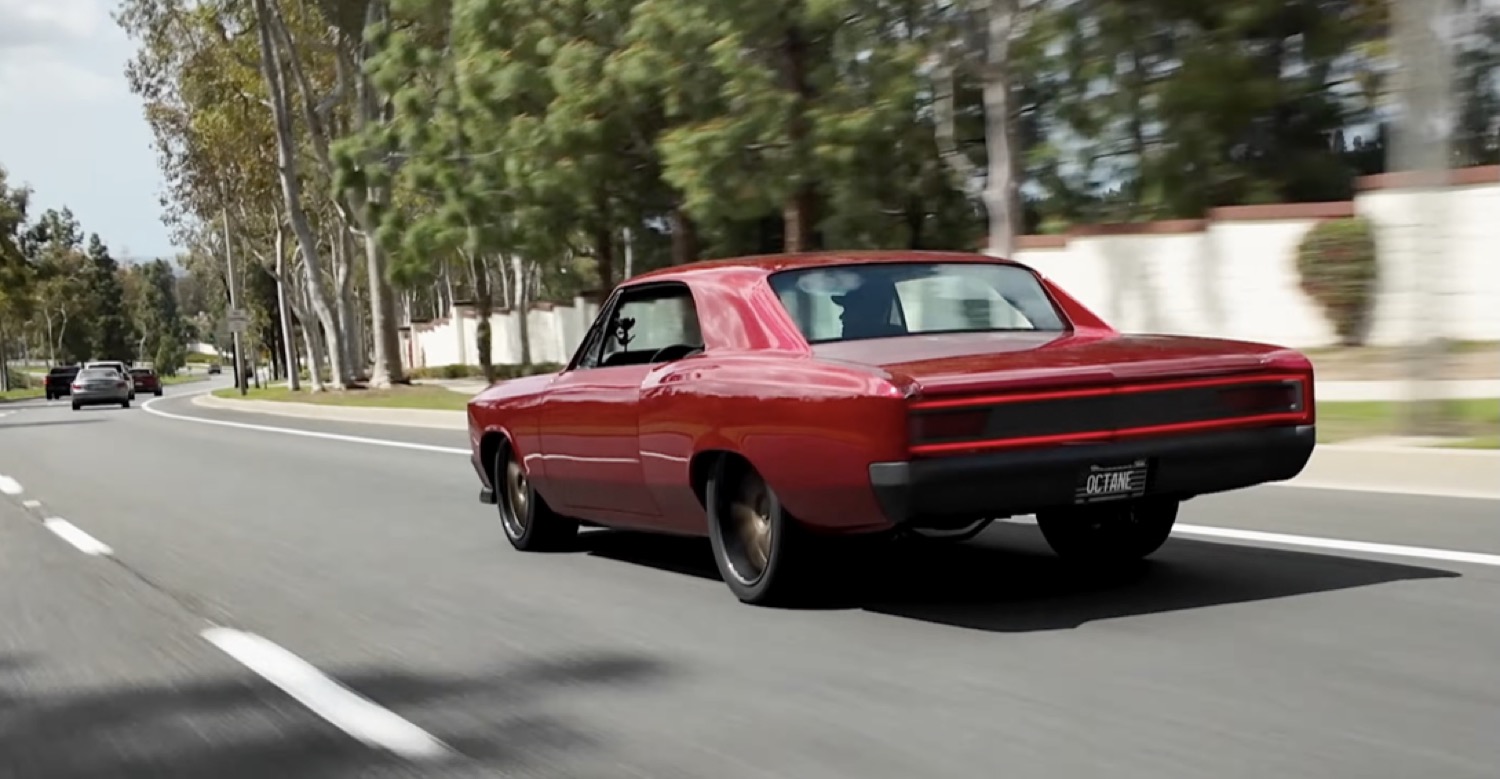

Visually, the car is deceptively simple, but full of subtle custom touches, including extended and reshaped quarters, a handmade rear bumper, custom billet hood vents, a laser-cut grille, and a bespoke front splitter. The body has been shaved of mirrors, drip rails, and door handles for a sleek, flush look.

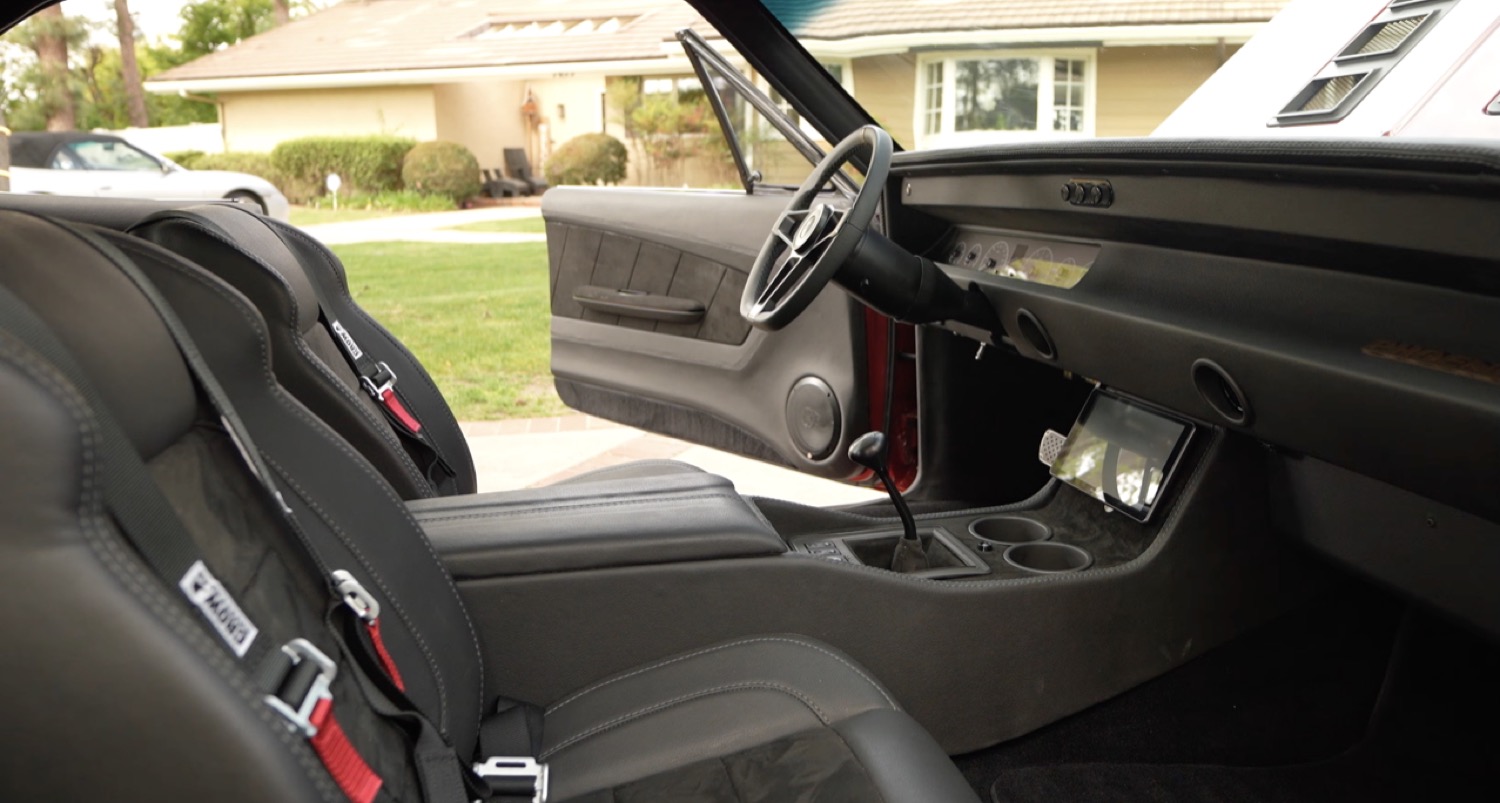

Inside, the cabin features a fully custom dash, Dakota Digital gauges, a harness bar, AC, and power windows, plus upholstery by Stitched Envy.
This Chevelle is absolutely dripping with tasty details, so hit play to see them all for yourself:
