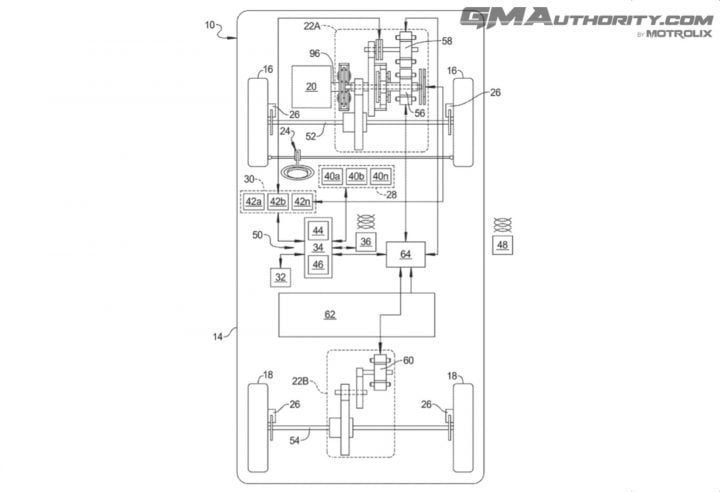

GM has recently obtained a patent for a new hybrid propulsion system, giving hints at what we might see from future GM hybrid models. It was filed through the United States Patent and Trademark Office (USPTO) with patent number 12,311,767 B1. The patent is dated May 27th, 2025, but it was first filed in October of 2024. The inventor is Alan G. Holmes of Clarkston, Michigan, implying an intention to use this new hybrid system for the North American market.
There are many hybrid powertrains already on the market, so what makes this one special? “The present disclosure relates to a hybrid propulsion system for a vehicle that provides full electric all-wheel-drive operation and avoids losses associated with [the] use of a large electric motor for a hybrid transaxle,” reads the introduction of the patent filing.
This hybrid system aims to improve regenerative braking efficiency and power distribution while optimizing battery charging and discharging strategies to maximize fuel economy.
“Hybrid propulsion systems incorporating traditional internal combustion engines in unison with electric motors are becoming more prevalent in automotive vehicles,” the filing continues. “The demands of hybrid-electric vehicles require [the] use of electric motors that can provide torque and power needed to power the vehicle in various operating conditions.”

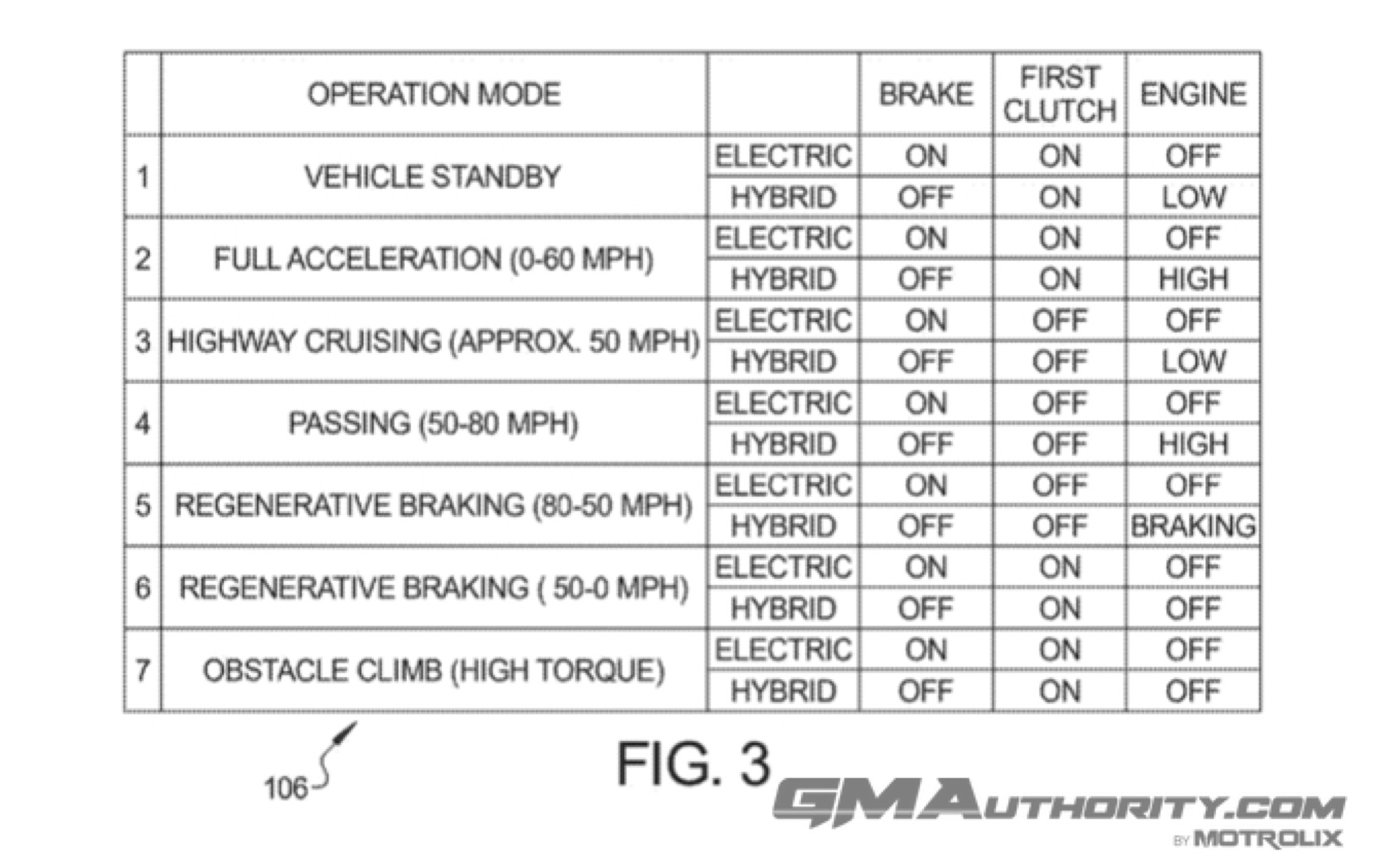

This powertrain is specifically a HEV setup with all-wheel drive, and the patent filing shows a list of operating modes. There are modes for vehicle standby, full acceleration, highway cruising, passing, and regenerative braking, but the one that caught our eye is labeled “Obstacle Climb (High Torque).” This implies a use intended for off-roading, similar to the Terrain mode already found in some GM trucks and SUVs.

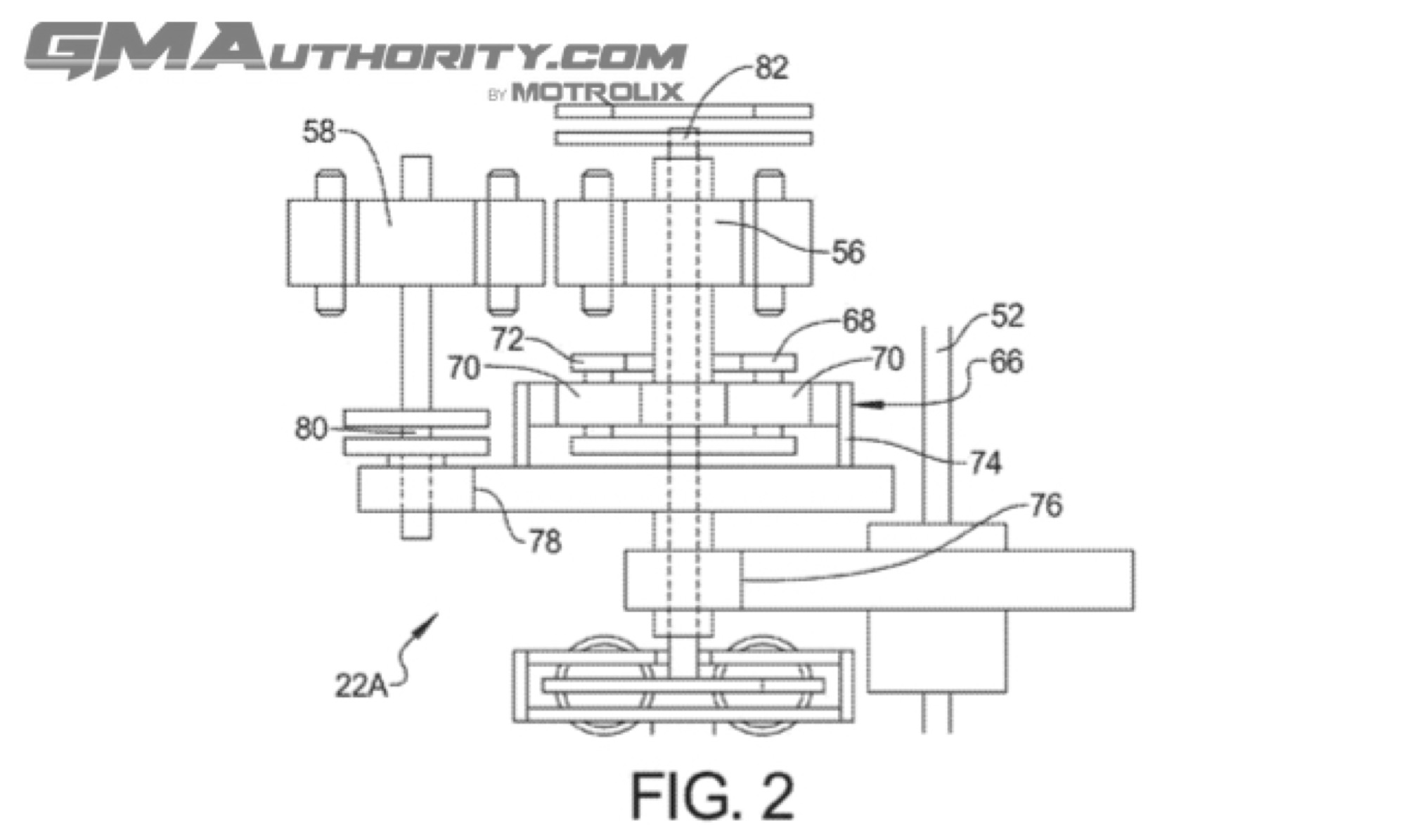

The patent goes on to say, “There is a need for a new and improved hybrid propulsion system that allows an otherwise large electric motor of a hybrid transaxle [to] be selectively disconnected, allowing the electric motor to have a larger gear ratio and thus, be smaller than would otherwise be possible, without including in the hybrid transaxle the number, size, and weight of components necessary to provide multiple gear ratios or a variable drive ratio for the electric motor.” The packaging of this hybrid system could be compact enough for use in smaller vehicles, like compact or subcompact crossovers, and possibly even sedans and hatchbacks, rather than just big and tall trucks and SUVs.
GM has previously announced that new PHEV models will be introduced to the U.S. market as soon as 2027, and this patent filing implies that HEV models are also in the works.
