GM has filed a patent application for a glovebox with a pull-out tray table. The filing was made under patent number US 2025/0136005 A1 with the United States Patent and Trademark Office (USPTO), and was filed on December 26th, 2023. The filing was published on May 1st, 2025, and lists Shuguang Chen from Shanghai, China as the inventor.

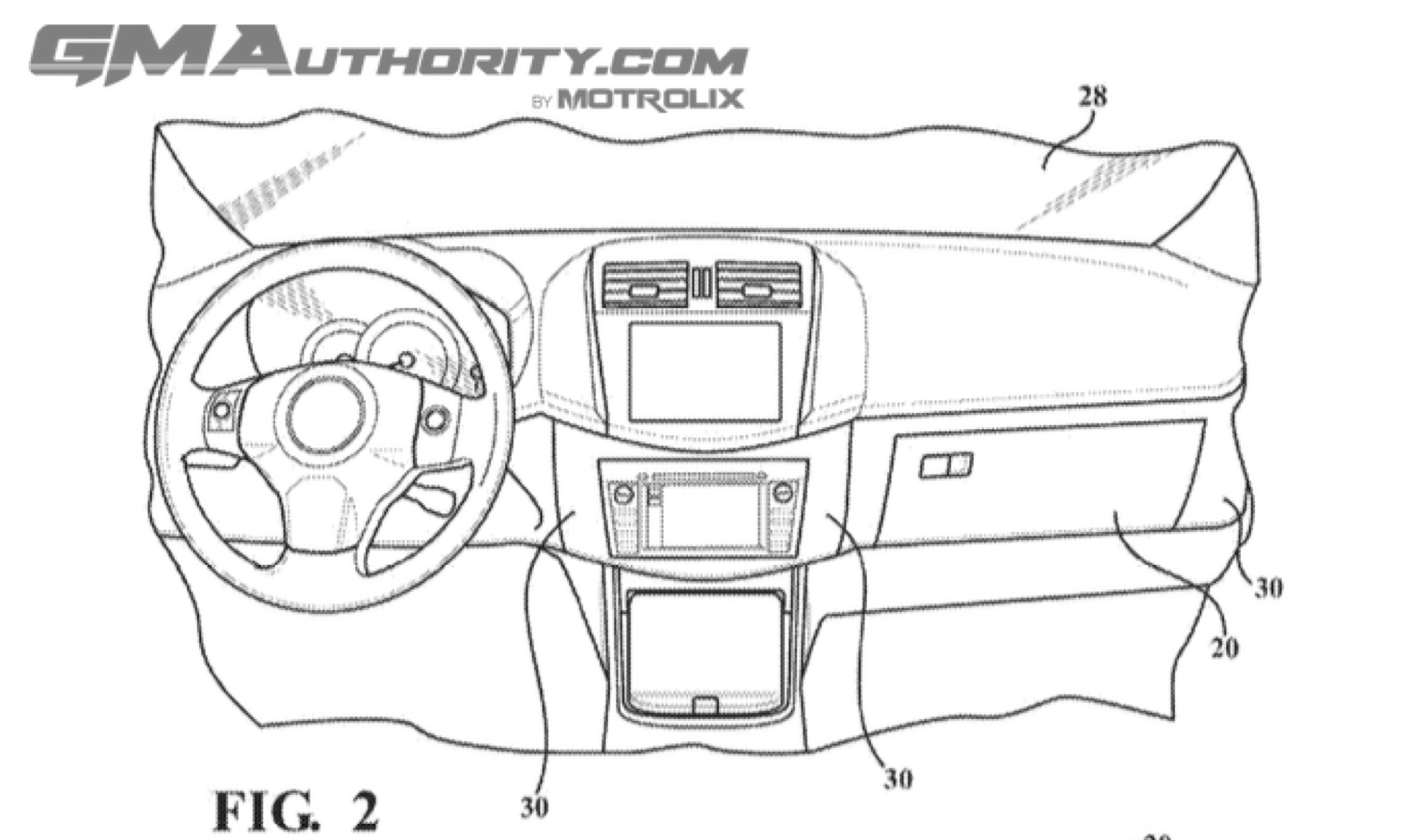

The GM patent application describes a vehicle glovebox that incorporates a built-in, stowable tray that can be pulled out and used as a small table or work surface for the front passenger. The design is aimed at providing enhanced convenience and comfort, especially on long trips.

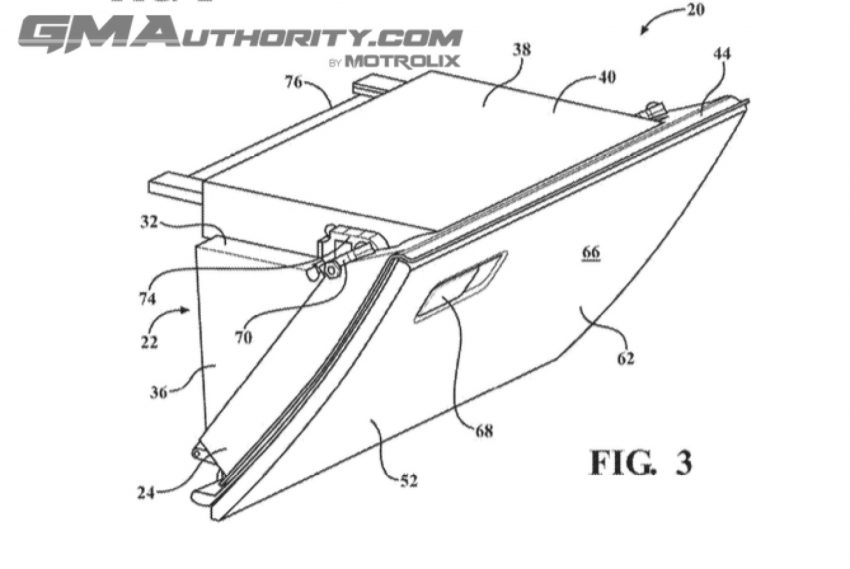

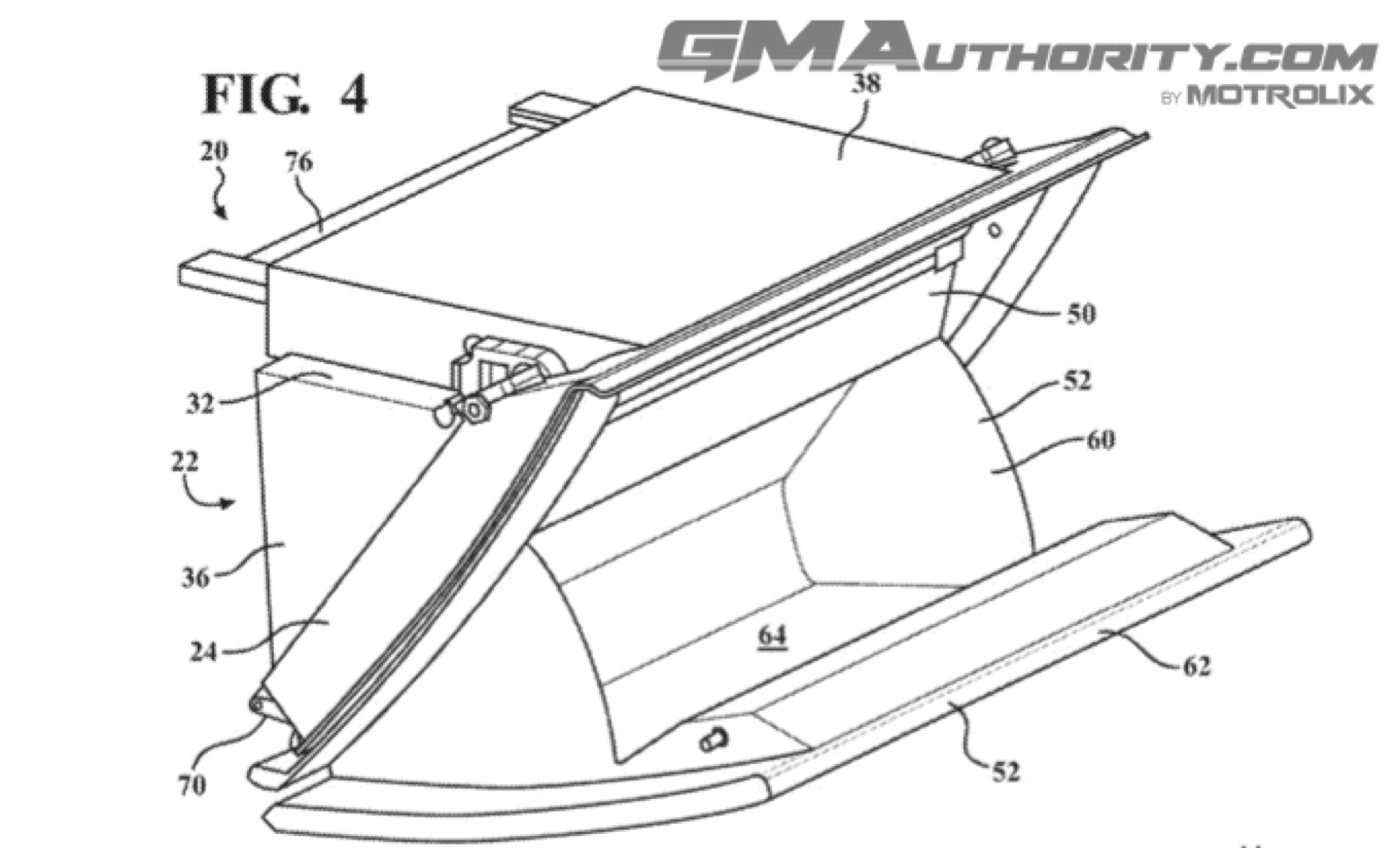

The GM glovebox design includes a storage bin mounted inside a frame. The bin can move by shifting up and down between two positions inside the dashboard (a lower retracted position and a raised upper position) allowing access to the tray table. The bin can also move rotationally, with the front door of the glovebox rotating open to allow access to a storage compartment, just like a traditional glovebox.

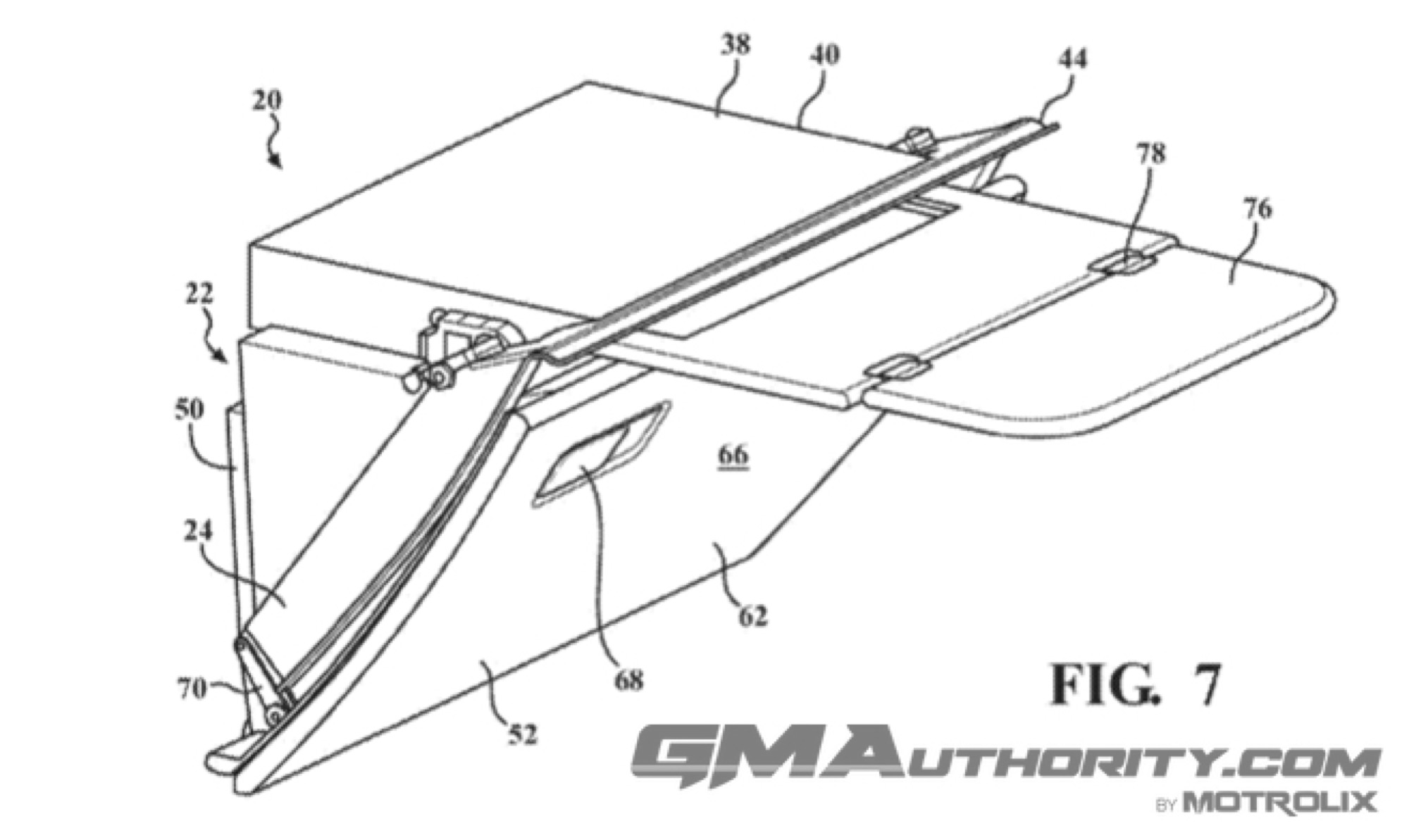

Stored inside glovebox is a tray table, which slides between a stored position and an extended position to provide a flat surface for the front passenger. In some designs, the tray can also fold in half to save space and unfold when needed to create a larger usable surface.
The movement of both the storage bin and the tray can be done manually or automatically, depending on the design in question. Some versions include electric motors and user-activated buttons to extend or retract the storage bin and tray. The GM design also uses special linkages, like a four-bar link, to control the motion of the storage components and ensure smooth, reliable operation.
This glovebox-tray system is designed to fit into the vehicle’s dashboard without taking up extra space. It also offers extra functionality for passengers who might want to eat, work, or use a tablet while on the road. When not in use, the tray is hidden and secured inside the glovebox.
