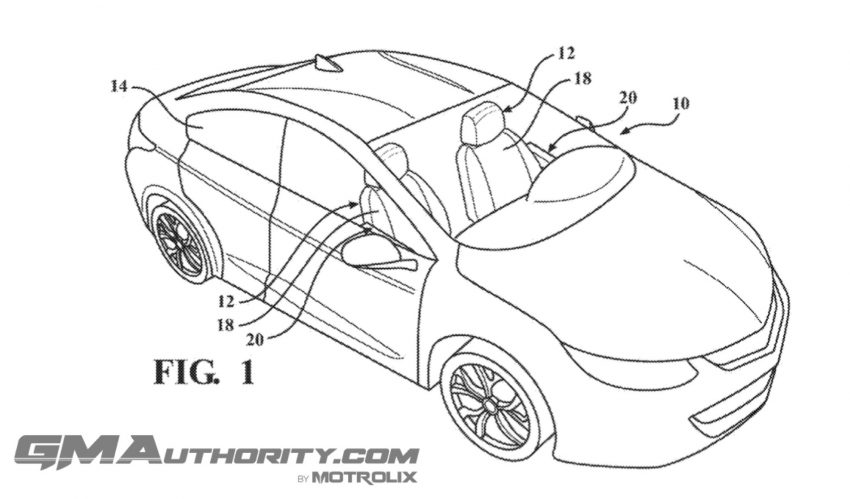

GM has filed a patent application for a power-operated seat armrest system. The application was assigned patent number US 2025/0091494 A1 with the United States Patent and Trademark Office (USPTO) and was published on March 20th, 2025. The GM patent application was originally submitted on September 18th, 2023, and lists several Michigan-based engineers as the inventors, including Srujan Nelakuditi, George W. Wade III, Rami Z. Sayed, and Kamilo Susman.

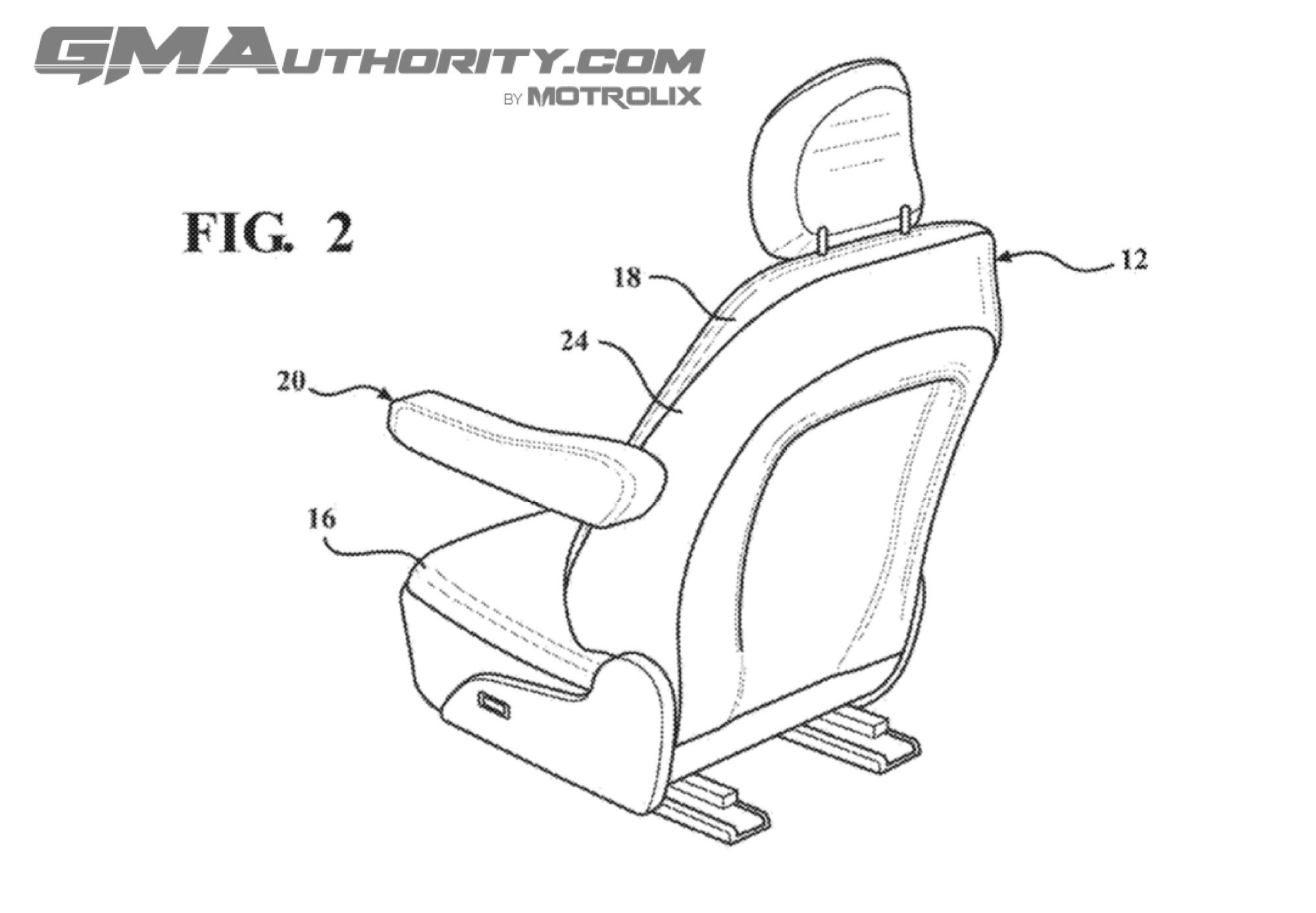

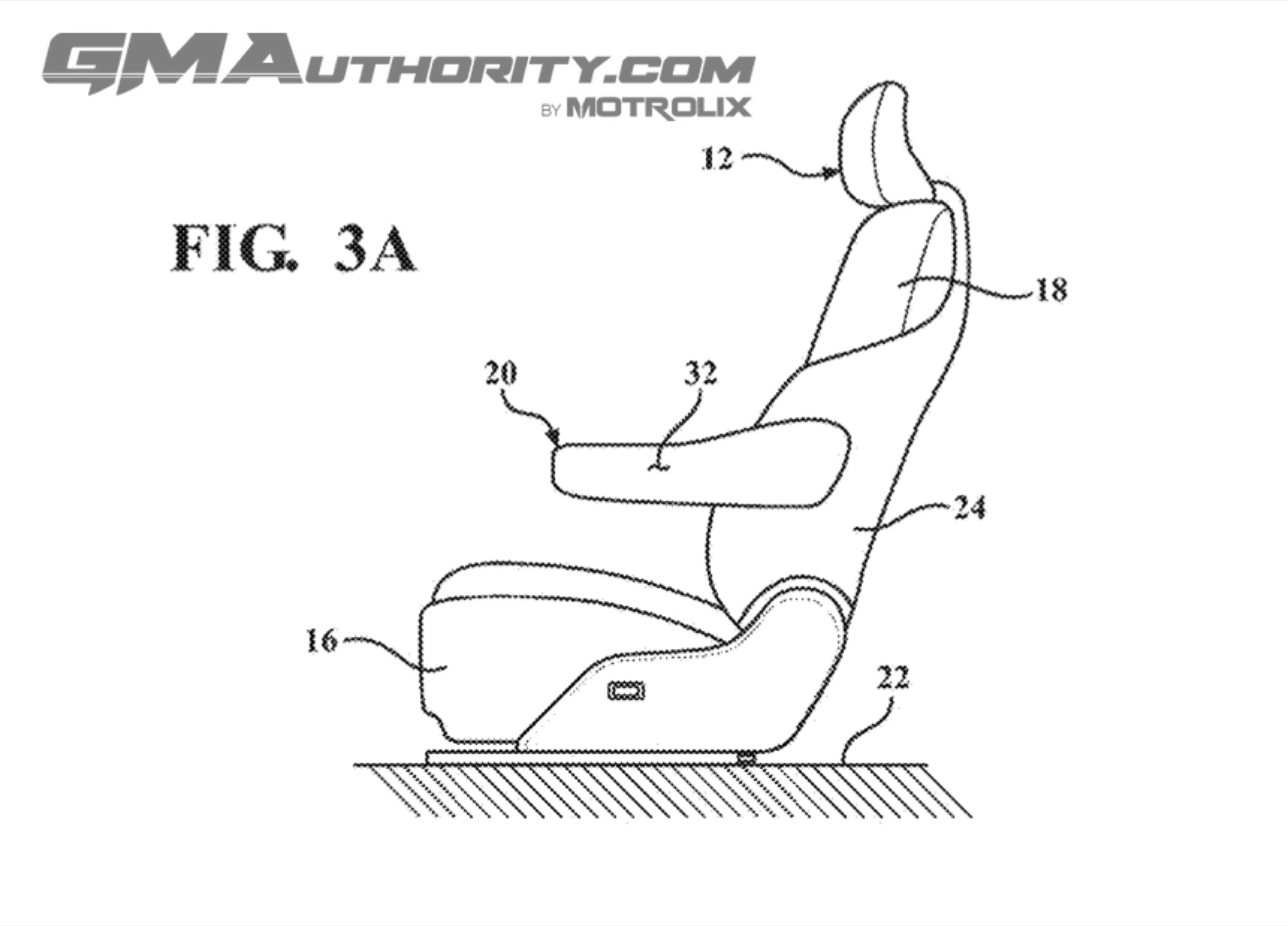

The patent application describes a powered armrest system that can automatically adjust the position of the armrest relative to the seat bottom, even as the seatback moves up and down, thus ensuring that the armrest remains in an ideal, usable position for the occupant at all times.
Traditionally, armrests are fixed to the seatback and pivot into a stowed or extended position. However, when the seatback angle changes (such as when reclining), the armrest angle changes as well, often resulting in a position that isn’t comfortable or aligned properly with the seat bottom. This system solves that issue with a motorized system that rotates the armrest in response to the seatback movement, ensuring that the armrest stays level regardless of the seatback angle.

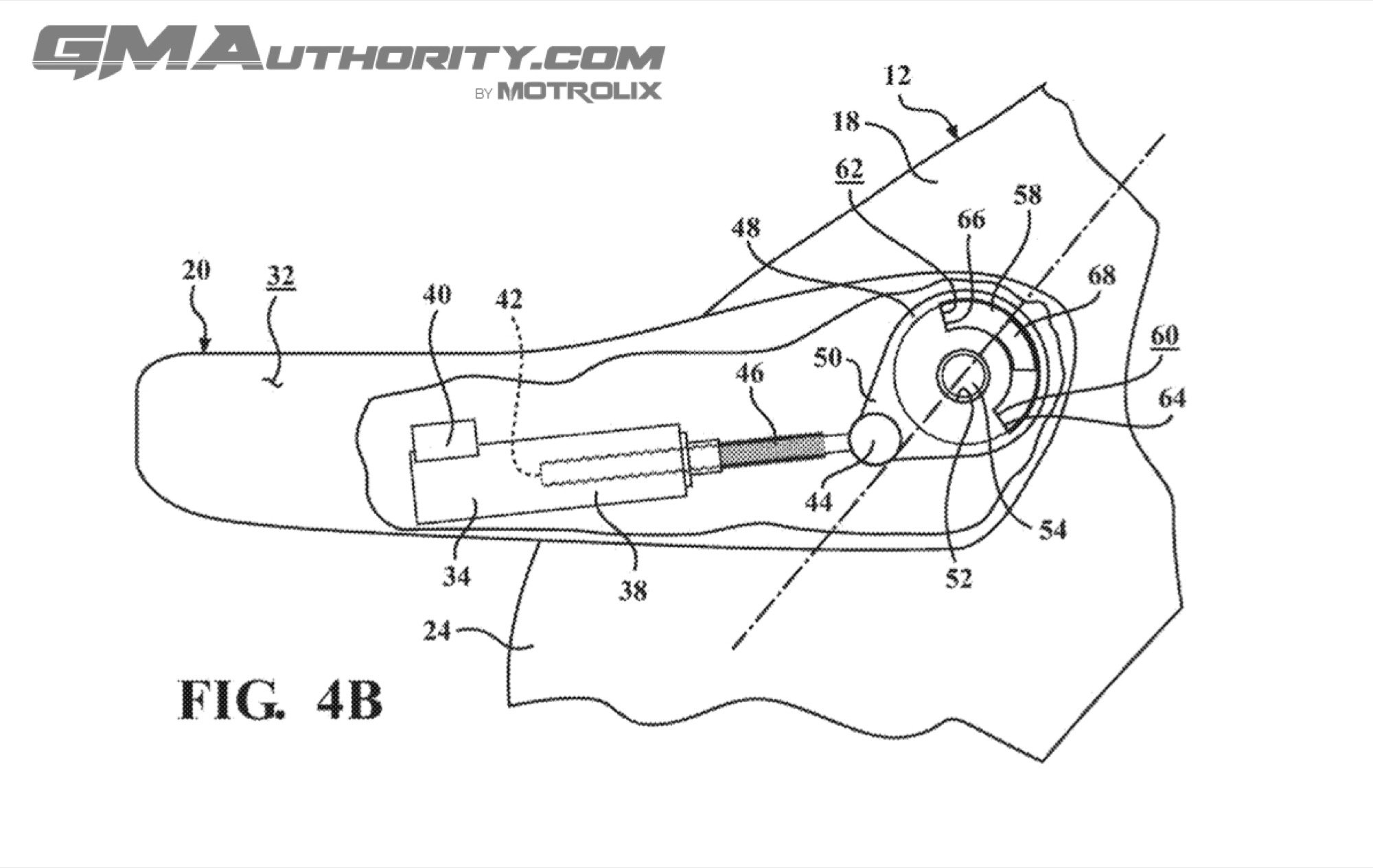

The system includes a housing that can rotate relative to the seatback, while inside the housing is a motor and an actuator connected to a lever. The lever adjusts the angle of the armrest as the seatback tilts forward or backward. Sensors are used to monitor the positions of both the seatback and the armrest, while a control system provides smooth, real-time adjustments.
In some configurations, the system includes multiple motors, including adjustments for the armrest and the seatback angle. A central control module ensures both motors work together so that the armrest always maintains a consistent angle relative to the seat bottom, no matter how the seatback moves.
The system should help to enhance occupant comfort by maintaining an ergonomic position for the armrest. This could be particularly beneficial in an autonomous vehicle, where occupants are more likely to be resting or in a reclining position.
