GM has filed a patent application for a cable-free pickup truck tailgate system. The application was assigned patent number US 2025/0043605 with the United States Patent and Trademark Office (USPTO) and was published on February 6th, 2025. The GM patent application was originally submitted on July 31st, 2023, and lists several Michigan-based engineer Scott Lee Bodell as the inventor.

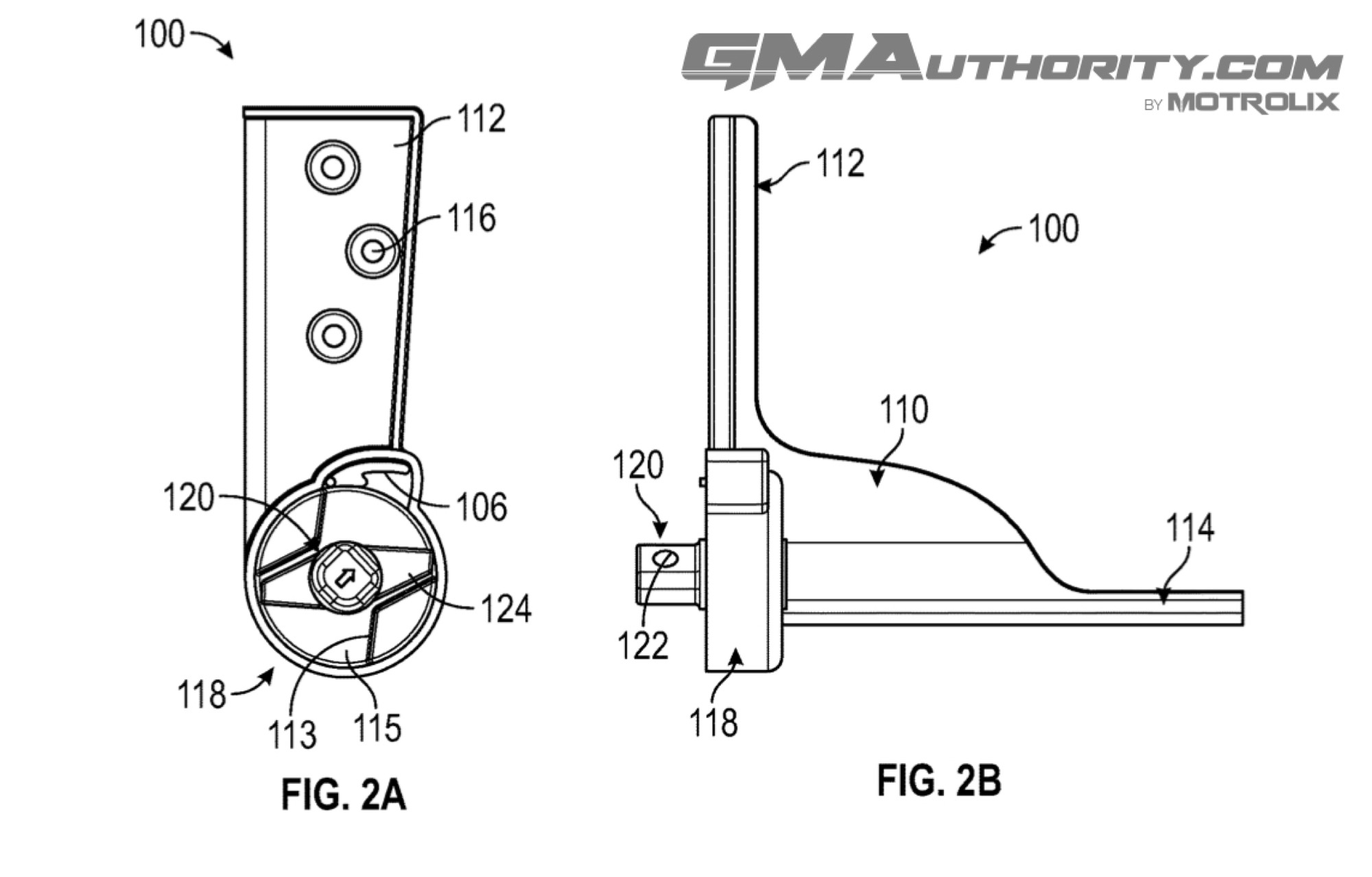

The patent application describes a pickup truck tailgate system that eliminates the support cables traditional used in tailgates. Rather than cables, the system described in the patent relies on a pair of adjustable hinges that allow the tailgate to be positioned in multiple ways, giving truck owners more flexibility in how they use their truck bed.
The patent describes a truck cargo box with a base, side walls, and tailgate, with the tailgate attached using the specialized hinges. The hinges allow the tailgate to pivot freely while also securing it in different positions without the need for external support.

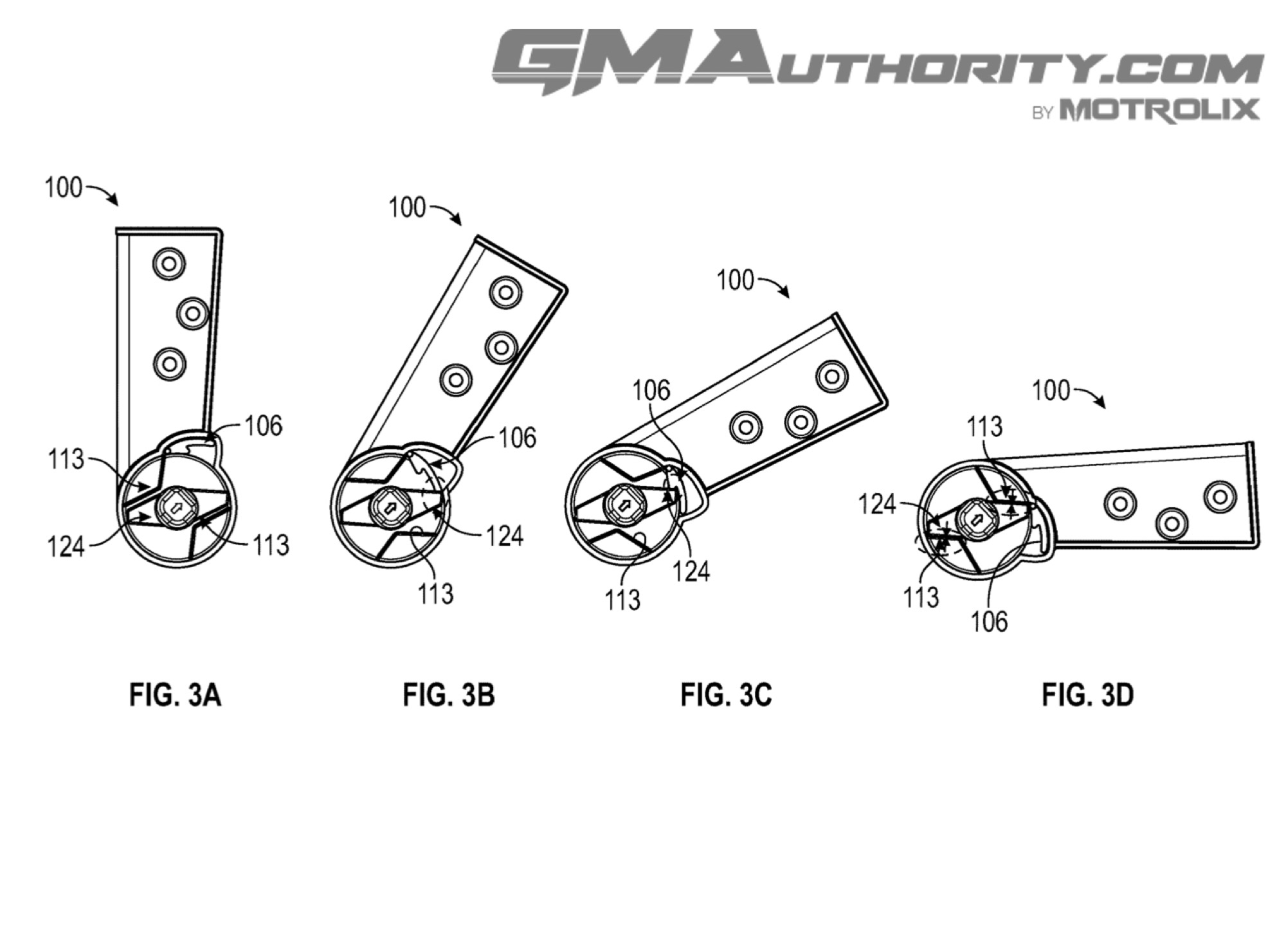

In the fully closed position, the tailgate is upright and flush against the truck bed, just like a standard tailgate. It can also be placed in an intermediate position, where it’s slightly open at a set angle, offering partial access to the truck bed. A second intermediate position allows the tailgate to be opened even further, but still not fully extended. Finally, the tailgate can be moved to a fully open position, where it lays completely flat, extending the truck bed for easy loading and unloading.

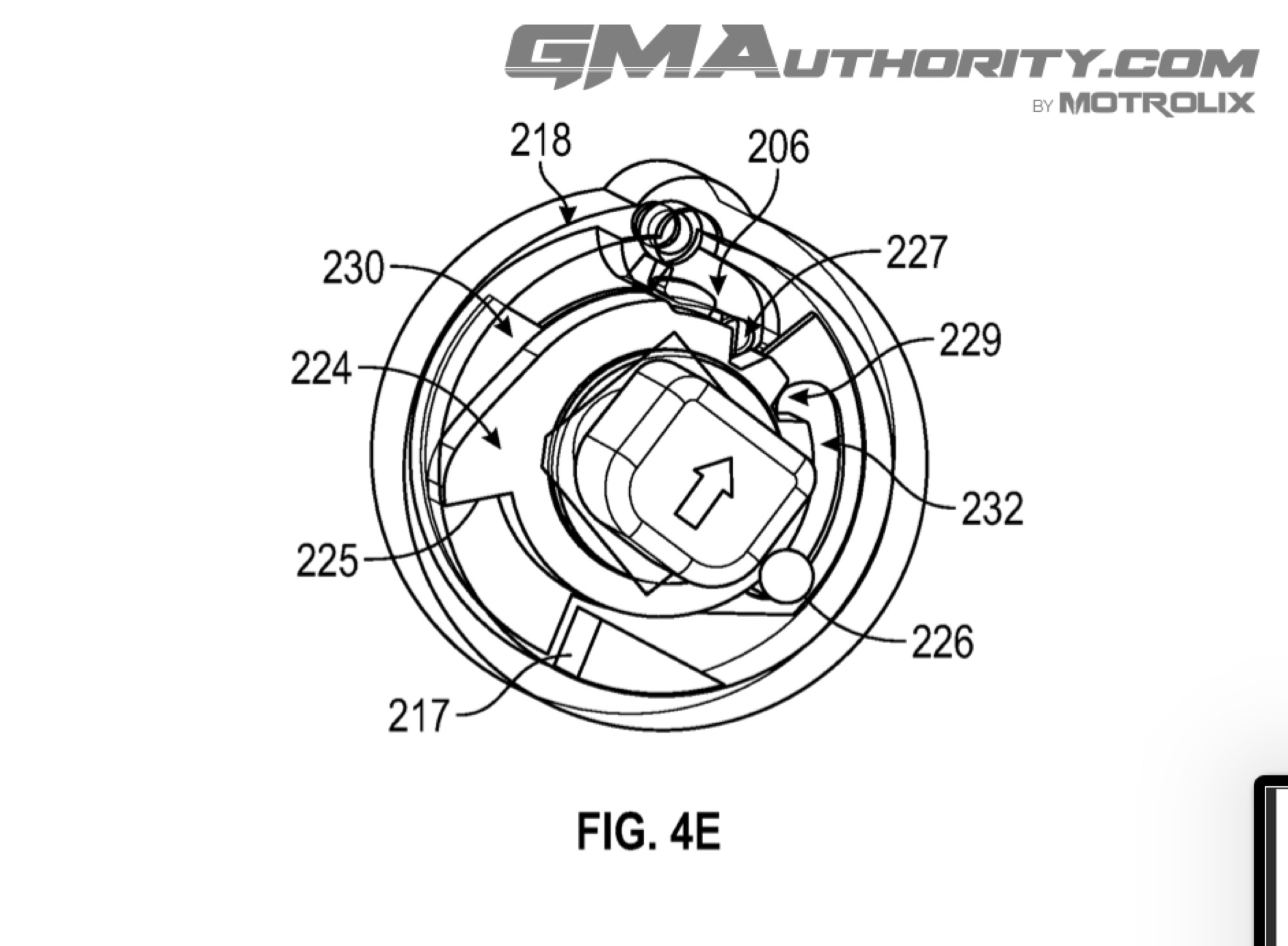

A key feature of this system is a release mechanism that lets the user easily transition between these positions. The hinges also include a control system, such as a cam or locking pawl, that prevents the tailgate from moving unexpectedly.
Unlike traditional tailgates, which use cables to stop the tailgate at a fixed open position, this system removes cables entirely. The multiple lockable positions make the tailgate more versatile, allowing truck owners to adjust it based on their needs. Another advantage is improved safety, as the system prevents sudden drops or unintended movement.
