GM has filed a patent application describing a system designed to improve torque response in a turbocharged engine. The application was assigned patent number US 2025/0052207 A1 with the United States Patent and Trademark Office (USPTO) and was published on February 13th, 2025. The GM patent application was originally submitted on August 11th, 2023, and lists several U.S.-based engineers as the inventors, including David Alexander Schmitt, Wesley Rieves Haney, John Garrity Singleton, and Robert Monchamp.
The patent application describes a computer-controlled system designed to reduce turbo lag and improve throttle response. For those who may be unaware, turbochargers rely on exhaust gases to spin a turbine, compressing intake air to increase engine power. However, there can sometimes be a delay, also known as turbo lag, between when the driver presses the throttle and when the turbocharger spins up to generate sufficient boost to create peak power. The system described in this patent application aims to address that issue by proactively adjusting turbo parameters based on the current driving conditions.

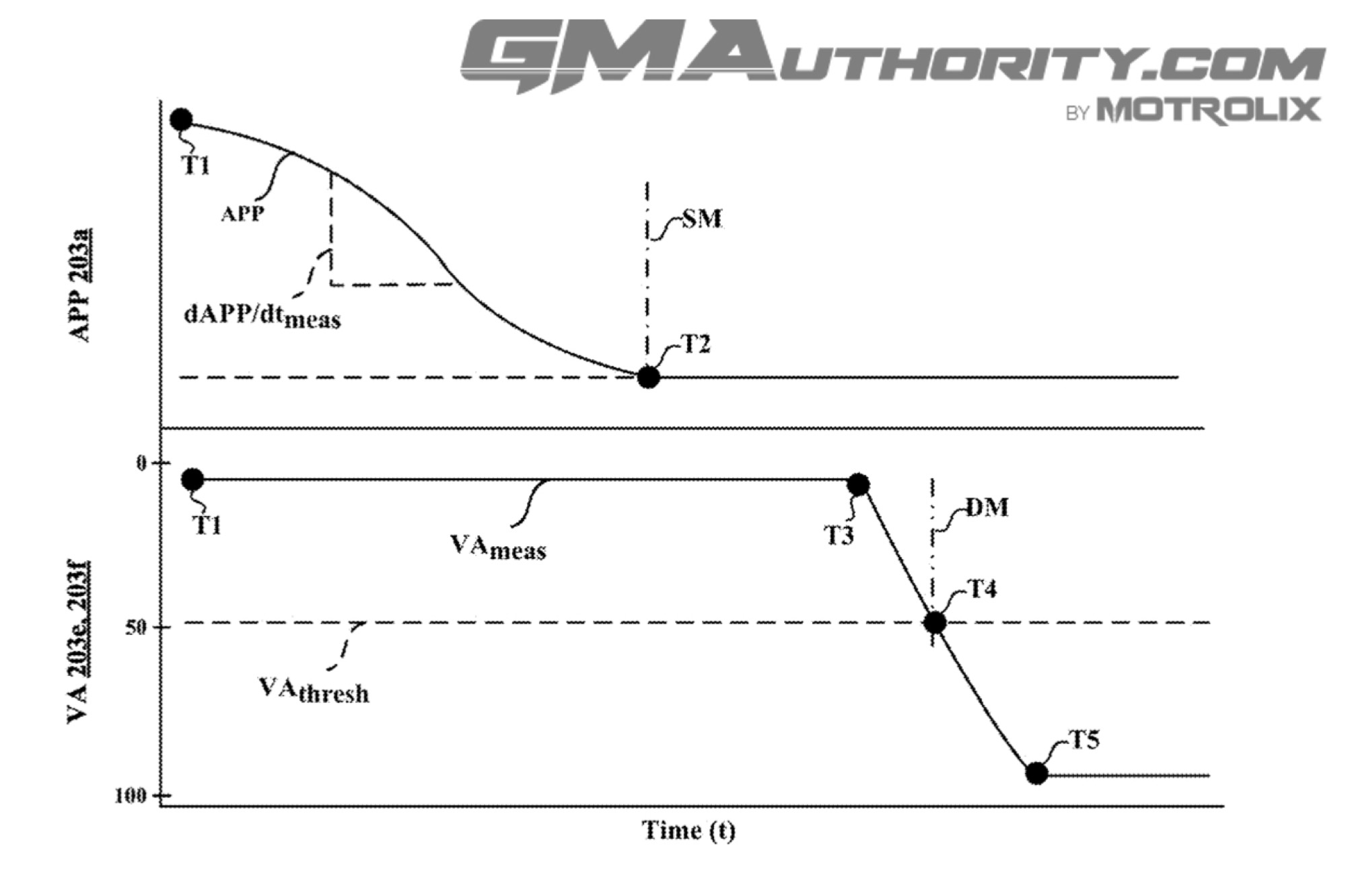

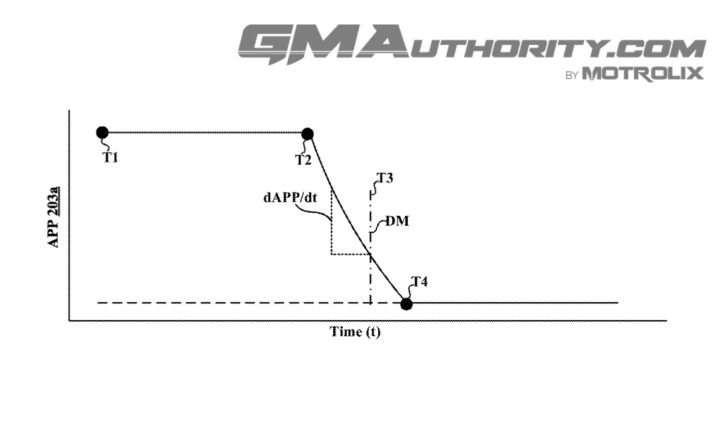

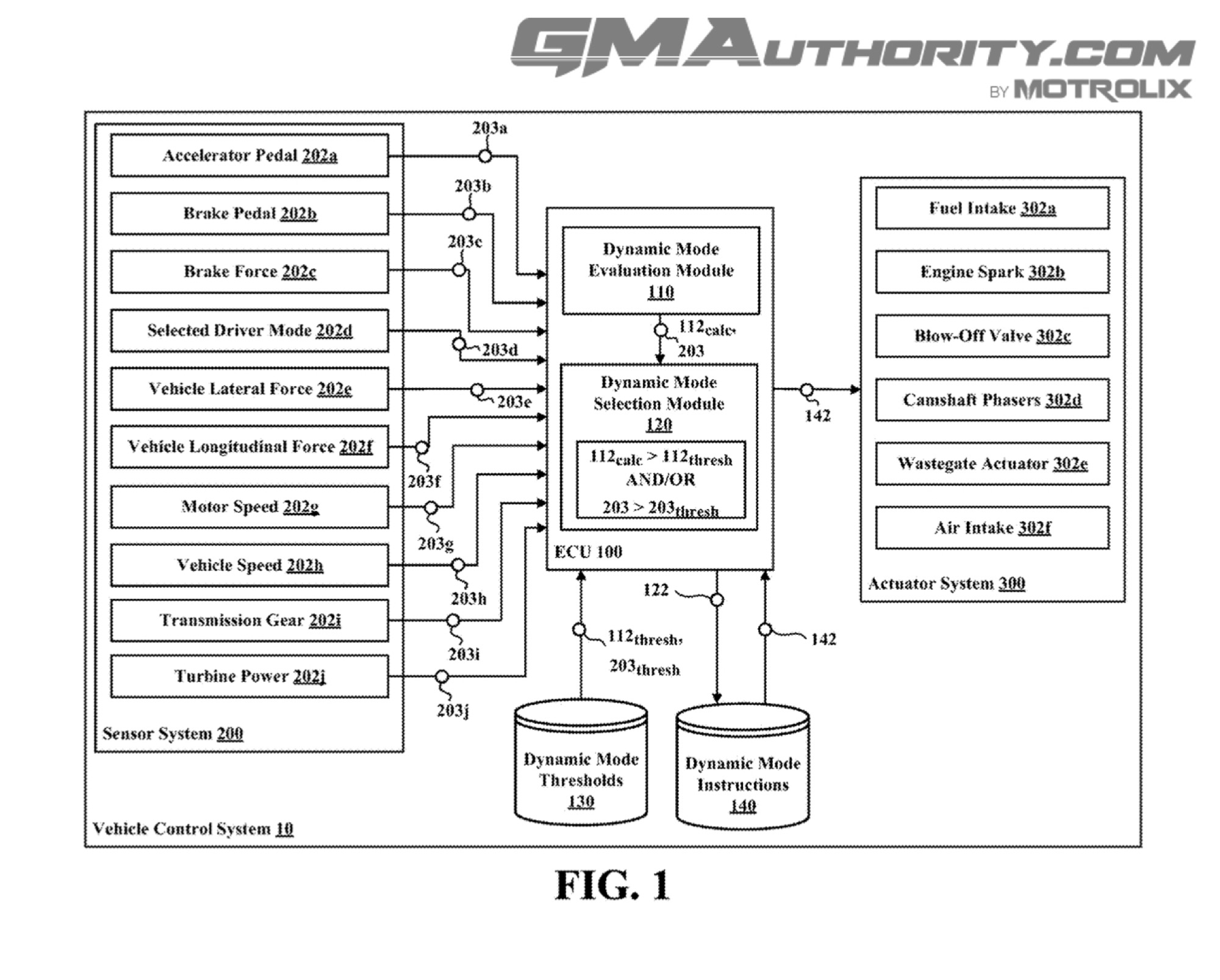

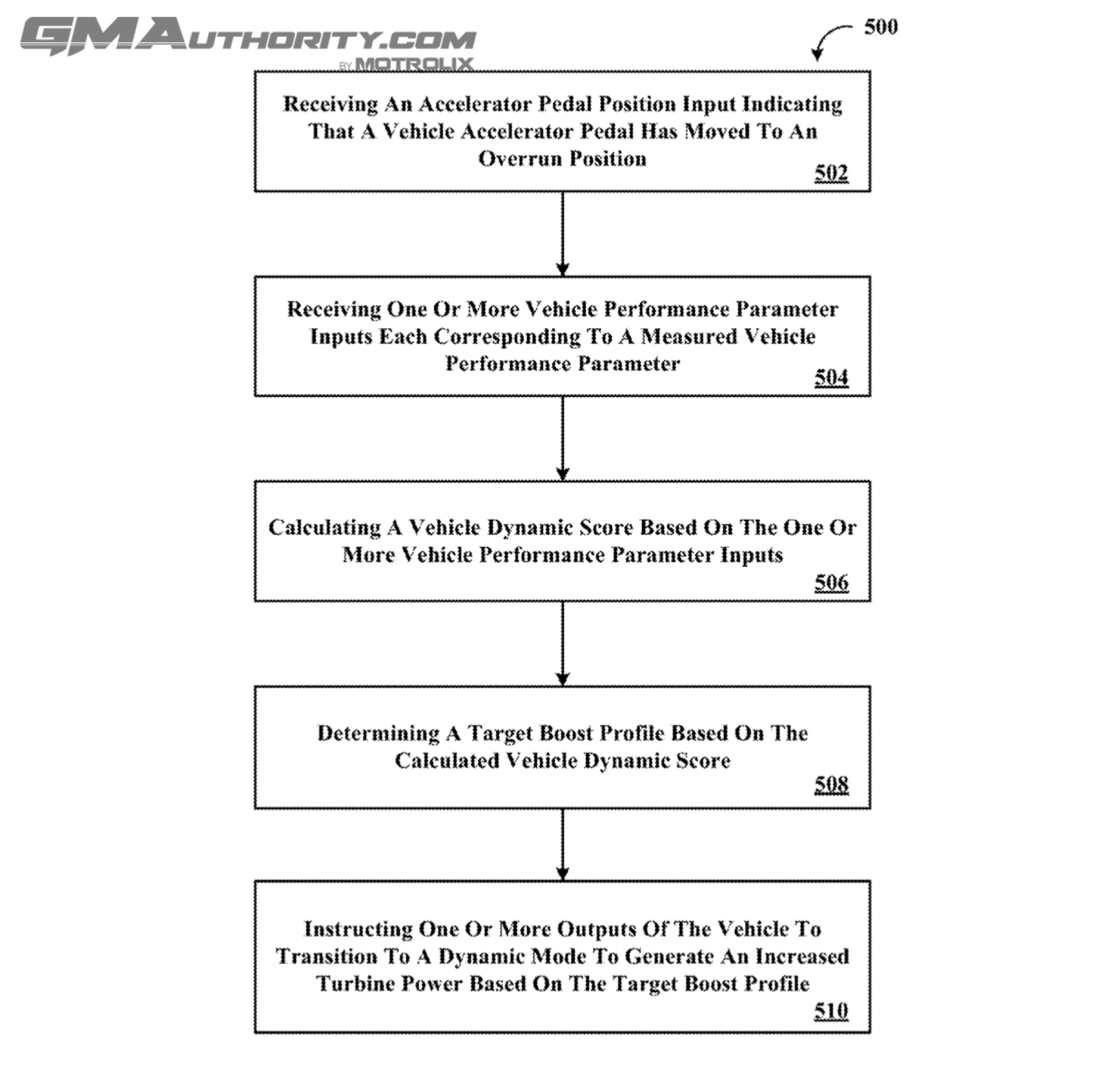

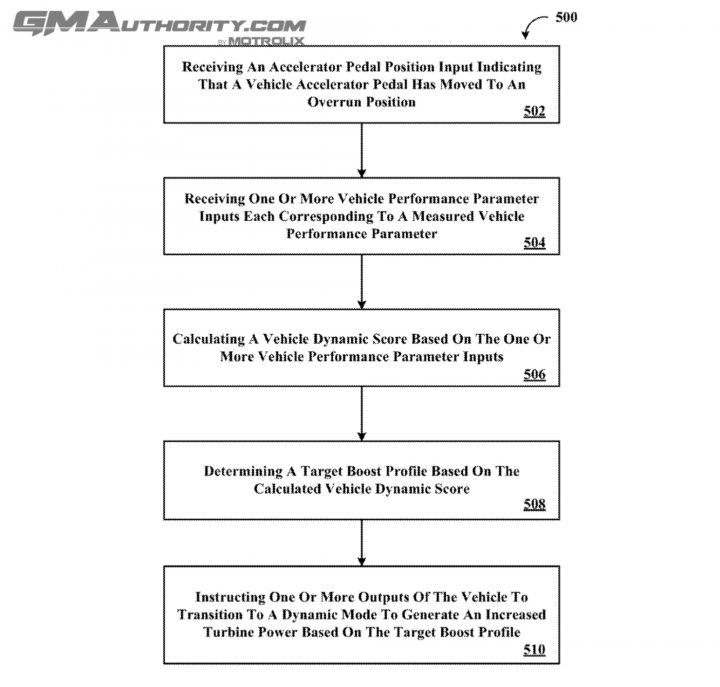

The system works by first monitoring the throttle position to determine when the driver has lifted, indicating an overrun condition. It then collects various vehicle performance metrics, such as acceleration, engine speed, air intake rate, and fuel injection data. Using this information, the system calculates a “vehicle dynamic score,” which represents the car’s current driving state. If the score indicates the vehicle is in a dynamic mode, such as during aggressive driving or high-demand situations, the system determines an optimal turbo boost profile in anticipation of the driver’s next throttle input.

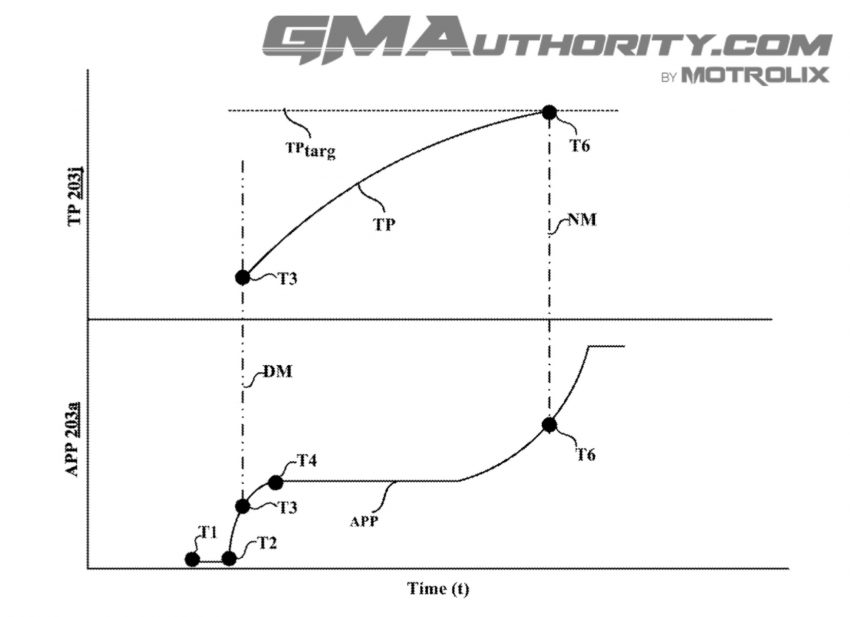

Instead of waiting for the driver to press the accelerator again, as is the case in a traditional turbo system, the system described in the patent proactively adjusts the turbocharger’s settings to maintain readiness. By fine-tuning parameters like wastegate actuation and fuel delivery, it ensures that boost is available when needed, significantly reducing lag. This not only improves overall engine performance, but also enhances the driving experience by delivering smoother and more responsive acceleration.
What sets this system apart from existing turbo technologies is its predictive approach. Whereas conventional turbocharged engines react only after the driver demands power, this system anticipates power needs in advance by continuously analyzing real-time driving data. Additionally, its use of a dynamic scoring method allows it to adapt to different driving conditions rather than relying on fixed parameters.
