Way back in 2023, GM Authority reported that some Chevy Colorado and GMC Canyon owners were experiencing frustrating roof denting issues. The issue was tied to roof flexing, which could lead to dents after the vehicle was run through a touchless car wash service. Now, GM has developed a fix for the roof dent issue by applying a new roof structure to the Chevy Colorado and GMC Canyon at the factory.
As covered before, the dented roof issue stems from flex in the roof panel on the Chevy Colorado and GMC Canyon, in particular from the high-pressure drier typically used at the end of touchless car washing services. Affected vehicles may produce a loud popping sound, also known as “oil canning,” when passing through an automatic car wash. GM has issued fixes for this issue before, but now, the automaker will apply this fix to new units straight from the factory. The fix is also available for third-generation Chevy Colorado and GMC Canyon trucks produced between the 2023 and 2025 model years, specifically models without a sunroof that were built before February 3rd, 2025.
To fix the issue, GM will reinforce the roof panel by adding stiffening patches and installing a roof bow, all of which is designed to prevent excessive flexing. GM recommends that any units that need paint or bodywork on the roof should have this completed before starting a repair.
Essentially, stiffening patches are installed at five locations near the front of the roof. If these patches were previously added as part of an earlier repair, they can remain in place when installing the roof bow.

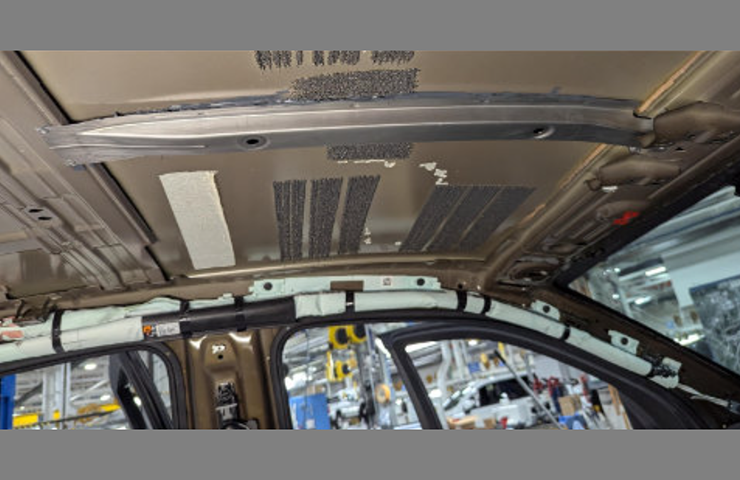

To install the roof bow, five holes must be pre-drilled before using the bow as a template, marking and drilling matching holes in the underside of the roof panel. Once the holes are prepared, structural adhesive is applied to both ends of the bow, and vibration control material is applied as well, after which the roof bow is then secured to the vehicle using rivets.
After the stiffening patches and roof bow are installed, the headliner installed. Repaired units should be verified to ensure the roof no longer flexes under pressure.
