Last week, we brought you our very first sighting of a 2027 GMC Sierra / Chevy Silverado prototype as it underwent testing. The shots show a heavily-camouflaged truck, so much so, in fact, that we don’t fully know if it’s a Silverado or a Sierra. Regardless, one of the photos shows a part of the rear suspension, making us wonder whether the next-generation trucks will feature outboard frame-mounted shocks.
Taking a gander at the prototype and comparing it to the current model seems to reveals a set of leaf springs (seen in the side profile shot), plus two more observations: the shock seems to be closer to the wheel than it is on the current-gen trucks, and the bottom bolt that secures the shock seems to be facing away from the wheel; on the current current Sierra and Silverado, the same bolt faces toward the wheel.
These changes could indicate that the location of the shock itself has changed to an outboard mount.

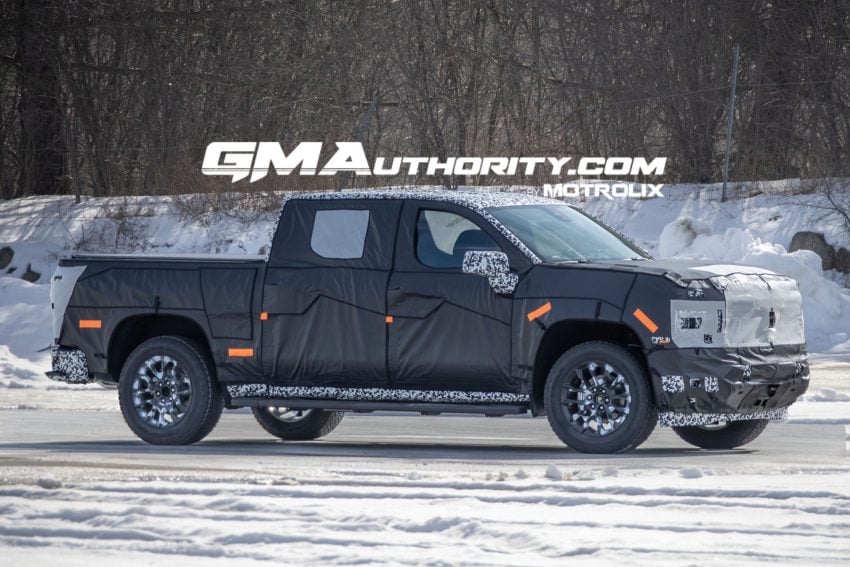

Next-gen 2027 GMC Sierra 1500 / Chevy Silverado 1500 Prototype

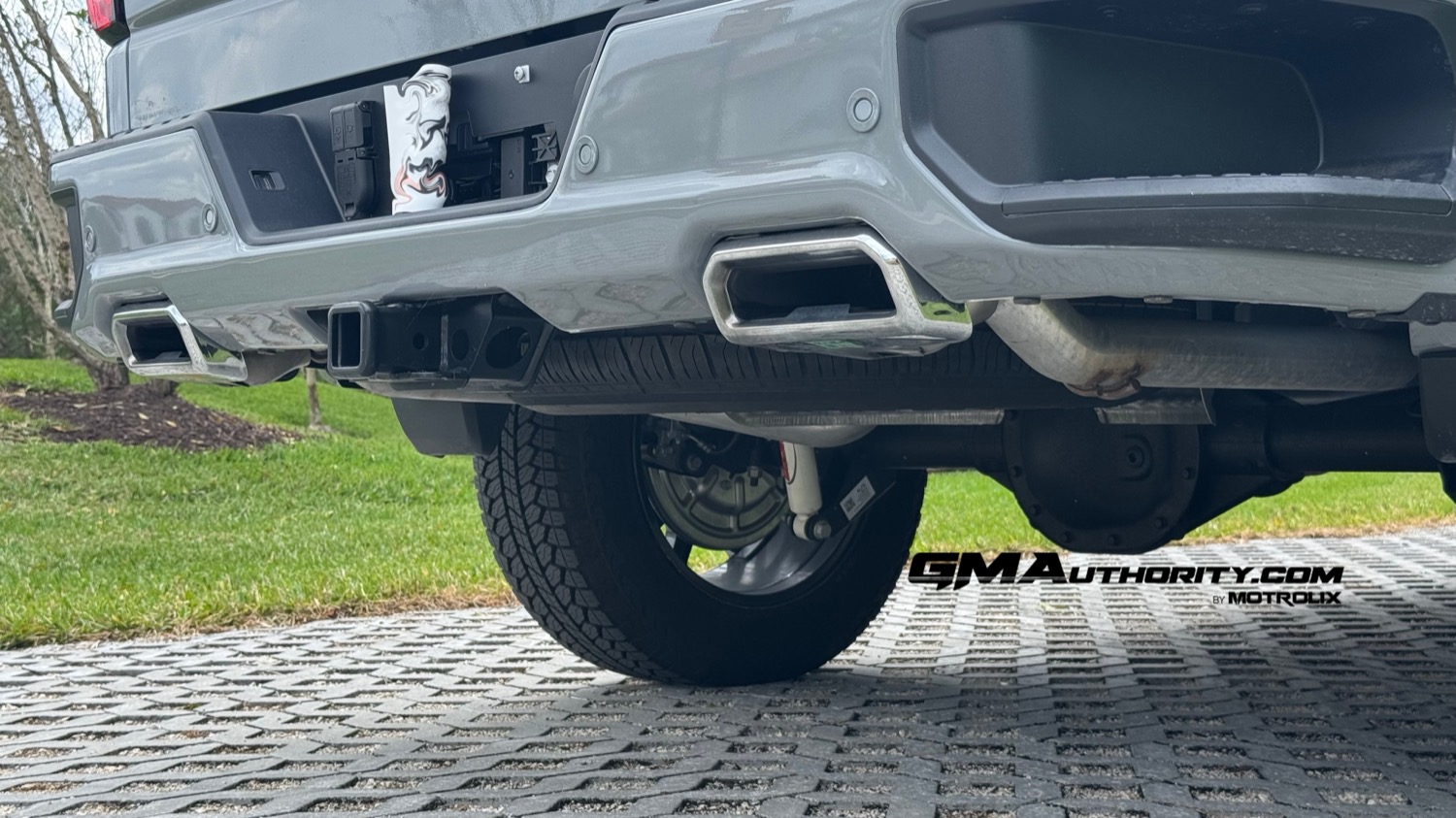

Current 2025 GMC Sierra 1500 AT4
Mounting the rear shocks on the outside of a truck’s frame (and leaf springs) provides several benefits over an inboard-mounted setup found on the current trucks. For starters, an outboard-mounted setup makes it easier to deliver a wider track (the width between two wheels), enabling improved stability and handling, both on and off-road. Additionally, secondary benefits include a wider and more aggressive stance.
GM introduced outboard-mounted shocks on its most off-road-capable midsize pickup trucks – the Chevy Colorado ZR2 and GMC Canyon AT4X – starting with the 2023 model year, giving both models impressive handling capabilities along with a wide stance. The rear shocks are placed inside the frame / leaf springs on all other trims and models within the Chevy Colorado and GMC Canyon families.
The GMC Canyon AT4X features outboard-mounted rear shocks, delivering impressive handling abilities and an aggressive stance
And though the 2027 GMC Sierra / 2027 Silverado prototype pictured here doesn’t appear to be particularly offroady, judging by its ride height and all-terrain tires, it does seem to have a wide stance (and one that’s more level, too).
As a reminder, GM’s next-generation full-size half-ton pickup trucks are planned for a 2027 model year debut, which GM Authority was first to exclusively report back in 2024. The pickups will ride on a massaged T1 platform, known as T1-2 and will feature new exteriors, interiors, next-gen Small Block V8 engines and new convenience features, among other updates and changes.
So what say you – does the 2027 GMC Sierra or 2027 Chevy Silverado 1500 tester have outboard-mounted shocks, or not? Talk to us in the comments.
