Some third-generation Chevy Colorado owners are experiencing roof flexing issues, particularly in automatic carwashes. The issue arises from the force of the industrial air dryer at the end of the carwash, which can cause a loud pop sound in the roof. A dealership Service Bulletin was issued last year in an effort to fix the pickup roofs, but now, GM has seemingly come up with an even better solution.
The fix specifically applies to 2023-2025 Chevy Colorado models without the sunroof option (RPO CAC) and built before February 3rd, 2025. It’s a fairly simple fix that applies stiffening patches and a longitudinal roof bow to the underside of the problematic roof panel.

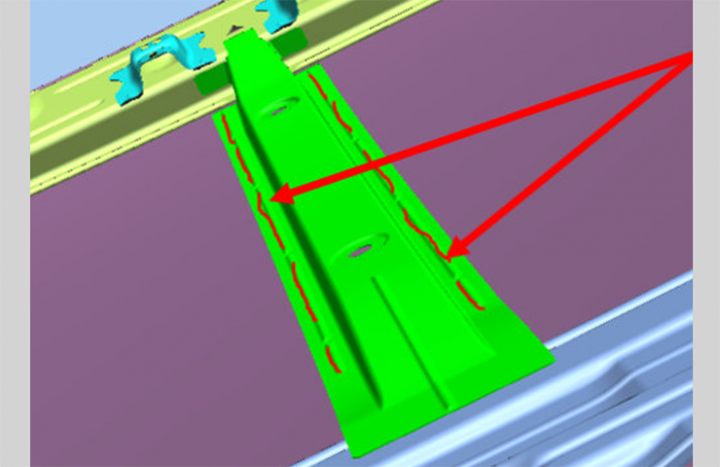

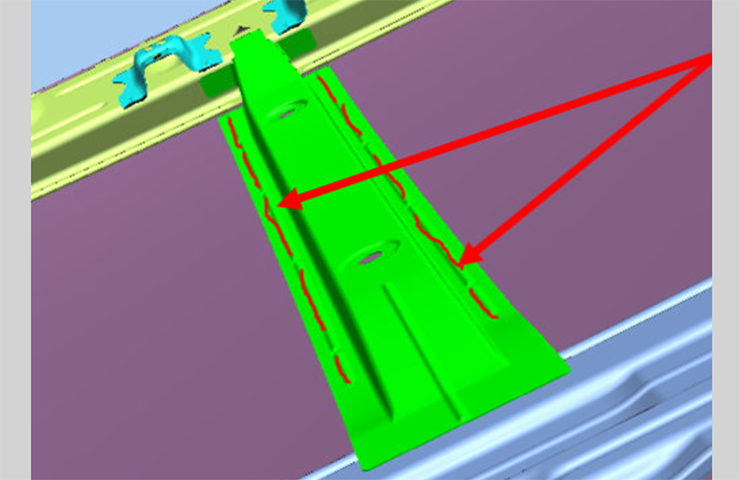

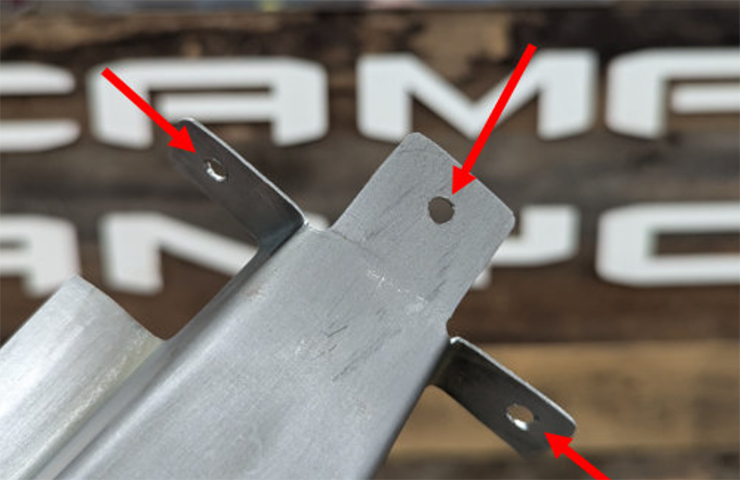

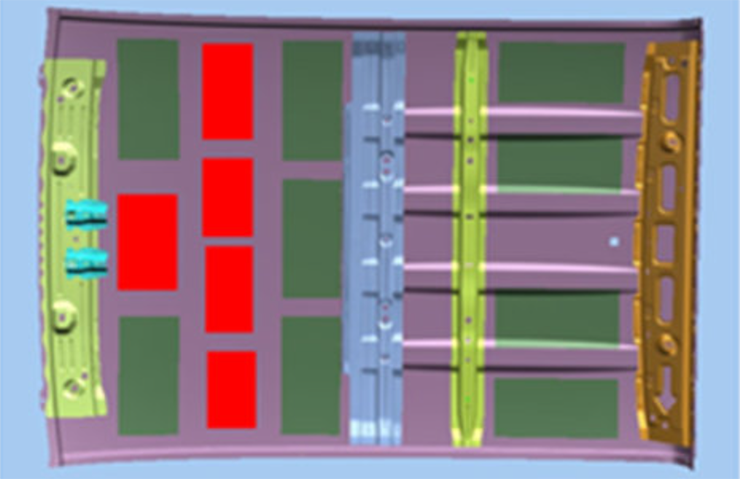

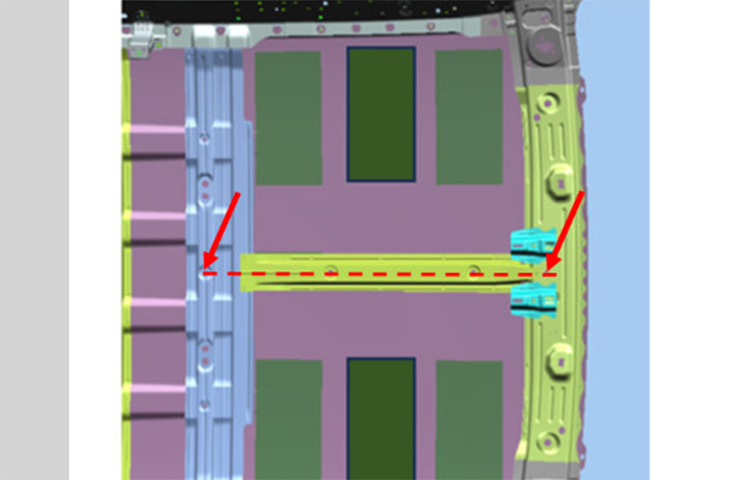

The stiffening panels are to be installed in five locations on the underside of the roof panel, all toward the front of the roof area. The headliner needs to be dropped but not entirely removed. Installation of the roof bow is a little more involved. The roof bow itself has pre-drilled holes where the rivets go, but it needs to be used as a template for holes to be drilled in the underside of the roof structure for said rivets. A depth-control device on the drill bit is recommended.
Once the holes are drilled, structural adhesive is to be applied to both ends of the roof bow. Additionally, panel vibration control material is applied along the length of the roof bow, and then it’s ready to rivet to the roof panel. Once the stiffening panels and roof bow are installed, the headliner is reinstalled, and the repair is complete.
The extra bracing and stiffening in the roof panel should prevent excessive flexing in automatic carwashes and prevent any excessive noise. Chevy Colorado owners who continue having problems after this repair is performed should contact their local GM service department, as something else might be wrong with the truck.
More details on the repair procedure and specific part numbers can be found in Bulletin 23-NA-209.
