The 2025 GMC Canyon represents the third model year of the third-generation midsize pickup truck, for which it receives all kinds of small changes and updates. GM Authority is now delving into everything that’s new and different about the 2025 Canyon.
Model Cadence
The 2025 GMC Canyon follows the 2023 Canyon, which was the introductory year of the overhauled (redesigned and re-engineered) model and the 2024 Canyon, which was headlined by the introduction of the AT4X AEV Edition package.
2025 GMC Canyon Model Line
The 2025 GMC Canyon is offered as a mid-size pickup truck in the Crew Cab, Short Box configuration and in 2WD or 4WD across the following trim levels (product code in parentheses):
- Elevation (T4C43) – 2WD or 4WD
- AT4 (T4E43) – 4WD only
- Denali (T4F43) – 4WD only
Those paying particularly close attention may have noticed that this list does not include the AT4X. That’s because the AT4X is no longer a trim level for the 2025 model year, instead becoming a package offered on the AT4 trim.
Powertrain
GM made no changes to the Canyon’s powertrain, with the midsize pickup truck continuing to be offered solely with the turbocharged 2.7L I-4 L3B engine, otherwise known as TurboMax, delivering a decent 310 horsepower and a whopping 430 pound-feet of torque. GM’s second-gen eight-speed automatic transmission handles the cog swaps.
The Elevation trim is available in either 2WD or 4WD, while the AT4 and Denali ship exclusively with 4WD.
2025 GMC Canyon Exterior
On the outside, the 2025 GMC Canyon swaps three existing exterior colors for three new ones.
Deleted colors:
- Desert Sand Metallic (GTL)
- Solar Flare Metallic (GCP)
- Dynamic Blue Metallic (GLT)
New colors:
- Glacier Metallic (GAE)
- Desert Sun (GBF)
- Rapids Metallic (GAL)
Desert Sand Metallic
Solar Flare Metallic
Dynamic Blue Metallic

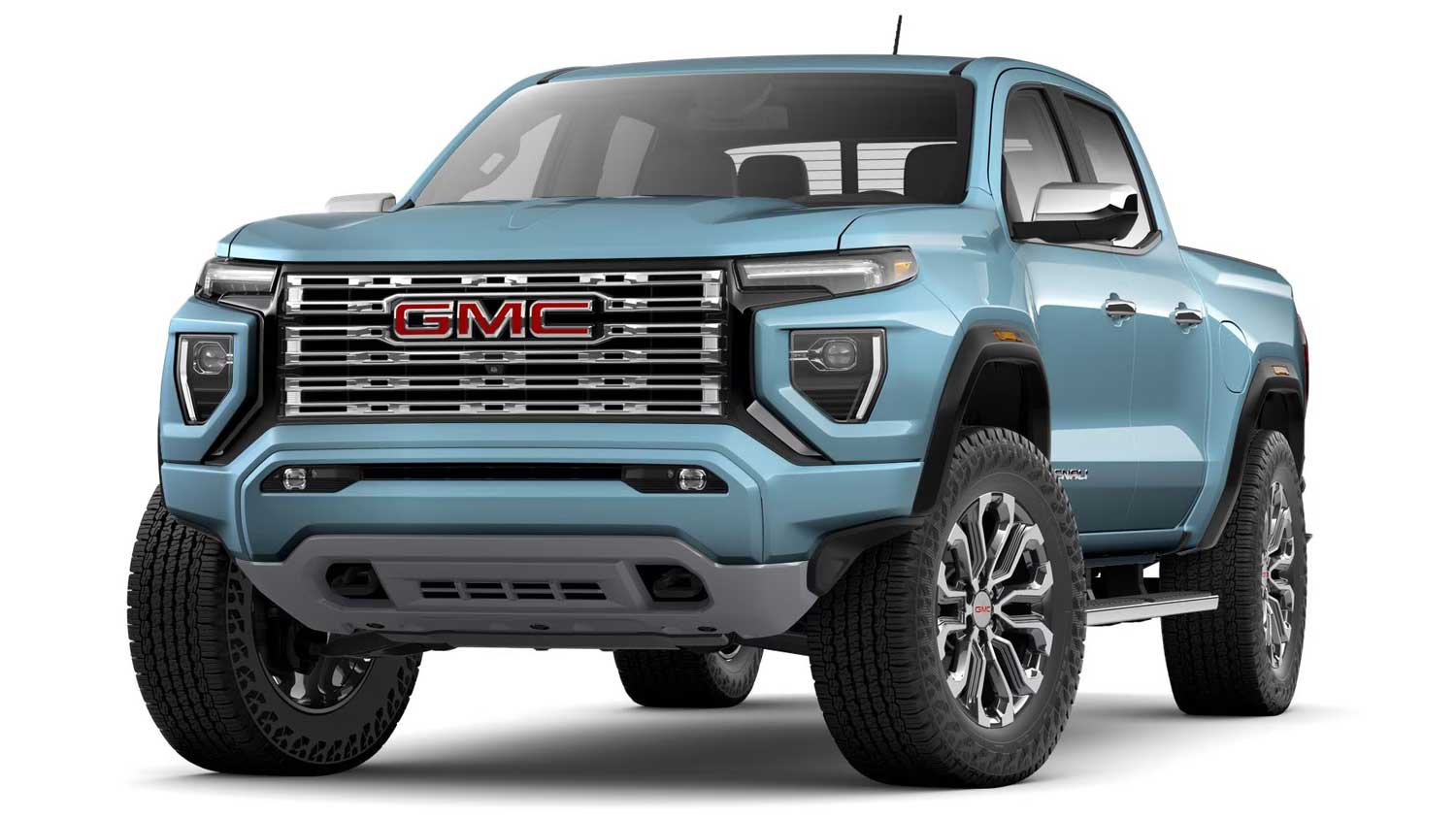

Glacier Metallic

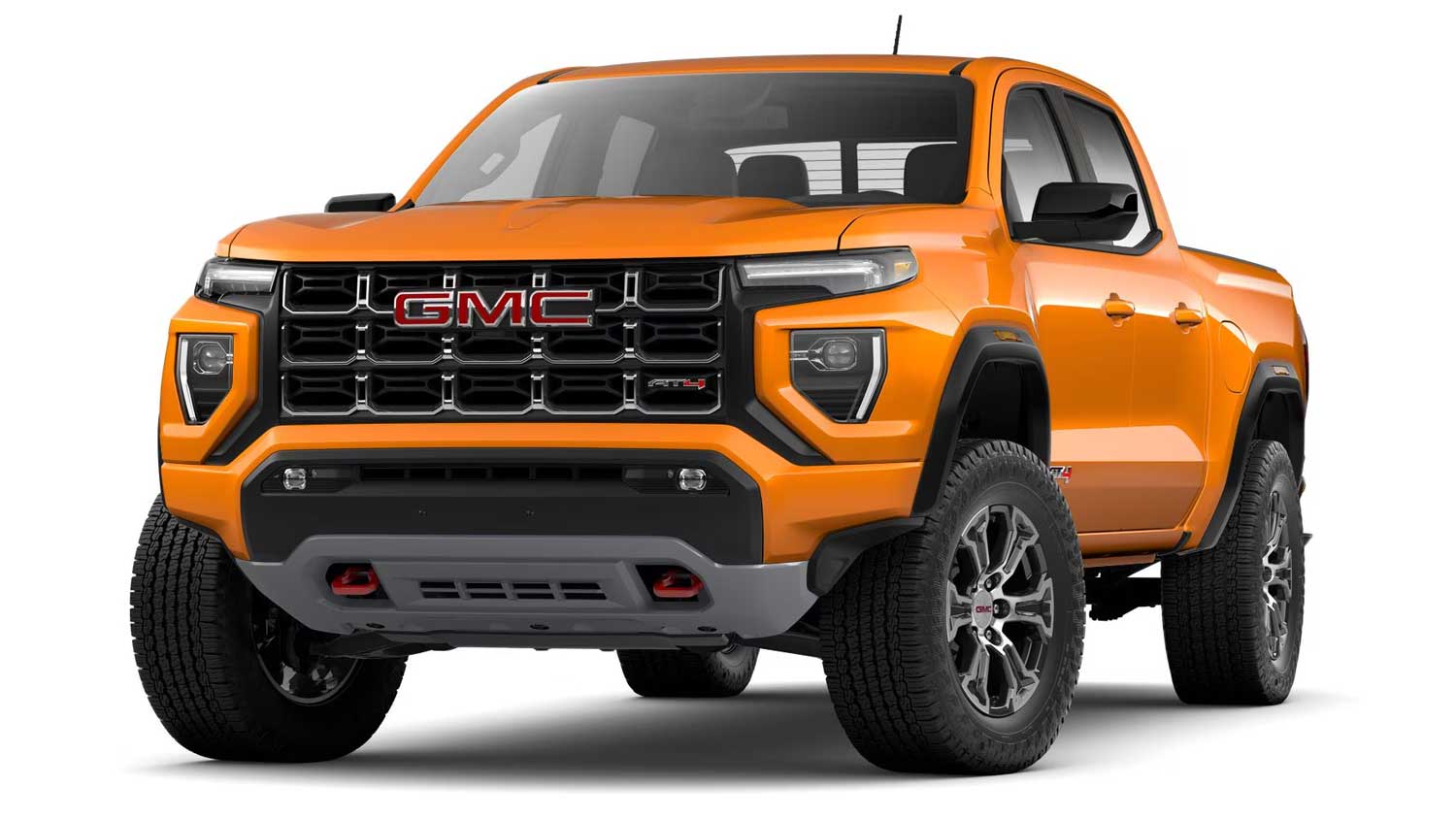

Desert Sun
Rapids Metallic
Also new for the 2025 model year is the Canyon Nightfall Edition Package (XNF). Available exclusively on the AT4 trim, the Canyon Nightfall bundles the following features:
- Rocker Panel Protector (LPO S6L)
- 275/60R20SL AT blackwall tires (QAE)
- 20-inch aluminum wheel (RHO)
- Bed mounted sports bar (LPO SBY)
- Black Badge (LPO RIK)

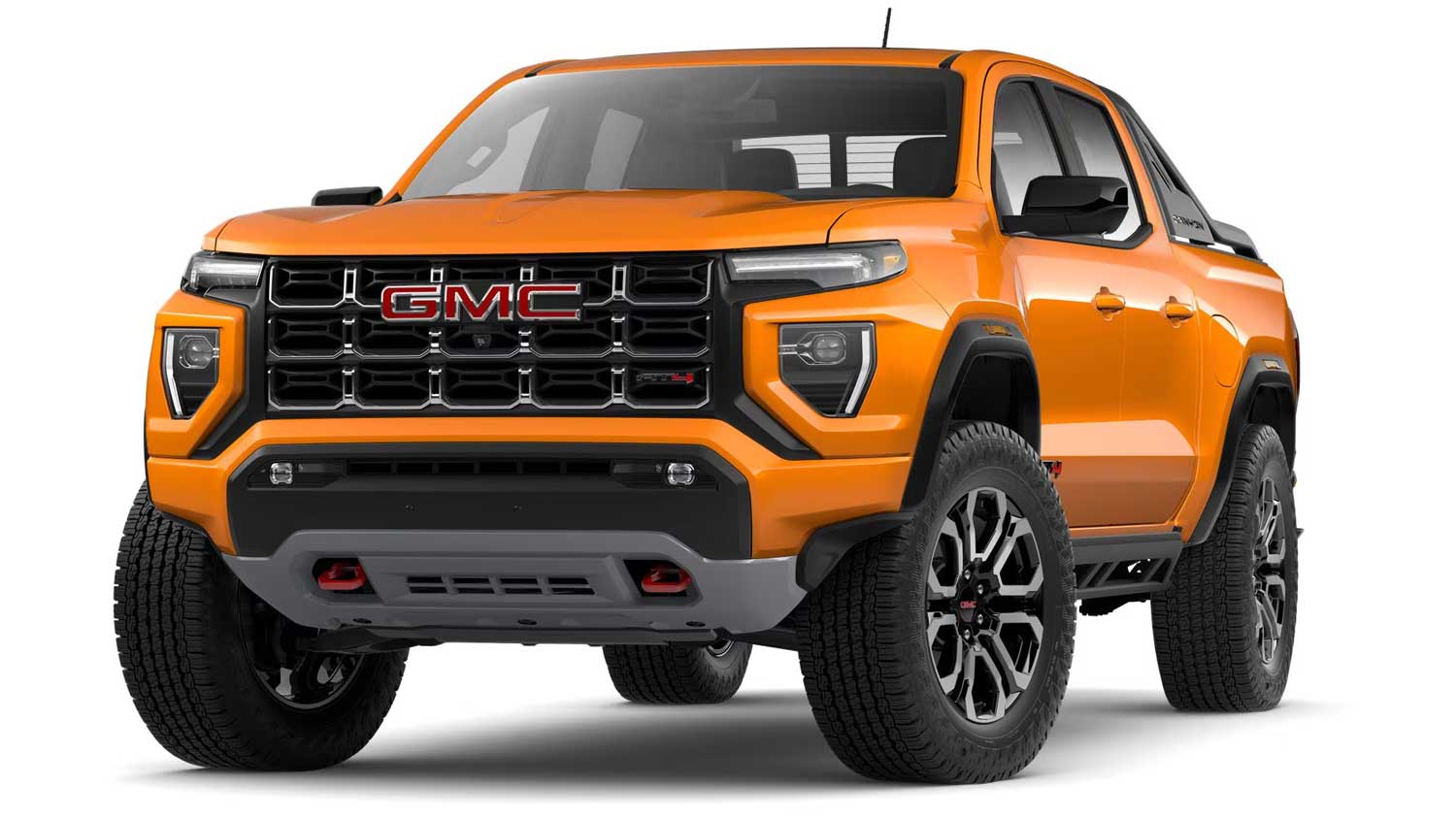

2025 GMC Canyon AT4 in Desert Sun and Nightfall Edition Package
From there, the 2025 GMC Canyon adds an optional snorkel as an LPO-level (dealer-installed) option for the AT4 trim level. Also, a new acoustic laminated windshield is added as an option for the AT4 (with the new Technology Plus Package) and standard on Denali.
Rounding out the changes to the exterior are two wheel and tire changes. The first is the deletion of Goodyear Wrangler Territory Mud Terrain (MT) tire option on the AT4; these were optional on the 18-inch wheels. The only way to get Mud Terrains on the Canyon from the factory is to opt for the AT4X package.
Finally, the optional 20-inch wheels (RD5) have been removed as a standalone option. With this change, the only way to get a 20-inch wheel on the Canyon AT4 is to opt for the aforementioned Nightfall Edition pack.
Interior

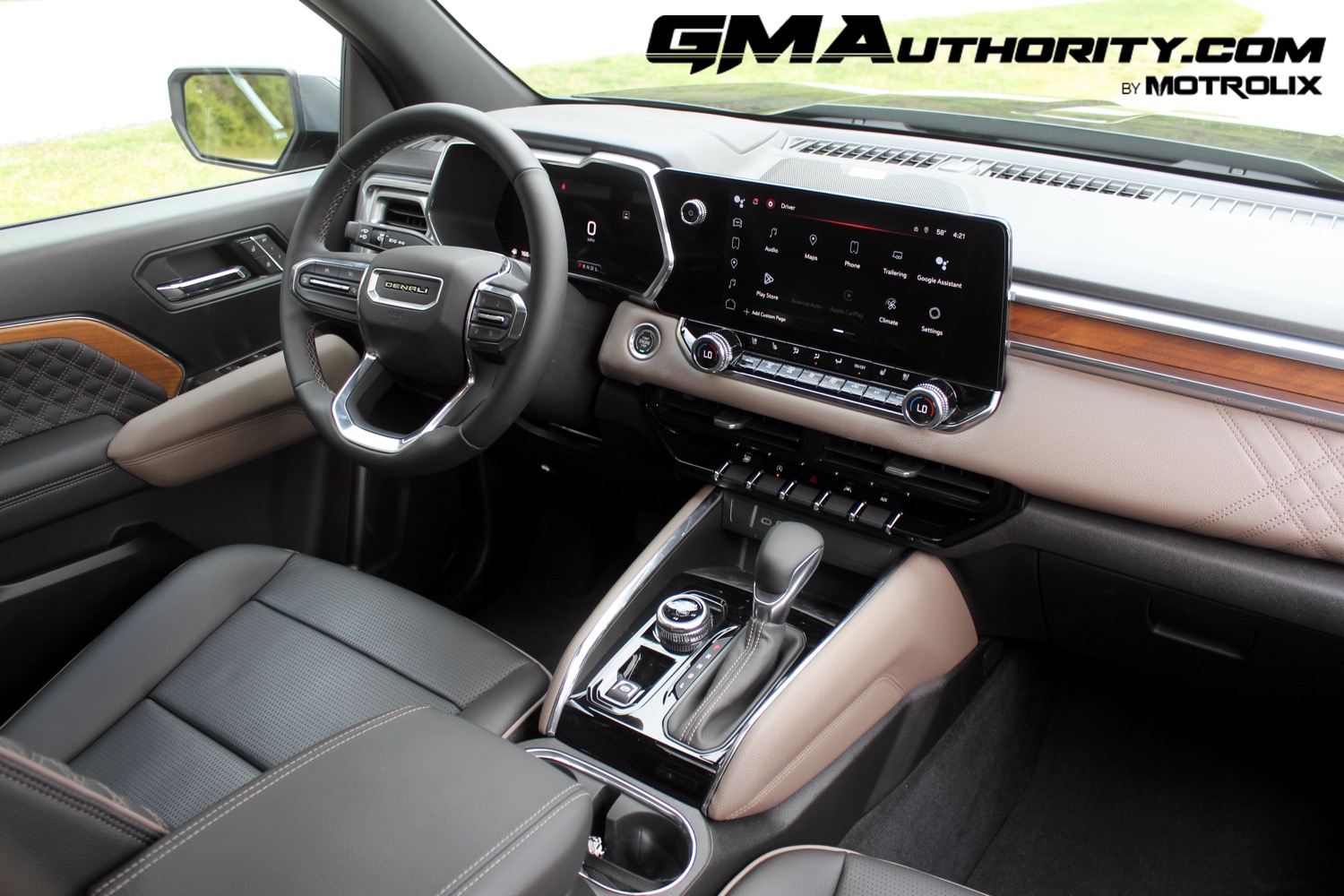

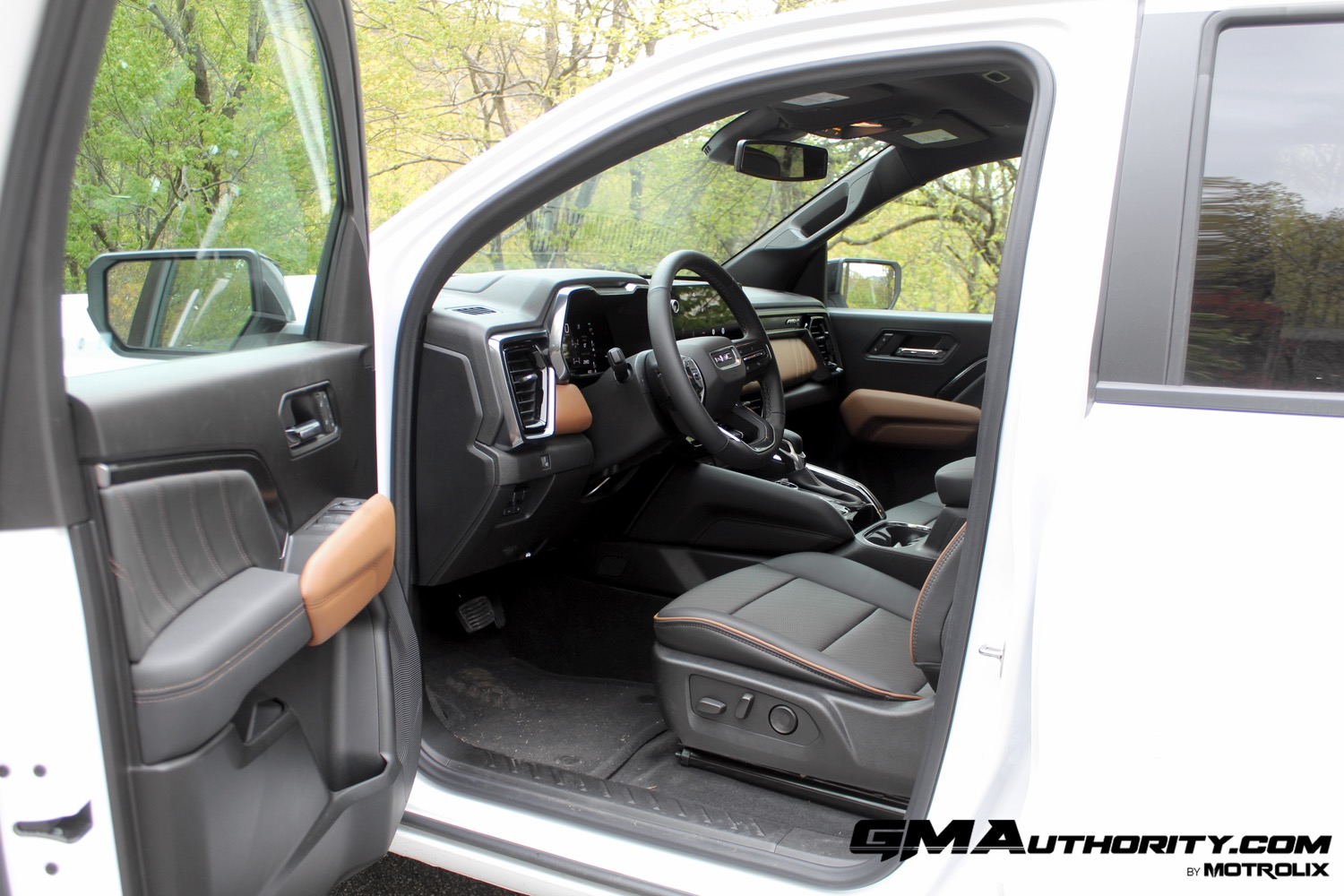

The 2025 GMC Canyon sees no changes to the interior, continuing with the same 2+3 passenger configuration, layout and tech. That includes the 11.3-inch diagonal center stack display with the GMC Premium infotainment system (with wireless Apple CarPlay and Android Auto) and 11-inch fully-digital Driver Information Center display (gauge cluster).
Driver Assist Technology
There are a bunch of availability changes to the Driver Assist Tech for the 2025 model year.
First, Blind Zone Steering Assist has been replaced with Blind Zone Steering Assist with Trailering. The feature is included and only available as part of the Canyon Safety Plus Package (Y5W), optional across all trims.
Additionally, the Canyon Safety Plus Package is now standard on Elevation and AT4 trims. For the 2024 model year, the package – which includes Rear Park Assist, Rear Cross Traffic Braking and Blind Zone Steering Assist – were available as options on Elevation and AT4 and required the Convenience Package (WPC).
Finally, the Rear Seat Belt Indicator (UH5) becomes standard on all trims.
2025 GMC Canyon Packages
And that brings us to packages, and there are quite a few changes here. First, the Elevation trim now gets the following features as standard:
- Rear Sliding Window (A28)
- Rear Window Defogger (C49)
- Outside Heated Power Mirrors (DLF)
For the 2024 model year, these features were included only within the optional Convenience Package (WPC).
Additionally, the ProGrade Trailering System (ZL6) is now standard on Elevation, AT4, and Denali. It includes:
- Blind Zone Steering Assist with Trailering (UKW)
- In-vehicle Trailering App (U1D)
- Trailer hitch
- 7-pin connector
- Trailer brake controller (JL1)
For the 2024 model year, the package was only available as an option on Elevation, AT4, and Denali while being standard on AT4X.
Meanwhile, the Technology Package (Y5X) is replaced with the Technology Plus Package on the AT4 trim, and includes:
- Adaptive Cruise Control (KSG)
- Rear Pedestrian Alert (UKK)
- HD Surround Vision (UV2)
- Sunroof (CAC)
- Bose Sound System (UQA)
- Multicolor 6.3-inch Diagonal Head-Up Display (UV6)
The Technology Plus Package was technically introduced late in the 2024 model year; it’s available exclusively on the AT4 trim and requires the AT4 Premium Package (PCU).
From there, the AT4X package joins the lineup as an option on the AT4 trim, replacing the standalone AT4X trim level offered for the 2023 and 2024 model years. The package requires the AT4 Premium Package and Technology Plus Package, and includes the following content:
- Trailering Package (Z82)
- Red seatbelt color (3F9)
- All-weather floor mats (LPO AAK)
- Off-Road Rocker Protection (BZT)
- Spray-on bedliner (CGN)
- Electronic, driver-selectable full-locking front differential (G93)
- Electronic, driver-selectable full-locking rear differential (G94)
- Safety Alert Seat (HS1)
- Obsidian Rush interior trim (HV1)
- Sport upper body window moldings (MFI)
- LT285/70R17C Mud Terrain blackwall tires (QAF)
- 17-inch Black High Gloss Machined Finish Aluminum wheels (R34)
- Spare LT285/70R17C MT blackwall tire (RMR)
- In-vehicle Trailering App (U1D)
- Underbody cameras (UXA)
- Drive mode selector adds Baja mode
- Solar glazing front side glass (AGG)
- Off-Road Suspension with 3-inch lift
- Exterior badging
- Interior badging
- Package removes CornerStep rear bumper (BWN)
The AT4X AEV Edition remains a package added on top of the new AT4X package.
And finally, the Bed Pro Utility Package (LPO PDO) is added as an LPO-level (dealer-installed) option that includes:
- Bedside Utility Walls (LPO RVY)
- Front Bed Utility Wall (LPO SJS)
- Utility Wall Strap Kit (LPO S4K)
- Utility Wall Latch Kit (LPO 5WI)
The Bed Pro Utility Package is available across all trim levels.
The updates and changes described here are specific to the U.S. market and may be different for other markets.
Where To From Here?
We expect that the current, third-generation Canyon will remain in production thru at least the 2028 model year. A mid-cycle refresh is expected for either the 2026 or 2027 model years.
