Here Are The Most Power-Dense Engines GM Currently Builds

These days, you don’t need gobs of displacement to make decent power, with things like forced induction and clever tuning making up for the lack of liters. Now, we’re checking out the most power-dense engines that GM currently builds with the following GM Authority tech breakdown.

First off, it bears defining exactly what we mean by the term “power-dense.” Basically, power density refers to peak engine output as it relates to displacement. So, for this particular piece, we’re looking at the GM engine lineup in terms peak horsepower per liter.

At the top of the list, we have GM’s turbocharged 2.0L I4 LTG gasoline engine, which produces a whopping 137.6 horsepower per liter. That equates to a maximum of 275 horsepower at 5,600 rpm and 295 pound-feet of torque at 3,000 rpm.

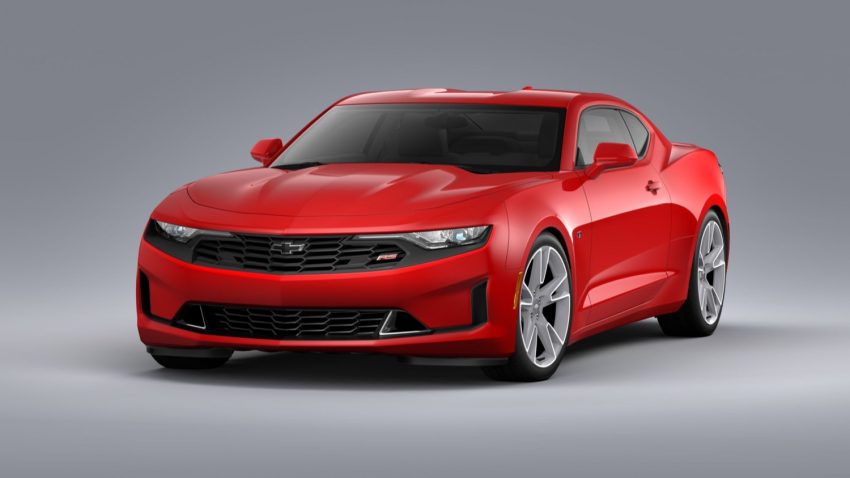

Currently offered under the hood of the Chevy Camaro, the LTG was previously available for the Chevy Malibu (now built out for the 2022 model year) as well as the now-discontinued Cadillac ATS. That said, we should also mention that the LTG is offered in two different states of tune between the Camaro and the Malibu, with the LTG in the Malibu rated at 250 horsepower at 5,400 rpm and 260 pound-feet of torque at 2,000 rpm, making for a power density of 125.1 horsepower per liter. In this particular state of tune, the LTG equipped by the Malibu is the third most power-dense GM engine in our list.

Unfortunately, although the LTG offers impressive power density, its days appear to be numbered, given the uncertain future for the Chevy Camaro, plus the uncertainty of whether or not the engine will once again be available to order for the 2023 Chevy Malibu.

In second place in our list, we have the twin-turbocharged 3.6L V6 LF4, currently equipped by the Cadillac CT4-V Blackwing and rated at 472 horsepower at 5,750 rpm and 445 pound-feet of torque 3,500 rpm, making for 132.4 horsepower per liter. To note, the LF4 was previously available for the now-discontinued Cadillac ATS-V, where it made 464 horsepower and 445 pound-feet of torque.

Finally, we have to mention the fourth-place 5.5L V8 LT6, the highest-ranked naturally aspirated engine on our list. Equipped by the C8 Chevy Corvette Z06, the high-revving LT6 is rated at 670 horsepower at 8,400 rpm and 460 pound-feet of torque at 6,300 rpm, making for 122.6 horsepower per liter.

Check out the full list of the most power-dense GM engines below:

Most Power-Dense GM Engines
Engine Displacement, CC HP @ RPM LB-FT @ RPM HP/L Applications
Turbocharged 2.0L I4 LTG 1,998 275 @ 5,600 295 @ 3,000 to 4,500 137.6 Chevy Camaro
Twin-Turbocharged 3.6L V6 LF4 3,564 472 @ 5,750 445 @ 3,500 to 5,000 132.4 Cadillac CT4-V Blackwing
Turbocharged 2.0L I4 LTG 1,998 250 @ 5,300 260 @ 2,000 to 5,000 125.1 Chevy Malibu
5.5L V8 LT6 5,463 670 @ 8,400 460 @ 6,300 122.6 Chevy Corvette Z06
Twin-Turbocharged 3.0L V6 LGY 2,990 360 @ 5,400 405 @ 2,350 to 4,000 120.4 Cadillac CT5-V
Turbocharged 2.7L I4 L3B 2,727 325 @ 5,500 380 @ 2,000 to 4,000 119.2 Cadillac CT4-V
Turbocharged 2.0L I4 LSY 1,998 237 @ 5,000 258 @ 1,500 to 4,000 118.6 Cadillac CT4, Cadillac CT5
Turbocharged 2.0L I4 LSY 1,998 235 @ 5,000 258 @ 1,500 to 4,000 117.6 Cadillac XT4, Cadillac XT5, Cadillac XT6
Turbocharged 1.3L I3 L3T 1,338 155 @ 5,600 174 @ 1,600 115.8 Buick Encore GX, Chevy Trailblazer
Turbocharged 1.2L I3 LIH 1,193 137 @ 5,000 162 @ 2,500 114.8 Buick Encore GX, Chevy Trailblazer
Turbocharged 2.0L I4 LSY 1,998 228 @ 5,000 258 @ 1,500 to 4,000 114.1 Buick Envision, Chevy Blazer, GMC Acadia
Turbocharged 1.5L I4 LYX 1,490 170 @ 5,600 203 @ 2,000 to 4,000 114.1 Chevy Equinox, GMC Terrain
Turbocharged 2.7L I4 L3B 2,727 310 @ 5,600 430 @ 3,000 113.7 Chevy Silverado 1500, GMC Sierra 1500
Turbocharged 2.7L I4 L3B 2,727 310 @ 5,500 350 @ 1,500 to 4,000 113.7 Cadillac CT4
Twin-Turbocharged 3.0L V6 LGY 2,990 335 @ 5,400 405 @ 2,350 to 4,000 112.0 Cadillac CT5
Turbocharged 1.4L I4 LE2 1,399 155 @ 5,600 177 @ 2,000 to 4,000 110.8 Buick Encore, Chevy Trax
Supercharged 6.2L V8 LT4 6,162 682 @ 6,000 653 @ 4,400 110.7 Cadillac Escalade-V
Turbocharged 1.5L I4 LFV 1,490 163 @ 5,700 184 @ 2,500 to 3,000 109.4 Chevy Malibu
Supercharged 6.2L V8 LT4 6,162 668 @ 6,500 659 @ 3,600 108.4 Cadillac CT5-V Blackwing
Supercharged 6.2L V8 LT4 6,162 650 @ 6,400 650 @ 3,600 105.5 Chevy Camaro ZL1
Turbo-diesel 3.0L I6 LM2 2,993 277 @ 3,750 460 @ 1,500 92.5 Cadillac Escalade, Chevy Silverado 1500, Chevy Suburban, Chevy Tahoe, GMC Sierra 1500, GMC Yukon, GMC Yukon XL
3.6L V6 LGX 3,641 335 @ 6,800 284 @ 5,300 92.0 Chevy Camaro
3.6L V6 LGX 3,649 310 @ 6,800 266 @ 2,800 85.0 Buick Enclave, Cadillac XT5, Cadillac XT6, Chevy Traverse
3.6L V6 LGX 3,649 310 @ 6,600 271 @ 5,000 85.0 Cadillac XT5, Cadillac XT6, GMC Acadia
3.6L V6 LGX 3,649 308 @ 6,700 270 @ 5,000 84.4 Chevy Blazer
3.6L V6 LGX 3,649 308 @ 6,800 275 @ 4,000 84.4 Chevy Colorado, GMC Canyon
2.5L I4 LCV 2,457 200 @ 6,300 191 @ 4,400 81.4 Chevy Colorado, GMC Canyon
6.2L V8 LT2 w/Performance Exhaust 6,162 495 @ 6,450 470 @ 5,150 80.3 Chevy Corvette Stingray
6.2L V8 LT2 6,162 490 @ 6,450 465 @ 5,150 76.3 Chevy Corvette Stingray
6.2L V8 LT1 6,162 455 @ 6,000 455 @ 4,400 73.8 Chevy Camaro
1.4L I4 LV7 1,399 98 @ 6,200 94 @ 4,400 70.1 Chevy Spark
6.2L V8 L87 6,162 420 @ 5,600 460 @ 4,100 68.2 Cadillac Escalade, Chevy Silverado 1500, Chevy Suburban, Chevy Tahoe, GMC Sierra 1500, GMC Yukon, GMC Yukon XL
Turbo-diesel 6.6L V8 L5P 6,599 445 @ 2,800 910 @ 1,600 67.4 Chevy Silverado HD, Chevy Silverado MD, GMC Sierra HD
5.3L V8 L84 5,327 355 @ 5,600 383 @ 4,100 66.6 Chevy Silverado 1500, Chevy Suburban, Chevy Tahoe, GMC Sierra 1500, GMC Yukon, GMC Yukon XL
Turbo-diesel 2.8L I4 LWN 2,776 181 @ 3,400 369 @ 2,000 65.2 Chevy Colorado, Chevy Express, GMC Canyon, GMC Savana
4.3L V8 LV1 4,300 276 @ 5,200 298 @ 3,900 64.2 Chevy Express, GMC Savana
6.6L V8 L8T 6,564 401 @ 5,200 464 @ 4,000 61.1 Chevy Express, Chevy Silverado HD, GMC Sierra HD, GMC Savana
