GM Files Patent For Tow Hitch Angle Determination System For Vehicles With Four-Wheel Steer
8
Sponsored Links
GM has filed a patent application for a new type of tow hitch designed to work on vehicles with a four-wheel steering system.
This GM patent filing has been assigned application number US 2021/0380109 with the United States Patent and Trademark Office (USPTO) and was published on December 9th, 2021. It’s titled “system and method for determining a hitch angle for controlling a vehicle with active rear steering” and lists Canadian engineers Sepehr Pourrezaei Khaligh and Akram M. Abdel-Rahman as the inventors.
According to the patent filing, this tow hitch design uses a computer processor to “estimate a rate of change of a hitch angle between a trailer and vehicle” in vehicles equipped with four-wheel steering. The estimated rate of change of the hitch angle, in this instance, would be based on the turn angle of the rear wheels of the vehicle, as well as the speed of the vehicle and its angular velocity. In other words, this technology would use steering input/angle, as well as the vehicle’s speed and the angular velocity of the vehicle/trailer, to automatically adjust the hitch angle when towing a trailer.

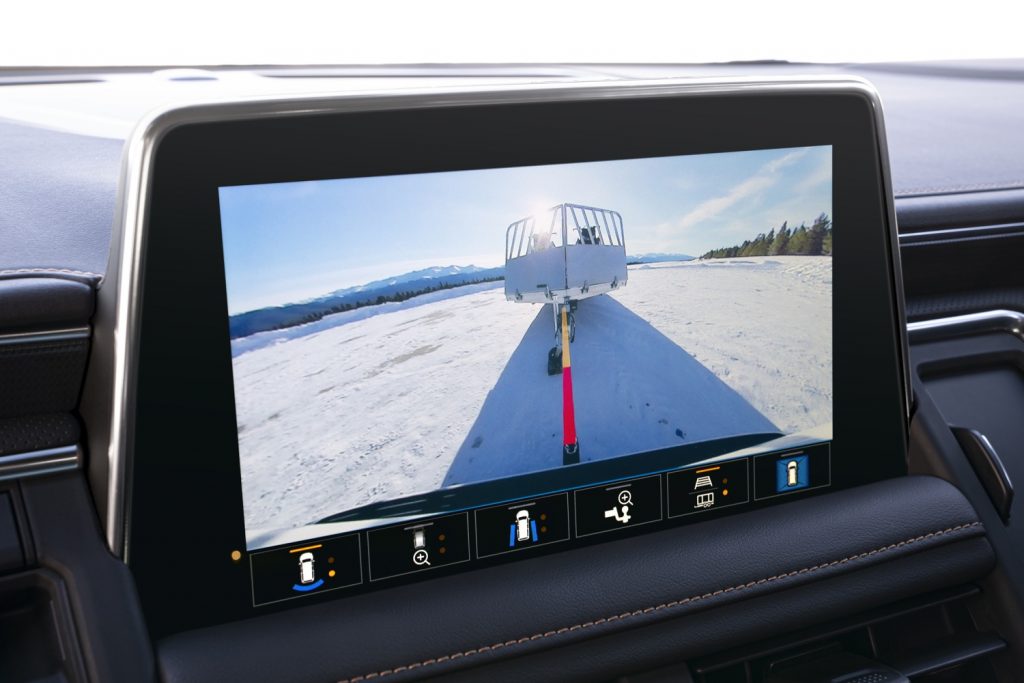

The patent notes that driver assistance systems for towing, such as steering assistance and screen guidelines on a digital display screen, are currently not compatible on vehicles with rear-wheel steering, as they are unable to properly predict/detect the hitch angle of the trailer. This would result in inaccurate steering assistance/guidance graphics. This trailer hitch design aims to solve this problem, ensuring the vehicle’s driver assistance systems can properly predict the hitch angle of a trailer and enable towing assist features in future GM trucks with four-wheel steer.
As GM Authority reported previously, the 2024 Chevy Silverado EV will offer a Max Towing Package that will include four-wheel steering. This feature will ensure the battery-electric pickup is maneuverable even when towing a large trailer behind it, which could be helpful in cities/metro areas and on job sites. This patent filing could therefore be for this application, although GM has not yet mentioned this innovative trailer hitch in any official media material for the Silverado EV.
Subscribe to GM Authority for GM more patent filing news and around-the-clock GM news coverage.
