The Chevy Trailblazer recently received a new rival on the way of the 2022 Toyota Corolla Cross. This subcompact crossover slots in between the uber-tiny Toyota CH-R and compact Toyota RAV4 in the Japanese automaker’s lineup, but how does it measure up against the Trailblazer from a dimensional standpoint? Let’s find out.
Exterior Dimensions
The 2022 Chevy Trailblazer and 2022 Toyota Corolla Cross have the exact same wheelbase length, coming in at 103.9 inches. The Corolla Cross is slightly bigger when accounting for the bodywork, though, coming in at 71.6-inches versus the Trailblazer’s overall length of 71.2-inches. The Trailblazer is also half an inch taller than the Corolla Cross and has an extra half-inch of ground clearance with front-wheel-drive. The AWD variants of both crossovers have more ground clearance than FWD models, however the Corolla Cross AWD still has an extra 2mm of ground clearance over the Chevy.
| Dimension | Chevy Trailblazer FWD | Toyota Corolla Cross FWD | +/- Chevy Trailblazer FWD | Chevy Trailblazer AWD | Toyota Corolla Cross AWD | +/- Chevy Trailblazer AWD |
|---|---|---|---|---|---|---|
| Wheelbase (in.) | 103.9 | 103.9 | 0 | 103.9 | 103.9 | 0 |
| Overall Length (in.) | 173.5 | 175.6 | -2.1 | 173.5 | 175.6 | -2.1 |
| Overall Width (in.) | 71.2 | 71.6 | -0.4 | 71.2 | 71.6 | -0.4 |
| Overall Height (in.) | 65.3 | 64.8 | +0.5 | 65.7 | 64.8 | +0.9 |
| Front Track (in.) | 61.2 | TBD | - | 61.2 | TBD | - |
| Rear Track (in.) | 61.3 | TBD | - | 61.3 | TBD | - |
| Maximum Ground Clearance (in.) | 7.6 | 8.1 | -0.5 | 8.0 | 8.1 | -0.1 |
| Dimension | Chevy Trailblazer FWD | Toyota Corolla Cross FWD | +/- Chevy Trailblazer FWD | Chevy Trailblazer AWD | Toyota Corolla Cross AWD | +/- Chevy Trailblazer AWD |
|---|---|---|---|---|---|---|
| Wheelbase (mm) | 2639 | 2639 | 0 | 2639 | 2639 | 0 |
| Overall Length (mm) | 4407 | 4460 | -53 | 4407 | 4460 | -53 |
| Overall Width (mm) | 1808 | 1826 | -18 | 1808 | 1826 | -18 |
| Overall Height (mm) | 1659 | 1646 | +13 | 1669 | 1646 | +23 |
| Front Track (mm) | 1554 | TBD | - | 1554 | TBD | - |
| Rear Track (mm) | 1557 | TBD | - | 1557 | TBD | - |
| Maximum Ground Clearance (mm) | 193 | 206 | -13 | 203 | 206 | -3 |
Interior Dimensions
Now let’s move inside. Up front, the Trailblazer has an extra half inch of headroom over the Corolla Cross, along with 2.7 inches more shoulder room. The Corolla Cross has two inches more front row legroom, however, and an additional 2.7 inches of shoulder room.
The Trailblazer’s clever packaging really shows in the backseat, where the Chevy has a huge 7.4 inches of additional rear legroom, 1.4-inches more shoulder room and 6.6 inches more hip room. Second-row passengers in the Toyota will enjoy an additional 0.7 inches of headroom over the Chevy, however.
| Dimension | Chevy Trailblazer | Toyota Corolla Cross | +/- Chevy Trailblazer |
|---|---|---|---|
| First Row Headroom (in.) | 40.0 | 39.5 | +0.5 |
| First Row Legroom (in.) | 40.9 | 42.9 | -2 |
| First Row Shoulder Room (in.) | 55.4 | 52.7 | +2.7 |
| First Row Hip Room (in.) | 52.3 | 52.6 | -0.3 |
| Second Row Headroom (in.) | 38.4 | 39.1 | -0.7 |
| Second Row Legroom (in.) | 39.4 | 32.0 | +7.4 |
| Second Row Shoulder Room (in.) | 53.8 | 52.4 | +1.4 |
| Second Row Hip Room (in.) | 50.4 | 43.8 | +6.6 |
| Dimension | Chevy Trailblazer | Toyota Corolla Cross | +/- Chevy Trailblazer |
|---|---|---|---|
| First Row Headroom (mm) | 1016 | 1003 | +13 |
| First Row Legroom (mm) | 1039 | 1090 | -51 |
| First Row Shoulder Room (mm) | 1408 | 1339 | +69 |
| First Row Hip Room (mm) | 1328 | 1336 | -8 |
| Second Row Headroom (mm) | 975 | 993 | -18 |
| Second Row Legroom (mm) | 1001 | 813 | +188 |
| Second Row Shoulder Room (mm) | 1367 | 1331 | +36 |
| Second Row Hip Room (mm) | 1280 | 1113 | +167 |
Cargo Dimensions

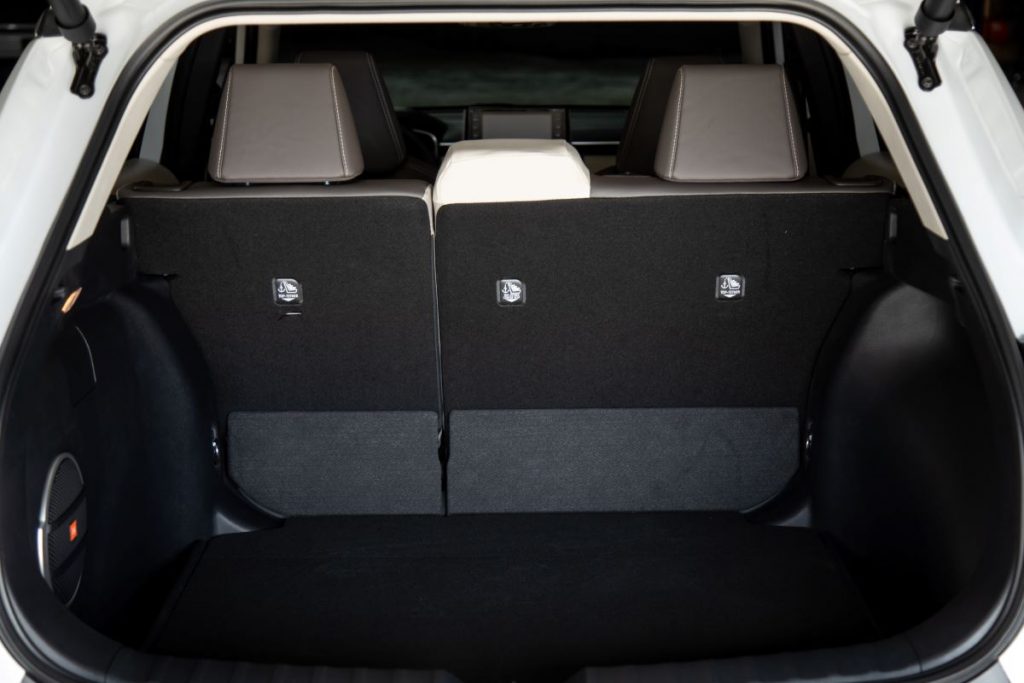

These two crossovers are almost equal with regard to cargo capacity. Behind the second row, the Trailblazer boasts 25.3 cubic feet of cargo space, while the Toyota has slightly more at 25.5 inches. The AWD version of the Corolla Cross loses some cargo capacity, however, dropping down to 24.3 inches. Meanwhile, Chevy managed to retain the exact same cargo capacity in AWD versions of the Trailblazer.
Toyota has yet to confirm cargo capacity of the Corolla Cross with the second row folded. The Trailblazer, for reference, has 54.4 cubic feet of cargo space with the rear seats folded flat.
| Dimension | Chevy Trailblazer FWD | Toyota Corolla Cross FWD | +/- Chevy Trailblazer FWD | Chevy Trailblazer AWD | Toyota Corolla Cross AWD | +/- Chevy Trailblazer AWD |
|---|---|---|---|---|---|---|
| Cargo Volume Behind First Row (cu. ft.) | 54.4 | TBD | - | 54.4 | TBD | - |
| Cargo Volume Behind Second Row (cu. ft.) | 25.3 | 25.5 | -0.2 | 25.3 | 24.3 | +1 |
| Dimension | Chevy Trailblazer FWD | Toyota Corolla Cross FWD | +/- Chevy Trailblazer FWD | Chevy Trailblazer AWD | Toyota Corolla Cross AWD | +/- Chevy Trailblazer AWD |
|---|---|---|---|---|---|---|
| Cargo Volume Behind First Row (liters) | 1540 | TBD | - | 1540 | TBD | - |
| Cargo Volume Behind Second Row (liters) | 716 | 722 | -6 | 716 | 688 | +28 |
