2022 GMC Terrain vs. 2022 Mitsubishi Outlander: Dimensional Comparison
2
Sponsored Links
Earlier this week, we compared the dimensions of the 2022 Chevy Equinox with one of its newest and most up-to-date rivals, the 2022 Mitsubishi Outlander. Now we’re going to see how the Japanese crossover compares to another compact crossover from General Motors, the 2022 GMC Terrain.
Exterior Dimensions
Like the Equinox, the 2022 GMC Terrain has a longer wheelbase than the Mitsubishi Outlander. The Terrain’s wheelbase measures in at 107.3 inches, while the Outlander’s is slightly shorter at 106.5 inches. The Outlander is 3.1 inches longer than the Terrain when accounting for the bodywork of the crossovers, however, and is also 2.3 inches wider and 3.3 inches taller. The Outlander also has wider front and rear tracks and 0.4 inches more ground clearance than the Terrain.
| Dimension | GMC Terrain | Mitsubishi Outlander | +/- GMC Terrain |
|---|---|---|---|
| Wheelbase (in.) | 107.3 | 106.5 | +0.8 |
| Overall Length (in.) | 182.3 | 185.4 | -3.1 |
| Overall Width (in.) | 72.4 | 74.7 | -2.3 |
| Overall Height (in.) | 65.4 | 68.7 | -3.3 |
| Front Track (in.) | 62.3 | 62.7 | -0.4 |
| Rear Track (in.) | 62.5 | 63.1 | -0.6 |
| Maximum Ground Clearance (in.) | 7.9 | 8.3 | -0.4 |
| Dimension | GMC Terrain | Mitsubishi Outlander | +/- GMC Terrain |
|---|---|---|---|
| Wheelbase (mm) | 2725 | 2706 | +19 |
| Overall Length (mm) | 4630 | 4710 | -80 |
| Overall Width (mm) | 1839 | 1897 | -58 |
| Overall Height (mm) | 1661 | 1748 | -87 |
| Front Track (mm) | 1582 | 1593 | -11 |
| Rear Track (mm) | 1587 | 1603 | -16 |
| Maximum Ground Clearance (mm) | 205 | 211 | -6 |
Interior Dimensions
As a result of its larger exterior dimensions, the Outlander is more spacious inside as well. The Mitsubishi has an extra 0.6 inches of first-row headroom on the Terrain, along with an additional 0.8 inches of first-row legroom. It also has an extra 0.7 inches of first-row shoulder room, although the Terrain beats it with regard to first-row hip room with an additional 0.4 inches of space.

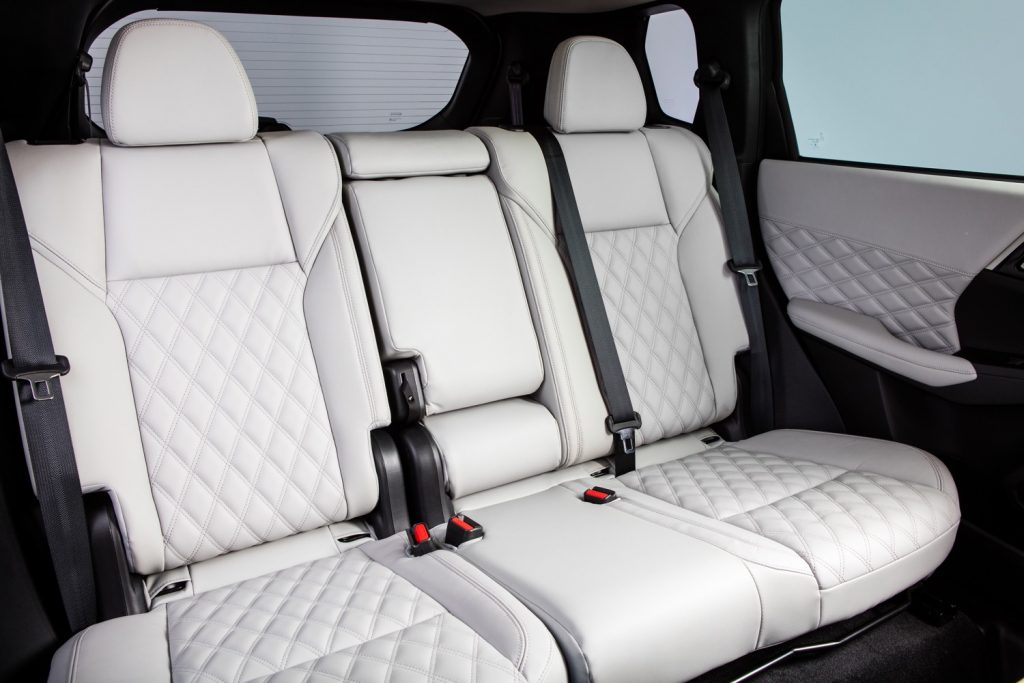

It’s a similar story with second-row spaciousness. The Outlander gets an additional 0.6 inches of second-row headroom along with 0.2 inches more legroom. It also has an extra 0.3 inches of second-row shoulder room and 1.5 inches more hip room.
| Dimension | GMC Terrain | Mitsubishi Outlander | +/- GMC Terrain |
|---|---|---|---|
| First Row Headroom (in.) | 40.0 | 40.6 | -0.6 |
| First Row Legroom (in.) | 40.9 | 41.7 | -0.8 |
| First Row Shoulder Room (in.) | 57.2 | 57.9 | -0.7 |
| First Row Hip Room (in.) | 54.4 | 54.0 | +0.4 |
| Second Row Headroom (in.) | 38.5 | 39.1 | -0.6 |
| Second Row Legroom (in.) | 39.7 | 39.9 | -0.2 |
| Second Row Shoulder Room (in.) | 55.6 | 55.9 | -0.3 |
| Second Row Hip Room (in.) | 51.8 | 53.3 | -1.5 |
| Third Row Headroom (in.) | - | 34.5 | - |
| Third Row Legroom (in.) | - | 18.7 | - |
| Third Row Shoulder Room (in.) | - | 51.2 | - |
| Third Row Hip Room (in.) | - | 42.1 | - |
Just like the Equinox, the GMC Terrain has no third row. That means the Mitsubishi has it beat in this regard, although the Outlander’s third row is still quite small. For reference, third-row passengers of the Outlander will have 34.5 inches of total headroom, 18.7 inches of legroom, 51.2 inches of shoulder room and 42.1 inches of hip room.
| Dimension | GMC Terrain | Mitsubishi Outlander | +/- GMC Terrain |
|---|---|---|---|
| First Row Headroom (mm) | 1016 | 1031 | -15 |
| First Row Legroom (mm) | 1040 | 1059 | -19 |
| First Row Shoulder Room (mm) | 1453 | 1471 | -18 |
| First Row Hip Room (mm) | 1382 | 1372 | +10 |
| Second Row Headroom (mm) | 970 | 993 | -23 |
| Second Row Legroom (mm) | 1008 | 1013 | -5 |
| Second Row Shoulder Room (mm) | 1412 | 1420 | -8 |
| Second Row Hip Room (mm) | 1316 | 1354 | -38 |
| Third Row Headroom (mm) | - | 876 | - |
| Third Row Legroom (mm) | - | 475 | - |
| Third Row Shoulder Room (mm) | - | 1300 | - |
| Third Row Hip Room (mm) | - | 1069 | - |
Cargo Dimensions

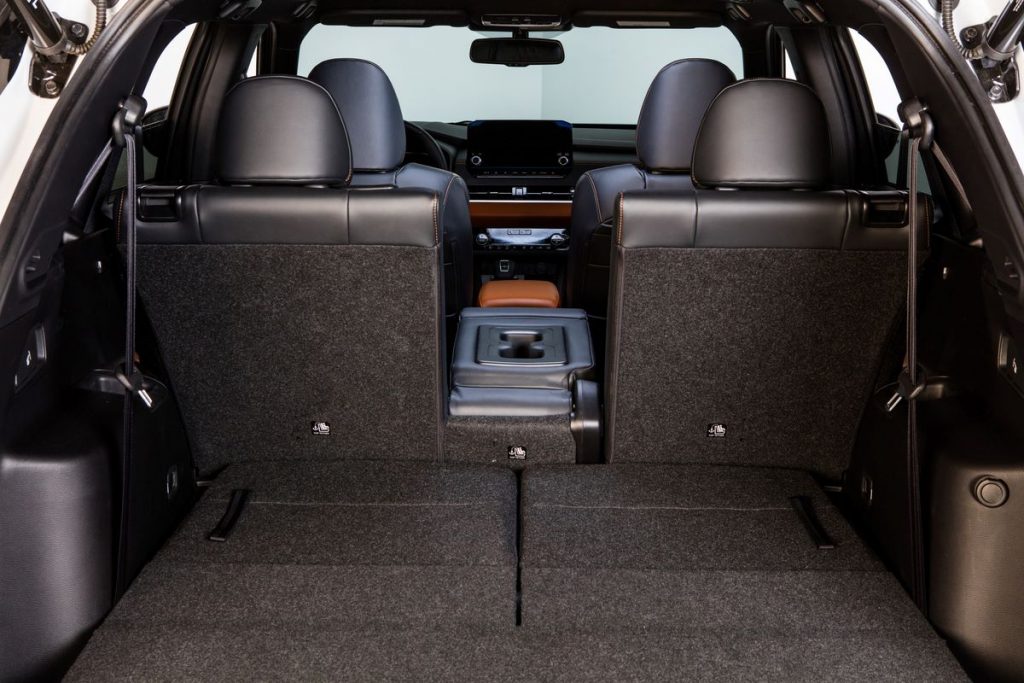

Now let’s turn our attention to the crossovers’ cargo areas. The Outlander boasts 11.7 cubic feet of cargo space behind the third row, 33.5 cubic feet of space with the second row folded flat and 79.7 cubic feet with all the rear seats folded down. The Terrain, meanwhile, has 29.6 cubic feet of space behind the second row and 63.3 cubic feet of cargo space with the rear benches folded.
| Dimension | GMC Terrain | Mitsubishi Outlander | +/- GMC Terrain |
|---|---|---|---|
| Cargo Volume Behind First Row (cu. ft.) | 63.3 | 79.7 | -16.4 |
| Cargo Volume Behind Second Row (cu. ft.) | 29.6 | 33.5 | -3.9 |
| Cargo Volume Behind Third Row (cu. ft.) | - | 11.7 | - |
| Dimension | GMC Terrain | Mitsubishi Outlander | +/- GMC Terrain |
|---|---|---|---|
| Cargo Volume Behind First Row (liters) | 1792 | 2257 | -465 |
| Cargo Volume Behind Second Row (liters) | 838 | 949 | -111 |
| Cargo Volume Behind Third Row (liters) | - | 331 | - |
Pricing for the 2022 Mitsubishi Outlander starts at $26,990. While GM has not announced pricing for the 2022 GMC Terrain yet, the pre-updated 2021 model-year crossover is priced from $26,195 including destination.
Be sure to subscribe to GM Authority for more GMC Terrain news, GMC news and around-the-clock GM news coverage.
- Sweepstakes Of The Month: Win a 2023 Corvette Z06 Convertible. Details here.
Sponsored Links

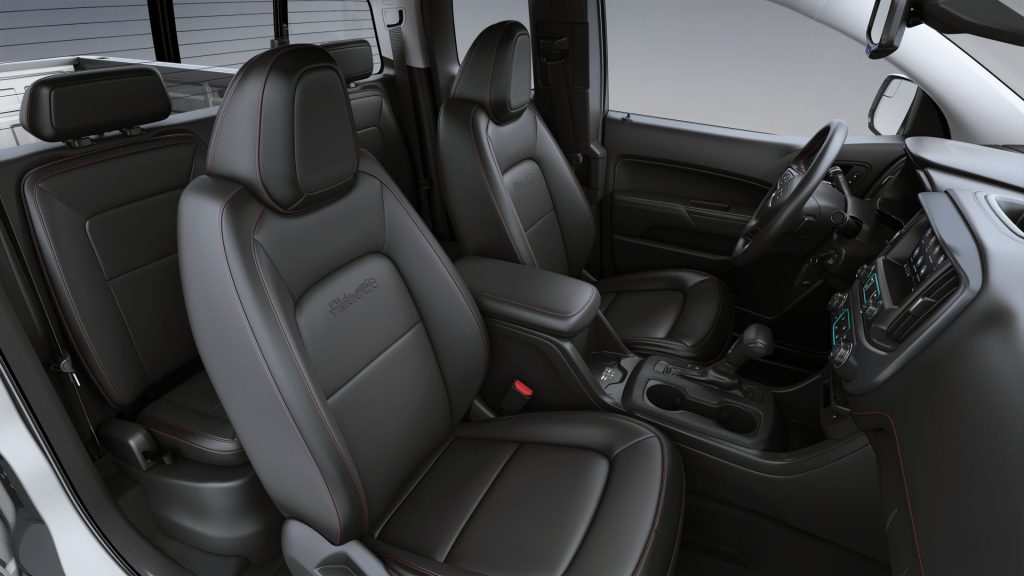

You guys realize that you have the interior pic of the canyon/Colorado instead of the terrain right? Also, Jatco has entered the chat
