GM debuted the Cadillac XT6 crossover utility vehicle (CUV) in January of 2019 at the North American International Auto Show in Detroit. Slotting in as the largest CUV in Cadillac’s line of crossovers, the XT6 offers three rows to accommodate up to seven passengers. So how does it compare to its crosstown rival, the similarly all-new Lincoln Aviator? To find out, we dug out the spec sheets, placing both luxury crossovers side-by-side in the following GM Authority Dimensional Comparison.
Cadillac XT6
Lincoln Aviator
Exterior Dimensions
To kick things off, let’s take a look at the exterior dimensions for both vehicles.
One quick glance at our comparison breakdown immediately reveals one thing – the Cadillac XT6 is definitely smaller than the Lincoln Aviator. This is most obvious when looking at the wheelbase and overall width for the CUVs, with the Aviator having an additional 6.4 inches and 2.3 inches, respectively, compared to the XT6. It’s worth noting that the wheelbase of the XT6 is shorter than that of the Aviator due to the Cadillac being derived from a front-drive architecture (the GM C1 platform), while the Aviator has rear-drive underpinnings (the Ford CD6 platform).
Most of the other XT6 specs are also down, including the overall length (-0.5 inches), front track (-0.5 inches), and rear track (-0.7 inches). The only exception here is overall height, with the XT6 standing 0.4 inches taller than the Aviator.
To note, the overall width measurements for both vehicles listed here do not include the sideview mirror width, while the overall heights do include the luggage rack.
| Dimension | Cadillac XT6 | Lincoln Aviator | +/- Cadillac XT6 |
|---|---|---|---|
| Wheelbase (in.) | 112.7 | 119.1 | -6.4 |
| Overall Length (in.) | 198.8 | 199.3 | -0.5 |
| Overall Width (in.) | 77.3 | 79.6 | -2.3 |
| Overall Height (in.) | 70.2 | 69.8 | +0.4 |
| Front Track (in.) | 66.4 | 66.9 | -0.5 |
| Rear Track (in.) | 66.2 | 66.9 | -0.7 |
| Dimension | Cadillac XT6 | Lincoln Aviator | +/- Cadillac XT6 |
|---|---|---|---|
| Wheelbase (mm) | 2863 | 3025 | -162.6 |
| Overall Length (mm) | 5050 | 5062 | -12.7 |
| Overall Width (mm) | 1963 | 2022 | -58.4 |
| Overall Height (mm) | 1783 | 1773 | +10.2 |
| Front Track (mm) | 1687 | 1699 | -12.7 |
| Rear Track (mm) | 1681 | 1699 | -17.8 |
Cadillac XT6
Lincoln Aviator
Interior Dimensions
Inside the cabin, there are quite a few differences between the Cadillac XT6 and Lincoln Aviator in terms of available room, with the Caddy posting a loss to the Lincoln in several important measurements.
The biggest differences are in first-row shoulder room, first-row hip room, second-row shoulder room, and second-row hip room, with the Lincoln offering an extra 3.2 inches, 2.4 inches, 3.9 inches, and 2.6 inches, respectively. The Lincoln also has more first-row legroom, third-row shoulder room, and third-row hip room than the Cadillac.
The XT6 does manage to eke out a few victories, the biggest of which are in first-row headroom and second-row headroom, posting an extra 1.1 inches and 0.7 inches, respectively. Second-row legroom, third-row headroom, and third-row legroom are also greater in the Caddy, although only slightly.
To note, the headroom measurements listed here include the sunroof.
| Dimension | Cadillac XT6 | Lincoln Aviator | +/- Cadillac XT6 |
|---|---|---|---|
| First Row Headroom (in.) | 39.8 | 38.7 | +1.1 |
| First Row Legroom (in.) | 41.2 | 43 | -1.8 |
| First Row Shoulder Room (in.) | 58.3 | 61.5 | -3.2 |
| First Row Hip Room (in.) | 56.1 | 58.5 | -2.4 |
| Second Row Headroom (in.) | 39.1 | 38.4 | +0.7 |
| Second Row Legroom (in.) | 39.1 | 39 | +0.1 |
| Second Row Shoulder Room (in.) | 57.4 | 61.3 | -3.9 |
| Second Row Hip Room (in.) | 55.7 | 58.3 | -2.6 |
| Third Row Headroom (in.) | 37.2 | 36.9 | +0.3 |
| Third Row Legroom (in.) | 29.5 | 29.2 | +0.3 |
| Third Row Shoulder Room (in.) | 53.5 | 54 | -0.5 |
| Third Row Hip Room (in.) | 39.5 | 40.9 | -1.4 |
| Dimension | Cadillac XT6 | Lincoln Aviator | +/- Cadillac XT6 |
|---|---|---|---|
| First Row Headroom (mm) | 1011 | 983 | +27.9 |
| First Row Legroom (mm) | 1046 | 1092 | -45.7 |
| First Row Shoulder Room (mm) | 1481 | 1562 | -81.3 |
| First Row Hip Room (mm) | 1425 | 1486 | -61 |
| Second Row Headroom (mm) | 993 | 975 | +17.8 |
| Second Row Legroom (mm) | 993 | 991 | +2.5 |
| Second Row Shoulder Room (mm) | 1458 | 1557 | -99.1 |
| Second Row Hip Room (mm) | 1415 | 1481 | -66 |
| Third Row Headroom (mm) | 945 | 937 | +7.6 |
| Third Row Legroom (mm) | 749 | 742 | +7.6 |
| Third Row Shoulder Room (mm) | 1359 | 1372 | -12.7 |
| Third Row Hip Room (mm) | 1003 | 1039 | -35.6 |
Cadillac XT6
Lincoln Aviator

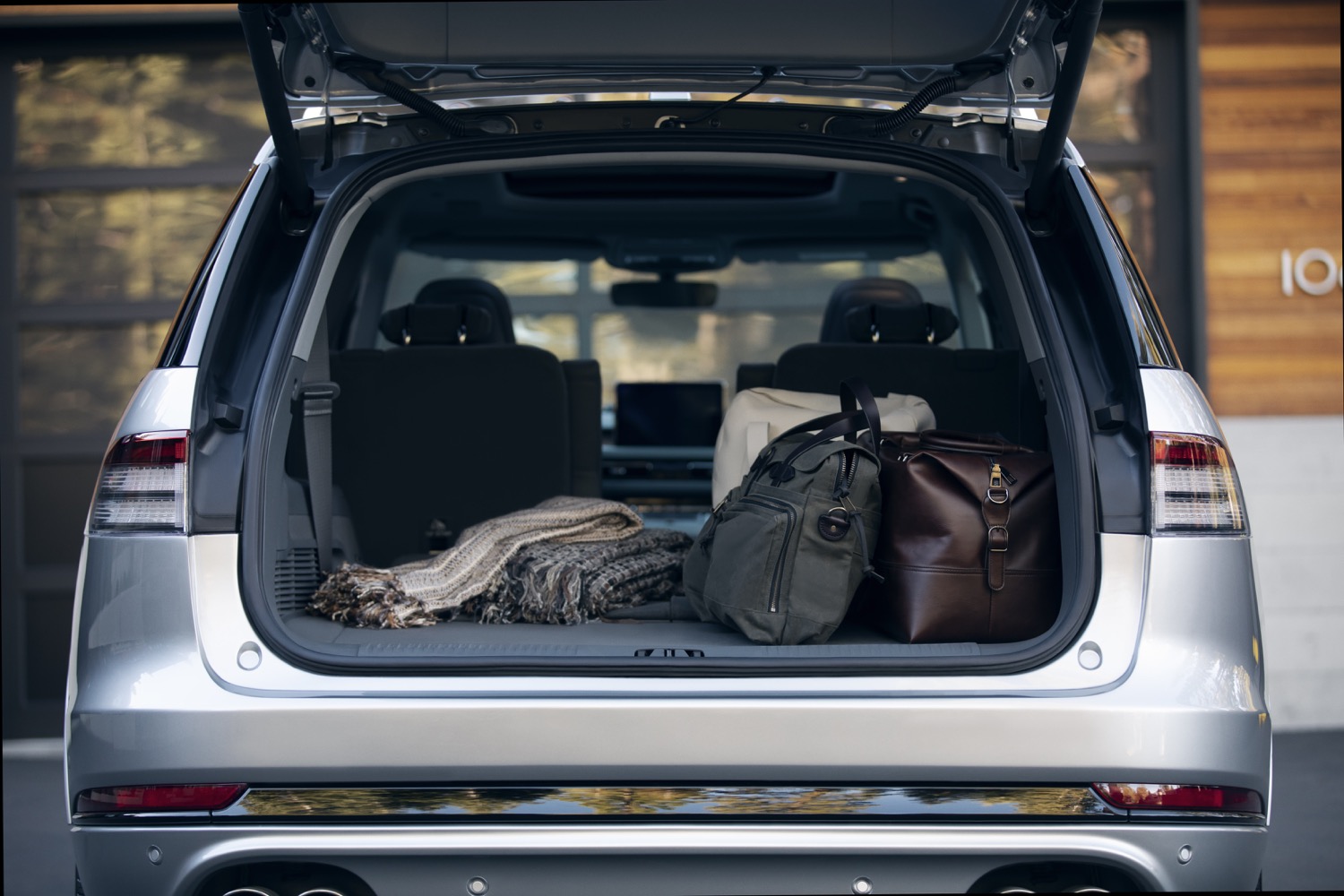

Cargo Dimensions
The final measurements we’re covering here are the cargo dimensions, which can be pretty important for those owners that plan on actually filling their CUV with stuff. Here, we see the Cadillac XT6 besting the Lincoln Aviator in terms of available space behind the first and second rows, with an extra cubic-foot for both measurements. Unfortunately, the Caddy is down 6 cubic-feet behind the third row when compared to the Lincoln.
| Dimension | Cadillac XT6 | Lincoln Aviator | +/- Cadillac XT6 |
|---|---|---|---|
| Cargo Volume Behind First Row (cu. ft.) | 78.7 | 77.7 | +1 |
| Cargo Volume Behind Second Row (cu. ft.) | 43.1 | 41.8 | +1 |
| Cargo Volume Behind Third Row (cu. ft.) | 12.6 | 18.3 | -6 |
| Dimension | Cadillac XT6 | Lincoln Aviator | +/- Cadillac XT6 |
|---|---|---|---|
| Cargo Volume Behind First Row (L) | 2229 | 2200 | +28 |
| Cargo Volume Behind Second Row (L) | 1220 | 1184 | +37 |
| Cargo Colume Behind Third Row (L) | 357 | 518 | -161 |
We’ll continue bringing you the latest on all things GM and Cadillac, so be sure to subscribe to GM Authority for more Cadillac XT6 news, Cadillac news, and ongoing GM news coverage.
