The all-new 2021 Cadillac Escalade is now official, making its presence known in a special debut event in Hollywood, California. With a ground-up overhaul starting with the GM T1 vehicle platform, fresh styling inside and out, and a long list of features and updates, the new Escalade is markedly changed from the outgoing 2020 model year. Now, we’re diving into the spec sheet to parse out how the 2021 Cadillac Escalade differs from the previous model with regard to exterior dimensions, interior dimensions, and cargo dimensions in the following GM Authority Dimensional Comparison.

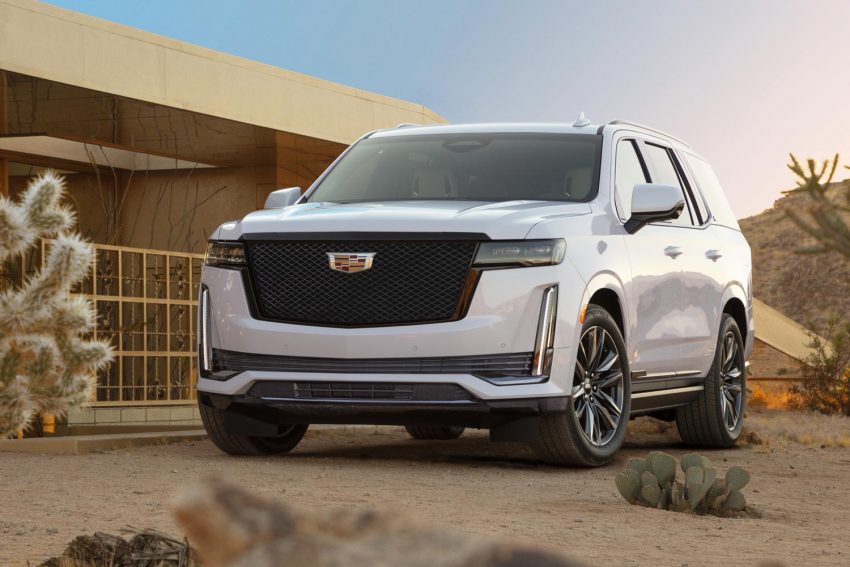

2021 Cadillac Escalade
2015 – 2020 Cadillac Escalade
Exterior Dimensions
Starting outside, we find the new 2021 Cadillac Escalade looks quite a bit different from the preceding model. What’s more, the new Escalade is significantly larger than before, gaining size in nearly every single dimension.
The standard-length Escalade adds nearly five inches to the wheelbase, while gaining a little over seven inches in overall length, half an inch in overall width, and 2.2 inches in overall height. Meanwhile, the front and rear track are a little narrower, losing 0.2 inches and 0.4 inches respectively.
| Dimension | 2021 Cadillac Escalade | Previous-Gen Escalade | +/- 2021 Escalade |
|---|---|---|---|
| Wheelbase (in.) | 120.9 | 116 | +4.9 |
| Overall Length (in.) | 211 | 203.9 | +7.1 |
| Overall Width (in.) | 81 | 80.5 | +0.5 |
| Overall Height (in.) | 76.6 | 74.4 | +2.2 |
| Front Track (in.) | 68.5 | 68.7 | -0.2 |
| Rear Track (in.) | 68.3 | 68.7 | -0.4 |
| Dimension | 2021 Cadillac Escalade | Previous-Gen Escalade | +/- 2021 Escalade |
|---|---|---|---|
| Wheelbase (mm) | 3071 | 2946 | +125 |
| Overall Length (mm) | 5382 | 5179 | +203 |
| Overall Width (mm) | 2059 | 2045 | +14 |
| Overall Height (mm) | 1948 | 1890 | +58 |
| Front Track (mm) | 1737 | 1745 | -8 |
| Rear Track (mm) | 1730 | 1745 | -15 |
2021 Cadillac Escalade
2015-2020 Cadillac Escalade
Interior Dimensions
Moving inside the cabin, we find the larger exterior dimensions help to pad a larger interior space as well, but perhaps not as much as one might think considering the big gains seen outside the vehicle.
For the standard-length 2021 Cadillac Escalade, gains are seen everywhere, with the exception of first-row headroom and legroom, which lose 0.5 inches and 0.8 inches, respectively. The rest of the measurements are up by tenths of an inch, while second-row legroom is up 2.7 inches and third-row legroom is up a whopping 10.1 inches.
| Dimension | 2021 Cadillac Escalade | Previous-Gen Escalade | +/- 2021 Escalade |
|---|---|---|---|
| First Row Headroom (in.) | 42.3 | 42.8 | -0.5 |
| First Row Legroom (in.) | 44.5 | 45.3 | -0.8 |
| First Row Shoulder Room (in.) | 65.5 | 64.9 | +0.6 |
| First Row Hip Room (in.) | 61.7 | 60.9 | +0.8 |
| Second Row Headroom (in.) | 38.9 | 38.7 | +0.2 |
| Second Row Legroom (in.) | 41.7 | 39 | +2.7 |
| Second Row Shoulder Room (in.) | 64.6 | 64.4 | +0.2 |
| Second Row Hip Room (in.) | 61.2 | 60.2 | +1 |
| Third Row Headroom (in.) | 38.2 | 38.1 | +0.1 |
| Third Row Legroom (in.) | 34.9 | 24.8 | +10.1 |
| Third Row Shoulder Room (in.) | 62.7 | 62.6 | +0.1 |
| Third Row Hip Room (in.) | 49.4 | 49.3 | +0.1 |
| Dimension | 2021 Cadillac Escalade | Previous-Gen Escalade | +/- 2021 Escalade |
|---|---|---|---|
| First Row Headroom (mm) | 1074 | 1087 | -13 |
| First Row Legroom (mm) | 1131 | 1151 | -20 |
| First Row Shoulder Room (mm) | 1664 | 1648 | +16 |
| First Row Hip Room (mm) | 1567 | 1547 | +20 |
| Second Row Headroom (mm) | 988 | 983 | +5 |
| Second Row Legroom (mm) | 1060 | 991 | +69 |
| Second Row Shoulder Room (mm) | 1641 | 1636 | +5 |
| Second Row Hip Room (mm) | 1554 | 1529 | +25 |
| Third Row Headroom (mm) | 970 | 968 | +2 |
| Third Row Legroom (mm) | 886 | 630 | +256 |
| Third Row Shoulder Room (mm) | 1592 | 1590 | +2 |
| Third Row Hip Room (mm) | 1255 | 1252 | +3 |
2021 Cadillac Escalade
2015-2020 Cadillac Escalade
Cargo Dimensions
Finally, we’re looking at the cargo room, which is up across the board for the standard 2021 Cadillac Escalade, adding nearly 15 cubic feet behind the first row, 11.4 cubic feet behind the second row, and 10.3 cubic feet behind the third row.
| Dimension | 2021 Cadillac Escalade | Previous-Gen Escalade | +/- 2021 Escalade |
|---|---|---|---|
| Cargo Volume Behind First Row (cu. ft.) | 109.1 | 94.2 | +14.9 |
| Cargo Volume Behind Second Row (cu. ft.) | 63 | 51.6 | +11.4 |
| Cargo Volume Behind Third Row (cu. ft.) | 25.5 | 15.2 | +10.3 |
| Dimension | 2021 Cadillac Escalade | Previous-Gen Escalade | +/- 2021 Escalade |
|---|---|---|---|
| Cargo Volume Behind First Row (L) | 3089 | 2667 | +422 |
| Cargo Volume Behind Second Row (L) | 1784 | 1461 | +323 |
| Cargo Volume Behind Third Row (L) | 722 | 430 | +292 |
