2021 Chevrolet Suburban vs. Last-Gen Suburban: Dimensional Comparison
16
Sponsored Links
The 2021 Chevrolet Suburban made its big reveal early last month, dropping cover alongside the equally all-new 2021 Chevrolet Tahoe. Highlights for the next-gen ‘Burban include increases to the exterior dimensions and significant gains to interior dimensions, with more space for both people and things – exactly what’s needed from a big three-row SUV. However, the nitty gritty details reveal a few interesting insights, so we’re breaking down all the important sizing specs in this GM Authority Dimensional Brief.
2021 Chevrolet Suburban
2015-2020 Chevrolet Suburban
Exterior Dimensions
Let’s start with the exterior dimensions, where the all-new Chevrolet Suburban adds inches in nearly every single measurement. The biggest change is to the wheelbase, which sees a massive 4.1-inch increase, up to 134.1 inches. Chalk that up to the new architecture under the skin, which swaps the old model’s K2 platform for the new T1 platform.
Meanwhile, overall length was increased by 1.3 inches, overall width increased by 0.6 inches, and overall height increased by 1.3 inches.
The only exterior dimensions that saw a decrease with the next-gen model were the front and rear track, which are 0.2 inches and 0.4 inches narrower, respectively.
| Dimension | 2021 Chevrolet Suburban | Last-Gen Suburban | +/- 2021 Suburban |
|---|---|---|---|
| Wheelbase (in.) | 134.1 | 130 | +4.1 |
| Overall Length (in.) | 225.7 | 224.4 | +1.3 |
| Overall Width (in.) | 81.1 | 80.5 | +0.6 |
| Overall Height (in.) | 75.7 | 74.4 | +1.3 |
| Front Track (in.) | 68.5 | 68.7 | -0.2 |
| Rear Track (in.) | 68.3 | 68.7 | -0.4 |
| Dimension | 2021 Chevrolet Suburban | Last-Gen Suburban | +/- 2021 Suburban |
|---|---|---|---|
| Wheelbase (mm) | 3407 | 3302 | +105 |
| Overall Length (mm) | 5732 | 5697 | +35 |
| Overall Width (mm) | 2059 | 2045 | +14 |
| Overall Height (mm) | 1923 | 1890 | +33 |
| Front Track (mm) | 1741 | 1745 | -4 |
| Rear Track (mm) | 1734 | 1744 | -10 |
2021 Chevrolet Suburban

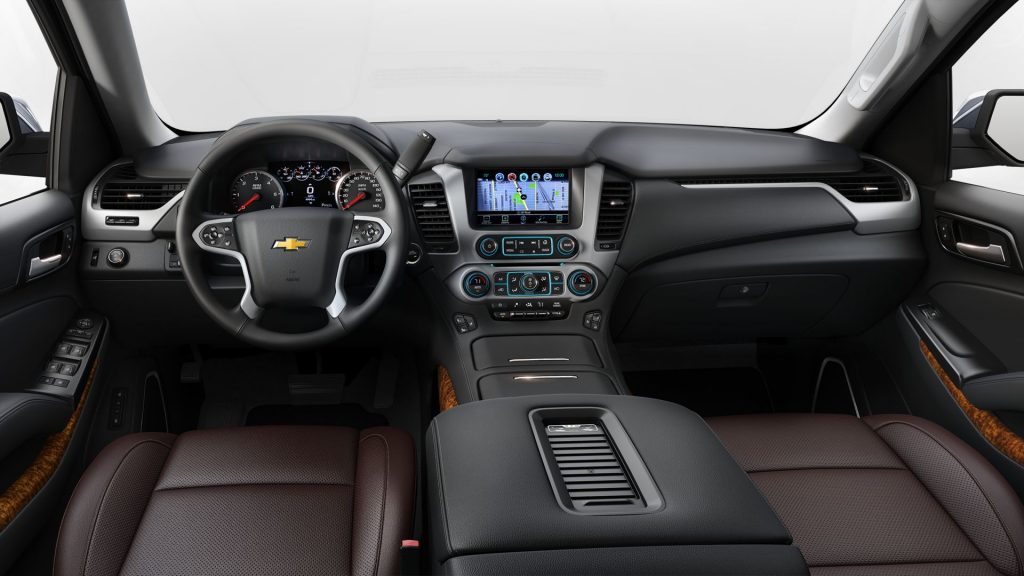

Last-Gen Chevrolet Suburban
Interior Dimensions
With larger exterior dimensions, one would assume the 2021 Chevrolet Suburban would see substantial increases to the interior dimensions as well. That assumption is mostly correct, although there are several measurements where the new Suburban actually loses room compared to the old model.
First, lets talk about gains. The big winners here are in second-row and third-row legroom, which see increases of 2.3 inches and 2.2 inches, respectively. First-row shoulder room is also up by 1.45 inches, while third-row shoulder room is up 1.15 inches. We also find the 2021 Chevrolet Suburban offering decent gains with regard to first- and third-row hip room, with an additional 0.2 inches and 0.7 inches, respectively.
However, the new Chevrolet Suburban also loses space in other measurements. For example, headroom is down for all three rows, while first-row legroom is down by 0.8 inches. Second-row hip room is also down by a small amount, losing 0.05 inches compared to the outgoing model.
| Dimension | 2021 Chevrolet Suburban | Previous-Gen Suburban | +/- 2021 Suburban |
|---|---|---|---|
| First Row Headroom (in.) | 42.3 | 42.8 | -0.5 |
| First Row Legroom (in.) | 44.5 | 45.3 | -0.8 |
| First Row Shoulder Room (in.) | 66.25 | 64.8 | +1.45 |
| First Row Hip Room (in.) | 61 | 60.8 | +0.2 |
| Second Row Headroom (in.) | 38.8 | 39.1 | -0.3 |
| Second Row Legroom (in.) | 42 | 39.7 | +2.3 |
| Second Row Shoulder Room (in.) | 65.25 | 65.1 | +0.15 |
| Second Row Hip Room (in.) | 60.25 | 60.3 | -0.05 |
| Third Row Headroom (in.) | 38.2 | 38.5 | -0.3 |
| Third Row Legroom (in.) | 36.7 | 34.5 | +2.2 |
| Third Row Shoulder Room (in.) | 63.75 | 62.6 | +1.15 |
| Third Row Hip Room (in.) | 50 | 49.3 | +0.7 |
| Dimension | 2021 Chevrolet Suburban | Previous-Gen Suburban | +/- 2021 Suburban |
|---|---|---|---|
| First Row Headroom (mm) | 1074 | 1087 | -13 |
| First Row Legroom (mm) | 1131 | 1151 | -20 |
| First Row Shoulder Room (mm) | 1683 | 1646 | +37 |
| First Row Hip Room (mm) | 1549 | 1544 | +5 |
| Second Row Headroom (mm) | 988 | 993 | -5 |
| Second Row Legroom (mm) | 1068 | 1008 | +60 |
| Second Row Shoulder Room (mm) | 1657 | 1654 | +3 |
| Second Row Hip Room (mm) | 1530 | 1532 | -2 |
| Third Row Headroom (mm) | 970 | 978 | -8 |
| Third Row Legroom (mm) | 933 | 876 | +57 |
| Third Row Shoulder Room (mm) | 1619 | 1590 | +29 |
| Third Row Hip Room (mm) | 1270 | 1252 | +18 |
2021 Chevrolet Suburban
Last-Gen Chevrolet Suburban
Cargo Dimensions
No doubt about it, cargo room is king in this segment, and the 2021 Chevrolet Suburban shows healthy increases behind all three rows. Most notably, cargo room behind the first row sees a massive 23 cubic-foot increase, although gains of 16.2 cubic-feet and 1.8 cubic-feet behind the second row and third row, respectively, are nothing to sneeze at either.
| Dimension | 2021 Chevrolet Suburban | Previous-Gen Suburban | +/- 2021 Suburban |
|---|---|---|---|
| Cargo Volume Behind First Row (cu. ft.) | 144.7 | 121.7 | +23 |
| Cargo Volume Behind Second Row (cu. ft.) | 92.9 | 76.7 | +16.2 |
| Cargo Volume Behind Third Row (cu. ft.) | 41.1 | 39.3 | +1.8 |
| Dimension | 2021 Chevrolet Suburban | Previous-Gen Suburban | +/- 2021 Suburban |
|---|---|---|---|
| Cargo Volume Behind First Row (L) | 4097 | 3446 | +651 |
| Cargo Volume Behind Second Row (L) | 2632 | 2172 | +460 |
| Cargo Volume Behind Third Row (L) | 1164 | 1113 | +51 |
