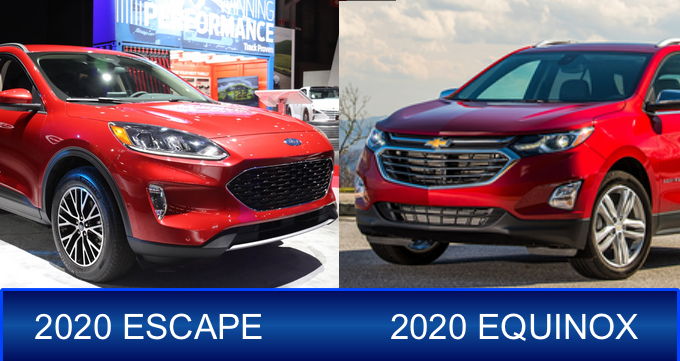

GM’s cross-town rival, the Ford Motor Company, debuted its fourth-generation 2020 Ford Escape earlier in 2019. The new compact crossover features a new design, fresh gasoline and hybrid engine options, less weight, and new dimensions as well. Slated to take on rivals like GM’s 2020 Chevrolet Equinox and 2020 GMC Terrain, we’re putting all the important sizing figures side-by-side in the following GM Authority Dimensional Brief.
2020 Ford Escape
2020 Chevrolet Equinox
2020 GMC Terrain
Exterior Dimensions
Outside, the new 2020 Ford Escape is wider, longer, and lower than the preceding third-generation model. However, compared to the Chevrolet Equinox and GMC Terrain, the latest Escape is shorter, wider, and taller. Let’s break down the specs by each GM model.
The Chevrolet Equinox offers an extra 0.6 inches of wheelbase and an extra 2.6 inches of overall length. The ‘Nox is also 1.5 inches narrower in terms of overall width, and 0.7 inches lower in terms of overall height. The front track is 0.2 inches narrower, while the rear track is 0.4 inches wider.
Meanwhile, the GMC Terrain offers 0.6 inches more wheelbase and an extra 1.8 inches in overall length, while the overall width is 1.7 inches narrower and the overall height is 0.7 inches shorter compared to the 2020 Ford Escape. The front track is 0.1 inches narrower, and the rear track is 0.7 inches wider.
| Dimension | Ford Escape | Chevrolet Equinox | GMC Terrain |
|---|---|---|---|
| Wheelbase (in.) | 106.7 | 107.3 | 107.3 |
| Overall Length (in.) | 180.5 | 183.1 | 182.3 |
| Overall Width (in.) | 74.1 | 72.6 | 72.4 |
| Overall Height (in.) | 66.1 | 65.4 | 65.4 |
| Front Track (in.) | 62.4 | 62.2 | 62.3 |
| Rear Track (in.) | 61.8 | 62.2 | 62.5 |
| Dimension | Ford Escape | Chevrolet Equinox | GMC Terrain |
|---|---|---|---|
| Wheelbase (mm) | 2710 | 2725 | 2725 |
| Overall Length (mm) | 4585 | 4652 | 4630 |
| Overall Width (mm) | 1882 | 1843 | 1839 |
| Overall Height (mm) | 1679 | 1661 | 1661 |
| Front Track (mm) | 1585 | 1580 | 1582 |
| Rear Track (mm) | 1570 | 1581 | 1587 |
2020 Ford Escape
Chevrolet Equinox
GMC Terrain
Interior Dimensions
Moving inside the cabin, the 2020 Ford Escape offers a healthy good amount of room to accommodate passengers, both up front, and on the rear bench.
Comparatively speaking, the Chevrolet Equinox offers less space nearly across the board. Up front, there’s 1.5 inches less legroom, 0.4 inches less shoulder room, and an inch less hip room. Front headroom matches the Escape at 40 inches. In back, the Equinox offers 0.8 inches less headroom, 0.8 inches less legroom, half an inch less shoulder room, and 1.6 inches less hip room.
It’s the same story with the GMC Terrain. While front headroom matches the other two vehicles at 40 inches, the Terrain is also down 1.5 inches in terms of front legroom, 0.4 inches for front shoulder room, and 0.8 inches for front hip room. The second row is down 0.8 inches in terms of headroom, an inch on legroom, 0.4 inches for shoulder room, and 1.5 inches for hip room.
As we previously reported, the new Escape is equipped with a sliding rear seat, while the current-generation Equinox and Terrain are not. That marks a significant about-turn, since the last-gen models of the GM crossovers had the sliding seat.
| Dimension | Ford Escape | Chevrolet Equinox | GMC Terrain |
|---|---|---|---|
| First Row Headroom (in.) | 40 | 40 | 40 |
| First Row Legroom (in.) | 42.4 | 40.9 | 40.9 |
| First Row Shoulder Room (in.) | 57.6 | 57.2 | 57.2 |
| First Row Hip Room (in.) | 55.2 | 54.2 | 54.4 |
| Second Row Headroom (in.) | 39.3 | 38.5 | 38.5 |
| Second Row Legroom (in.) | 40.7 | 39.9 | 39.7 |
| Second Row Shoulder Room (in.) | 56 | 55.5 | 55.6 |
| Second Row Hip Room (in.) | 53.3 | 51.7 | 51.8 |
| Dimension | Ford Escape | Chevrolet Equinox | GMC Terrain |
|---|---|---|---|
| First Row Headroom (mm) | 1016 | 1016 | 1016 |
| First Row Legroom (mm) | 1077 | 1040 | 1040 |
| First Row Shoulder Room (mm) | 1463 | 1453 | 1453 |
| First Row Hip Room (mm) | 1402 | 1377 | 1382 |
| Second Row Headroom (mm) | 998 | 977 | 970 |
| Second Row Legroom (mm) | 1034 | 1013 | 1008 |
| Second Row Shoulder Room (mm) | 1422 | 1410 | 1412 |
| Second Row Hip Room (mm) | 1354 | 1313 | 1316 |
2020 Ford Escape
Chevrolet Equinox
GMC Terrain
Cargo Dimensions
Looking over the cargo specs, we find the Ford Escape once again besting the two General Motors products, offering up more space behind the first row, and more space behind the second row.
Compared to the new Escape, the Equinox is down 1.5 cubic feet behind the first row and 7.6 cubic feet behind the second row. Meanwhile, the Terrain is down 2.1 cubic feet behind the first row and nearly 8 cubic feet behind the second row.
| Dimension | Ford Escape | Chevrolet Equinox | GMC Terrain |
|---|---|---|---|
| Cargo Volume Behind First Row (cu. ft.) | 65.4 | 63.9 | 63.3 |
| Cargo Volume Behind Second Row (cu. ft.) | 37.5 | 29.9 | 29.6 |
| Dimension | Ford Escape | Chevrolet Equinox | GMC Terrain |
|---|---|---|---|
| Cargo Volume Behind First Row (L) | 1852 | 1809 | 1792 |
| Cargo Volume Behind Second Row (L) | 1062 | 846 | 838 |
By the look of it, the 2020 Ford Escape does a better job at maximizing its interior space compared to the Chevrolet Equinox and GMC Terrain, given its smaller exterior dimensions compared to the two GM products.
