Katech Introduces New Oil Pump For GM LT Engines: Video

When you’re pushing hard on the racetrack, maintaining optimal engine oil pressure is critical. With that in mind, GM-performance specialist Katech is now offering a new oil pump for the GM LT engines, otherwise known as the fifth-generation of the GM Small Block.

According to Katech, the stock dry-sump oil system on GM LT engines has exhibited low oil pressure in high-output applications, otherwise known as when being tuned. When tested against the stock setup on a tuned 1,000-horsepower GM LT engine, the new Katech oil pump showed a 25 percent increase in oil pressure at 6,000 rpm, and a 45 percent increase in oil pressure at 3,000 rpm.

GM LT Engine Oil Pump - Katech - Graph - 001

The new Katech pump includes a modified pressure circuit, a unique billet 4140 steel gear, and new gear lobe geometry. Besides increased oil pressure performance, the new Katech pump also improves oil evacuation from the oil pan with a 54 percent increase in scavenge capacity compared to the stock setup. We think the piece looks pretty snazzy as well.

“If you are racing, or have a high-output LT engine, this would be the oil pump to have,” said lead engineer Eric Suits. “It will give you the peace of mind that your bearings, crank, rods, pistons and lifters are getting well oiled at adequate pressure.”

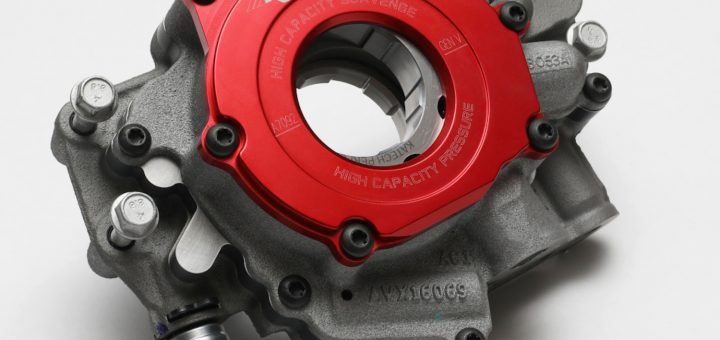

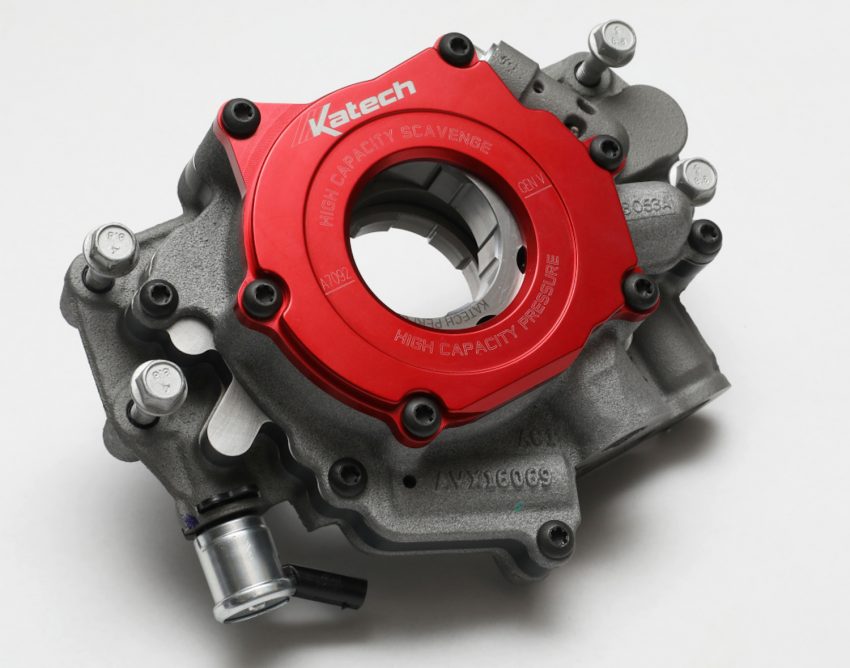

GM LT Engine Oil Pump - Katech - 003

The new Katech oil pump is designed to fit GM LT engines with dry-sump lubrication, specifically the LT1, LT4 and LT5. That makes it the perfect upgrade for race-ready models like the Chevrolet Corvette C7, Chevrolet Camaro SS and ZL1, as well as the third-generation Cadillac CTS-V.

GM LT Engines Compatible With Katech Oil Pump
Make Model Engine Horsepower (hp @ RPM) Torque (lb-ft @ RPM)
Chevrolet Corvette C7 LT1 455 @ 6,000 460 @ 4,600
Chevrolet Camaro SS LT1 455 @ 6,000 455 @ 4,400
Chevrolet Corvette Z06 LT4 650 @ 6,400 650 @ 3,600
Cadillac CTS-V LT4 640 @ 6,400 630 @ 3,600
Chevrolet Corvette ZR1 LT5 755 @ 6,400 715 @ 3,600

Some minor engine control recalibration may be required to make the Katech pump work properly with a given vehicle application. However, the pump will fit with either the stock engine cover or Katech’s billet VVT delete cover.

The new Katech GM LT engine oil pump can be found at KatechEngines.com. Pricing is listed at $899.99.

In addition to offering a variety of aftermarket performance parts, Katech is also known for its high-spec crate engines and complete vehicle packages. The Michigan-based firm has also provided engines to GM’s winning Corvette Racing team.

Subscribe to GM Authority for more Corvette news, Camaro news, CTS-V news and around-the-clock GM news coverage.

Jonathan is an automotive journalist based out of Southern California. He loves anything and everything on four wheels.
