The Chevy Colorado ZR2 is one of the most exciting pickup trucks on the market today. It’s off-road-ready without being impractical. You don’t have to compromise on comfort or features with the ZR2. To help owners personalize their pickups, Chevrolet Performance developed 15 new systems designed to increase the ZR2’s off-road capability. Many of the parts fit both diesel- and gas-powered trucks; however, there are a few regulated to just the gas-powered model.Â

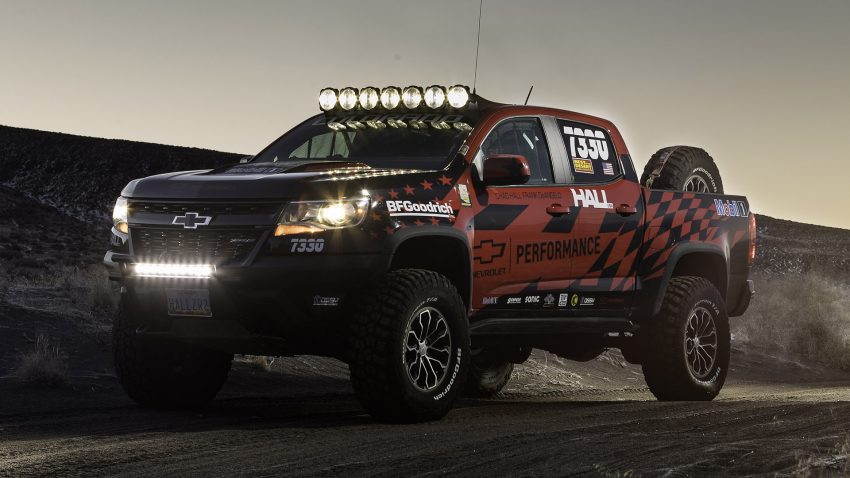

Chevy designed the parts in collaboration with Multimatic and Hall Racing.  Renowned off-road driver Chad Hall competed in a Colorado ZR2 equipped with these components to validate them in desert racing conditions. So while the Colorado ZR2 Bison will handle almost any off-road trail, these off-road racing parts can transform a standard ZR2 into a bona fide pre-runner.
If you want to take your ZR2 to the next level, then take a look at these 15 new upgrades. The parts go on sale between now and early 2019.
1. Colorado ZR2 1.5-inch Body Lift System – $937.50
The new lift system adds 1.5 inches of ground clearance to the already two-inch additional ground clearance added to the ZR2 over a standard Colorado. The system is only available on gas-powered ZR2s.Â
2. Colorado ZR2 Front Lift Kit w/High Angle Upper Control Arm Ball Joint System – $562.50
This system increases front lift by 1.25 inches, allowing for higher ground clearance, a leveled stance, and a steeper approach angle.Â
3. Colorado ZR2 High Angle Upper Control Arm Ball Joint System – $TBD
This enables greater upper ball joint articulation, which translates into increased front suspension travel.Â
4. Colorado ZR2 Front Long Travel DSSV Shocks – $4,187.50
The shocks increase suspension travel by 15 percent on all 2017 or newer Colorado ZR2 pickup trucks. The High Angle Upper Control Arm Ball Joint System is required.Â
5. Colorado ZR2 Rear Long Travel DSSV Shocks – $4,000.00
Adding these long travel Multimatic DSSV shocks to the rear of the truck increased suspension travel by 10 percent. The Long Travel Leaf Spring System is required.Â
6. Colorado ZR2 Long Travel Leaf Spring System – $3,312.50
This system replaces the stock ZR2 dual rate spring, relocating the rear axle. The system increases ride height by approximately 30 millimeters. Overall suspension travel is increased up to 11 inches when paired with the Long Travel DSSV Shocks.Â
7. Colorado ZR2 Anti-Wrap Link System – $1,218.75
The anti-wrap system helps prevent axle wrap under acceleration and braking, which improves suspicion control in extreme off-road conditions. The upgraded rear differential cover and Long Travel Rear Leaf Spring System is required. This is only available on gas-powered ZR2s.Â
8. Colorado ZR2 Jounce Striker/Leaf Spring Mount System – $2,062.50
This is designed to work with the Rear Jounce Shock System while maximizing the performance of the Long Travel Leaf System. It works by reducing the clamp length of the leaf spring pack, reducing stress while increasing performance.Â
9. Colorado ZR2 Cross Car Beam System – $575.00
The Cross Car Beam, only available on gas-powered ZR2s, helps counteract loads from the Rear Jounce Shock System.Â
10. Colorado ZR2 Front Jounce Shock System – $1,231.25
This is a secondary suspension bump shock, enhancing gross vehicle motion control, increased suspension bump capacity, and provides bottoming protection in extreme off-road conditions.Â
11. Colorado ZR2 Rear Jounce Shock System – $1,543.75
This is a secondary suspension bump shock, enhancing gross vehicle motion control, increased suspension bump capacity, and provides bottoming protection in extreme off-road conditions.
12. Colorado ZR2 Tie Rod Sleeve System – $237.50
This helps increase buckling strength for off-road, severe duty, and race conditions without replacing stock tie rods.Â
13. Colorado ZR2 Rear Differential Cover – $687.50
This is an aluminum cover that provides a mounting platform for the Anti-Wrap Bar System. It features a unique Chevrolet Performance logo plate.Â
14. Colorado ZR2 Steel Driveshaft – $518.75
The 3.5-inch diameter steel driveshafts offers superiors resistance to impact damage during off-road conditions while helping increase clearance over obstacles. It has a max driveshaft speed of 5,000 rpm.Â
15. Colorado ZR2 Ball Spline Half Shafts – $TBD
These allow for larger joint angles over standard ZR2 half shafts, which help reduce feedback forces through the steering system during off-road events and hard cornering.Â
