Note: A previous version of this article implied that no sort of electric pad wear sensor/switch had ever been used in a GM product before the 2019 Cadillac CT6, which is incorrect. It has been edited accordingly.

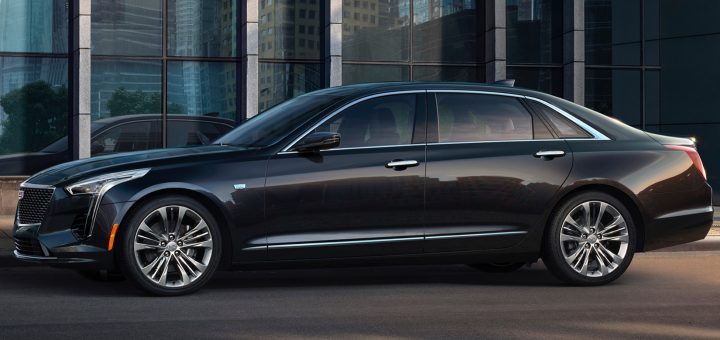

For 2019, the full-size Cadillac CT6 luxury sedan is getting a new electric brake pad wear sensor system, standard on models equipped with the new eBoost electro-hydraulic brake booster. That includes cars equipped with either the 2.0-liter turbo I4 LSY or 4.2-liter twin-turbo V8 LTA “Blackwing”.
Electric brake pad wear sensors have been around for more than four decades, generally being especially common on German cars. They’re quite simple in design, featuring a conductive metal loop that sits within the pad, carrying a small current during vehicle operation. As the pad wears, that loop is exposed to – and worn by – the brake rotor, increasing the resistance and causing a dummy light on the dash to illuminate, letting the driver know it’s time to change pads.
More sophisticated, modern electric pad wear sensors contain two loops at different depths, allowing the vehicle to estimate the remaining pad life – not just warn the driver after a pad change is already due.
The 2019 Cadillac CT6 represents the first known use of this electric brake wear sensor system, getting its own never-before-seen RPO code, and the sensors’ ability to estimate the level of pad wear could play an important role in helping the eBoost system perform.
Many vehicles from GM and other automakers use neither the more modern wear-estimating system, nor its simpler dummy light precursor, relying instead upon noise-making clips that screech against the brake rotor once a brake pad has worn sufficiently to warrant replacement. That system is simple, inexpensive, and annoying enough to bring most owners in to the shop.
Whether a car uses a noise-making pad wear indicator, or a modern electric sensor like the latest Cadillac CT6, the devices are single-use only; they become worn out and require replacement with every pad change. Thankfully, neither sort is typically all that expensive, and Cadillac has made an effort to keep the cost as low as possible by implementing just two electric pad wear sensors on the CT6: one at the front left corner, and one at the rear right.
Check back regularly with GMAuthority for all the latest Cadillac CT6 news.
Comments
Your article is 100 percent incorrect. C7 corvettes have wear sensors with certainty, which predates this car by 5 years. Some c6 as well, I believe the carbon ceramic cars
The old Cadillac Catera had them too
So now this is at least 22 years out of date (1997 Catera). Can anyone go back further?
FAKE NEWS! 😉
GM Plans Vacuum-Free Braking in Next-Gen Trucks, Sources Say. Mar 04, 2016
Industry sources say the first application is General Motors’ next-generation fullsize pickup trucks and SUVs.
https://www.wardsauto.com/technology/gm-plans-vacuum-free-braking-next-gen-trucks-sources-say
Although the GM truck and SUV braking program represents a massive contract, ZF TRW will not be the first in the market with such a system.
https://www.just-auto.com/interview/continental-automotive-on-market-and-technical-trends-in-the-electronic-braking-system-sector-qa_id167428.aspx
Hopefully ZF has sorted out all the problems with the new systems.
https://www.auto123.com/en/news/gm-recall-braking-issue-cadillac-gmc-chevrolet/65105/
To my knowledge, GM Authority doesn’t have reporters embedded within General Motors. So they, like other auto journalists, lean heavily on other sources for content. Those sources can be other news outlets, suppliers, and sometimes official GM press releases, for example.
Sometimes GM Authority’s sources get their facts wrong, sometimes it’s entirely on GM Authority for misstating facts. But it’s not the end of the world. And knowing something that the writer does not doesn’t invalidate all of the reporting that writer does, or that the site puts out.
Keep in mind also that, unlike world events, which are easy to document and fact-check, GM Authority often reports on small details or little tidbits of information, which makes fact-checking that much more difficult.
I’m not trying to kiss up. I’m thankful when people point out mistakes and bring facts to light. Sometimes criticism is definitely warranted; but sometimes the flak the writers get here is not.
I agree in many ways, but this article is a sham. If the information was taken from a Caddy press release, then shame on GM. But when the author states that they “scoured the internet for evidence of prior use”????? LOL. This is journalism at its worst.
Try Googling “GM brake wear sensor”. The entire first page is links to websites selling wear sensors for GM cars.
