And Now, The Preliminary Specs Of The 2017 Chevrolet Bolt EV

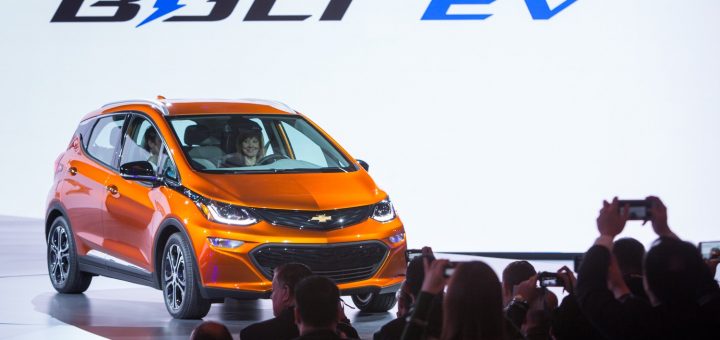

Having debuted the 2017 Chevrolet Bolt EV, Chevrolet has now released preliminary specifications of the subcompact EV. A few items of interest include:

  • Steel and aluminum construction
  • Battery system contains 288 cells with an 8-year, 100,000-mile warranty for a 200-mile range
  • Electric drive unit makes 200 horsepower and 266 pound-feet of torque for a final drive ratio of 7.05:1
  • Using the SAE Combo DC Fast charger, can gain a 90-mile range in 30 minutes
  • 0-60 mph in under 7 seconds on to a top speed of 91 mph (145 kph)
  • Michelin Energy Saver A/S all-season tires
  • 3,580-pound (1,625 kg) curb weight

In addition, we find it interesting that Chevrolet is categorizing the Bolt EV as a crossover, specifically a “five-passenger, five-door all-electric CUV”.

But without any further ado, here are the preliminary Chevy Bolt EV specifications:

2017 Chevrolet Bolt EV Overview

Model: Chevrolet Bolt EV
Body style: five-passenger, five-door all-electric CUV
Driveline: front-wheel-drive
Construction: Steel and Aluminum
EPA vehicle class: Small Wagon (EPA does not have a cross-over category)
Key competitors: Nissan Leaf, BMW i3, Ford Focus Electric, Kia Soul EV, VW eGolf, Mercedes-Benz B-Class Electric
Manufacturing location: Orion Township, Michigan, USA
Battery manufacturing location: Incheon, South Korea
Motor and drive unit manufacturing location: Incheon, South Korea

2017 Chevrolet Bolt EV Battery System

Type: rechargeable energy storage system comprising multiple linked modules
Volume/case: 285L
Mass (lb / kg): 960 / 435
Battery chemistry: lithium-ion
Thermal system: liquid active thermal control
Cells: 288
Electric driving range: more than 200 miles (GM estimate pending final tests)
Energy: 60 kWh
Warranty: 8 years / 100,000 miles

2017 Chevrolet Bolt EV Electric Drive

Type: single motor and gearset
Motor: permanent magnetic drive motor
Power (hp / kW): 200 /150
Torque: (lb-ft / Nm): 266 / 360
Final drive ratio (:1): 7.05:1

2017 Chevrolet Bolt EV Charging Times

120 V: available with standard cord
240 V: 50 miles of range in less than 2 hours
SAE Combo DC Fast Charge: 90 miles in 30 minutes

2017 Chevrolet Bolt EV Performance

Top speed (mph / kph): 91 / 145
0-30 mph: 2.9s (75% SoC) *
0-60 mph: Under 7 seconds

2017 Chevrolet Bolt EV Chassis & Suspension

Front: Independent MacPherson strut-type front suspension with side load compensating and finely tuned springs, direct-acting solid stabilizer bar system and ride & handling oriented LCA bushings.
Rear: Compound crank (torsion beam) type rear suspension with the closed section V-shaped profile axle; specifically tuned coil springs, performance balanced shock absorber, angled A-bushing supporting understeer tendency on cornering maneuver and kinematically optimized torsion beam providing stable and best ride & handling performance.
Chassis control: Four-channel ABS; Traction control system; StabiliTrak; Drag control
Steering type: column-mounted electric power steering
Steering ratio: 16.8 :1

2017 Chevrolet Bolt EV Brakes

Type: power four-wheel disc with ABS; electro-hydraulic; partially regenerative; dynamic rear brake proportioning
Brake rotor diameter front (mm / in): 276 / 10.8
Brake rotor diameter rear (mm / in): 264 / 10.4
Total swept area (front) (cu cm): 1398.9
Total swept area (rear) (cu cm): 1131.4

2017 Chevrolet Bolt EV Wheels & Tires

Wheel size and type: 17 inches x 6.5J offset 44, cast aluminum
Tires: Michelin Energy Saver A/S 215/50R17 all-season

2017 Chevrolet Bolt EV Exterior Dimensions

Wheelbase (in / mm): 102.4 / 2600
Overall length (in / mm): 164.0 / 4166
Overall width (in / mm): 69.5 / 1765
Track width front (in / mm): 1500.92 mm
Track width rear (in / mm): 1501.05 mm
Height (in / mm): 62.8 / 1594
Front overhang (in / mm): 32.9 / 836
Rear overhang (in / mm): 28.7 / 730

2017 Chevrolet Bolt EV Interior Dimensions

Seating capacity (front / rear): 2 / 3
Headroom (first row) (in. / mm): 39.7 / 1009
Headroom (second row) (in. / mm): 37.9 / 962
Shoulder room (first row) (in / mm): 54.6 / 1387
Shoulder room (second row) (in / mm): 52.8 / 1340
Hip room (first row) (in / mm): 51.6 / 1310
Hip room (second row) (in / mm): 50.8 / 290
Legroom (first row) (in / mm): 41.6 / 1056
Legroom (second row) (in / mm): 36.5 / 927
Cargo volume (cu ft / L): 16.9 / 478
Passenger volume (first row) (cu ft / L): 52.2 / 1478
Passenger volume (second row) (cu ft / L): 42.2 / 1195

2017 Chevrolet Bolt EV Capacities

Curb weight (lb / kg); 3580 / 1625
Heating cooling (qt / L): Heating loop 1.8L
Battery pack cooling (qt / L): 6.9L (RESS cooling loop total coolant volume)
Power electronics cooling (qt / L): 3.9L (PE & DU cooling loop total coolant volume)
Drive unit fluid (qt / L): 2.9L
[nggallery id=797]
