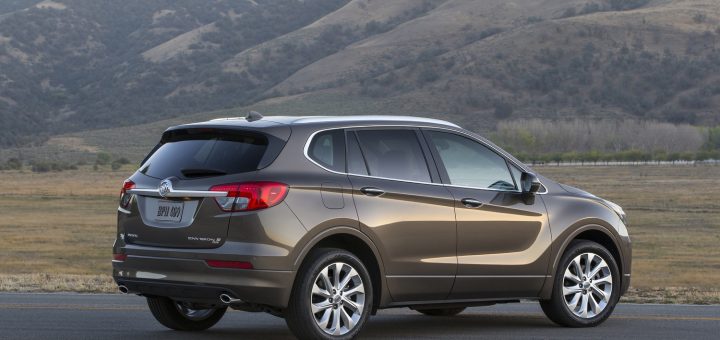

And Now, The Preliminary Specifications Of The 2016 Buick Envision

Having finally confirmed the Envision for the North American market less than an hour ago, Buick also released preliminary specifications of the crossover. Though we already had some specs of the Envision sold in China, this is the first time that we have seen them for the new North American-market model.

The 2016 Buick Envision specs tell us a few notable things:

  • The Envision will be offered exclusively with the 2.0L Turbo I4 LTG engine making an estimate 252 horsepower and 260 pound-feet of torque.
  • It rides on GM’s global D2XX platform (according to us, not the specs), so the engine is transversely-mounted, and sends power to the front wheels as standard; a fancy, active twin clutch all-wheel drive system will be available.
  • Though marketed in China as a midsize crossover, the Envision’s 183.7-inch length places it squarely in the compact space, being slightly shorter than the Chevrolet Equinox and GMC Terrain. If you weren’t sure of it before, you should be now.
  • The Envision will have front-drive-based compact luxury crossovers directly in its crosshairs: Acura RDX, Audi Q5, Lincoln MKC, Lexus NX, Volvo XC60.
  • The Envision makes the first time that a crossover will have the HiPer Strut front suspension.
  • The specs list 19-inch aluminum wheels as the only wheel choice, though it’s possible that smaller wheels will be offered on more basic trim levels.
  • Yes, it will be built in and imported from China; Yantai, to be exact.

2016 Buick Envision Overview

Model: 2016 Buick Envision
Body style: four-door, five-passenger compact crossover
Driveline: front engine transaxle, all-wheel drive
Construction: steel body frame integral (unibody) with front and rear crumple zones; galvanized steel front fenders, roof, door panels, one-piece bodyside outer panel, aluminum hood, thermal plastic olefin (TPO) bumper fascias
EPA vehicle class: SUV
Manufacturing location: Yantai, China
Key competitors: Acura RDX, Audi Q5, Lincoln MKC, Lexus NX, Volvo XC60

2016 Buick Envision Engine

Engine: Ecotec 2.0L DOHC I4 VVT DI Turbocharged
Production code: LTG
Displacement (cu. in. / cc): 122 / 1998
Bore & stroke (in. / mm): 3.39 x 3.39 / 86 x 86
Block material: cast aluminum
Cylinder head material: cast aluminum
Valvetrain: DOHC, four-valves per cylinder,
continuously variable valve timing
Valve lifters: hydraulic roller finger follower
Ignition system: coil-on-plug
Fuel delivery: high-pressure direct injection and electronic throttle control
Compression ratio: 9.5:1
Horsepower
(hp / kW @ rpm): 252 / 186 (est.)
Torque
(lb.-ft. / Nm @ rpm): 260 / 353 (est.)
Recommended fuel: premium recommended but not required
Max. engine speed
(fuel cut-off): 6800 rpm
Emissions controls: close-coupled, catalytic converter, positive crankcase ventilation; evaporative system
Additional Features: Extended-life spark plugs,Extended-life coolant
EPA-estimated fuel economy (city / hwy) TBD

2016 Buick Envision Transmission

Transmission: Hydra-Matic 6T70
Type: six-speed transverse, electronically controlled, automatic overdrive
Application: standard
Gear ratios (:1):
First: 4.48
Second: 2.87
Third: 1.84
Fourth: 1.41
Fifth: 1.00
Sixth: 0.74
Reverse: 2.88
Final Drive: 3.17

2016 Buick Envision Chassis & Suspension

Front: Specifically tuned coil springs, direct-acting stabilizer bar (hollow); hydraulic ride bushings; HiPer Strut suspension
Rear: Four-link independent rear with hollow stabilizer bar
Traction control: all-speed using engine torque reduction and brake intervention
Steering type: electric rack-and-pinion power-assisted with cross-wind stabilization and road-shake stabilization
Steering wheel turns lock-to-lock: 2.67
Turning circle, curb-to-curb (ft / m): 39.5 / 12
Steering ratio: 15.6 to 1

2016 Buick Envision Brakes

Type: four-wheel disc withABS and electronic stability control
Brake rotor diameter – front (in / mm): 12.6 /321
Brake rotor diameter – rear (in / mm): 12.4 / 315

2016 Buick Envision Wheels & Tires

Wheel size and type: 19-inch aluminum
Tires: 235/50R19 AL3

2016 Buick Envision Exterior Dimensions

Wheelbase (in / mm) : 107.9 / 2740
Overall length (in / mm): 183.7 / 4666
Overall width (in / mm): 72.4 / 1839
Overall height (in / mm): 66.8 / 1697
Front track (in / mm): 1575 / 62
Rear track (in / mm): 1575 / 62

2016 Buick Envision Interior Dimensions

Seating capacity (front / rear): 2 / 3
Headroom (front) (in / mm): 39.96 / 1015
Headroom (rear) (in / mm): 38.5 / 977
Legroom (front) (in / mm): 40.9 / 1040
Legroom (rear) (in / mm): 37.5 / 952
Shoulder room (front) (in / mm): 57.0 / 1448
Shoulder room (rear) (in / mm): 55.8 / 1417
Hip room (front) (in / mm): 54.4 / 1381
Hip room (rear) (in / mm): 53.1 / 1348
EPA passenger volume (cu ft / L) : 100.6 / 2849
EPA interior volume (cu ft / L): 127.5 / 3610.6
Cargo volume (behind rear seat) (cu ft / L): 26.9 / 761
Cargo volume (rear seat folded) (cu ft / L): 57.3 / 1622

2016 Buick Envision Capacities

Fuel tank (gal / L): 17.3 / 65.5
Engine oil (qt / L): 6.0 / 5.7
Curb weight (lb / kg): 4047 / 183
Trailering rating (lb / kg): 1500 / 680
