And Now, The Preliminary Specifications Of The 2016 Chevy Camaro
14
Sponsored Links

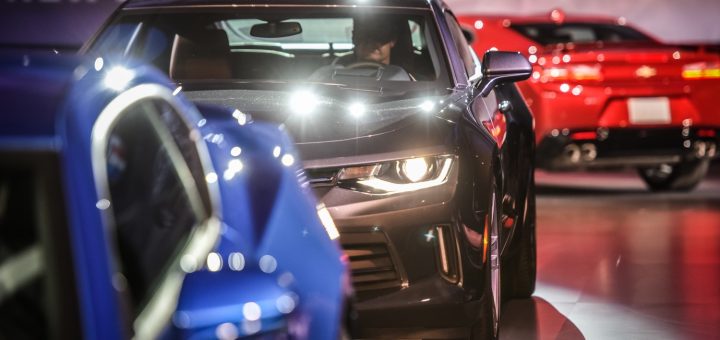

Chevrolet has published the preliminary specifications of the all-new 2016 Camaro it unveiled yesterday. The specs aren’t entirely complete, as they’re missing details such as fuel economy, most of the interior measurements, and curb weight. Nevertheless, they still provide a healthy idea of how the new Camaro looks on paper. So, have at it.
Overview
| Body style / driveline: | four-passenger, front-engine, rear-drive coupe |
| Construction: | unitized body frame, one- and two-sided galvanized steel |
| EPA vehicle class: | coupe |
| Manufacturing location: | Lansing, Michigan, USA |
2016 Camaro Engines
| Engine: | 2.0L Turbocharged I4 LTG | 3.6L V6 LGX | 6.2L V8 LT1 | |
|---|---|---|---|---|
| Displacement (cu in / cc): | 122 / 1998 | 222 / 3640 | 376 / 6162 | |
| Bore & stroke (in / mm): | 3.39 x 3.39 / 86 x 86 | 3.74 x 3.37 / 95 x 85.6 | 4.06 x 3.62 / 103.25 x 92 | |
| Block material: | cast aluminum w/ cast-in-place iron bore liners | cast aluminum w/ cast-in-place iron bore liners | cast aluminum w/ cast-in-place iron bore liners | |
| Cylinder head material: | cast aluminum | |||
| Valvetrain: | DOHC, four valves per cylinder, continuously variable valve timing | DOHC, four valves per cylinder, continuously variable valve timing with Active Fuel Management | OHV, two valves per cylinder, Active Fuel Management | |
| Fuel delivery: | direct high-pressure fuel injection | |||
| Compression ratio: | 9.5:1 | 11.5:1 | 11.5:1 | |
| Horsepower (hp / kW @ rpm): | 275 / 205 @ 5600* | 335 / 250 @ 6800* | 455 / 339 @ 6000* | |
| Torque (lb-ft / Nm @ rpm): | 295 / 400 @ 3000-4500* | 284 / 385 @ 5300* | 455 / 617 @ 4400* | |
| *SAE Certified | ||||
2016 Camaro Transmissions
| Transmission: | Tremec TR3160 6-speed manual (2.0T and 3.6L) | Tremec TR6060 6-speed manual with Active Rev Match (6.2L) | Hydra-Matic 8L45 8-speed automatic (2.0L and 3.6L) | Hydra-Matic 8L90 8-speed automatic (6.2L) | |
|---|---|---|---|---|---|
| Gear ratios (:1): | |||||
| First: | 4.40 | 2.66 | 4.62 | 4.56 | |
| Second: | 2.59 | 1.78 | 3.04 | 2.97 | |
| Third: | 1.80 | 1.30 | 2.07 | 2.08 | |
| Fourth: | 1.34 | 1.00 | 1.66 | 1.69 | |
| Fifth: | 1.00 | 0.74 | 1.26 | 1.27 | |
| Sixth: | 0.75 | 0.50 | 1.00 | 1.00 | |
| Seventh: | – | – | 0.85 | 0.85 | |
| Eighth: | – | – | 0.66 | 0.65 | |
| Reverse: | 3.99 | 2.90 | 3.93 | 3.82 | |
| Final drive ratio: | 3.27 | 3.73 | 3.27 (2.0L) / 2.77 (3.6L) | 2.77 | |
2016 Camaro Chassis, Suspension, Brakes
| Front: | MacPherson-type strut with dual lower ball joints, twin-tube struts and direct-acting stabilizer bar; Magnetic Ride Control with monotube inverted struts (available on SS) |
| Rear: | independent five-link with twin-tube shocks and direct-acting stabilizer bar; Magnetic Ride Control with monotube shocks (available on SS) |
| Steering type: | ZF rack-mounted electric, power-assisted and variable ratio |
| Brakes: | four-wheel disc with four-channel ABS/TCS and DRP |
2016 Camaro Exterior Dimensions
| Wheelbase (in / mm): | 110.7 / 2811 |
| Overall length (in / mm): | 188.3 / 4784 |
| Overall width (in / mm): | 74.7 / 1897 |
| Overall height (in / mm): | 53.1 / 1348 |
| Front Track SS: | 63 / 1601 |
| Rear Track 2.0T & V6 (in / mm): | 63.7 / 1617 |
| Rear Track SS: | 62.9 / 1598 |
2016 Camaro Interior Dimensions
| Headroom (in / mm): | 36.6 / 930 (front) |
| Legroom (in / mm): | 42.6 / 1083 (front) |
- Sweepstakes Of The Month: Win a 2023 Corvette Z06 Convertible. Details here.
Sponsored Links
in powertrain the 6.2 lt1 valvetrain is listed as dohc, it should be ohv
Thanks aaron. Fixed.
curb weight ?!?!?
Read the first paragraph.
455hp
*We both didn’t read.
Sure starting to look like an Impala.
Turbo 4 has more torque at a much lower RPM than the V6. Can’t wait to see performance figures.
MPG for each?
I was really hoping the Camaro shared the wheelbase with the CTS.
The 2.3 Ecoboost Mustang have 310hp, more power.
Yeh..but hoo wants a 4 cyl? It should be a standard entry level base secretaries car.
If Ford is smart they will make there ecoboost the base entry level and up the V6 to compete with the Camaro. Making a 4 banger the mid model was a stupid decision on Fords part. Lee Iacoca could tell you that.
What rear axles do they come with? 2015 with the V6 manual trans comes with a limited slip. Is his the same for the 2016?
It’s turboed and if it’s anything like the 2.0l ecotecs it will be cheap to get 400 hp and torque. But being a camero I’m hoping for better built parts.
